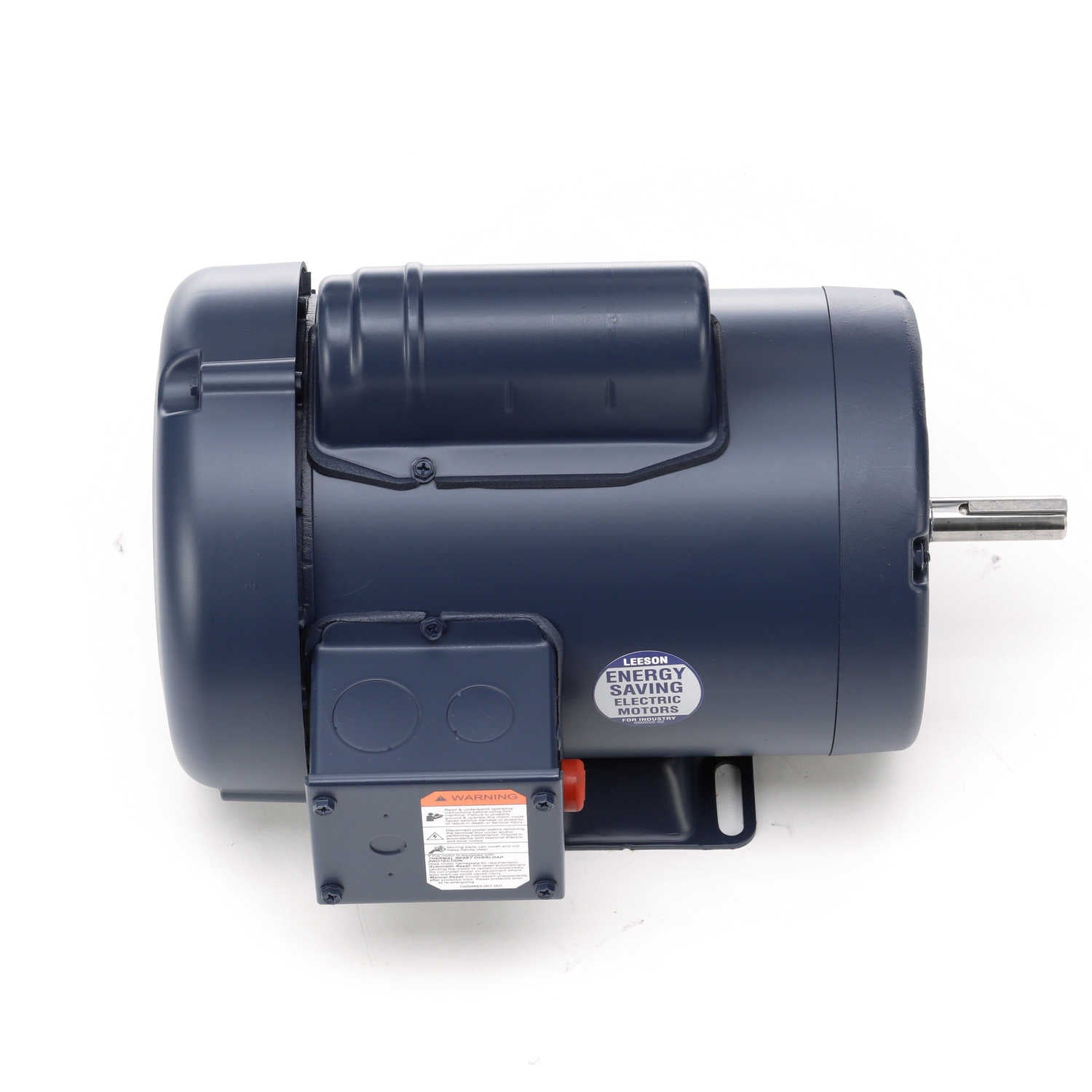

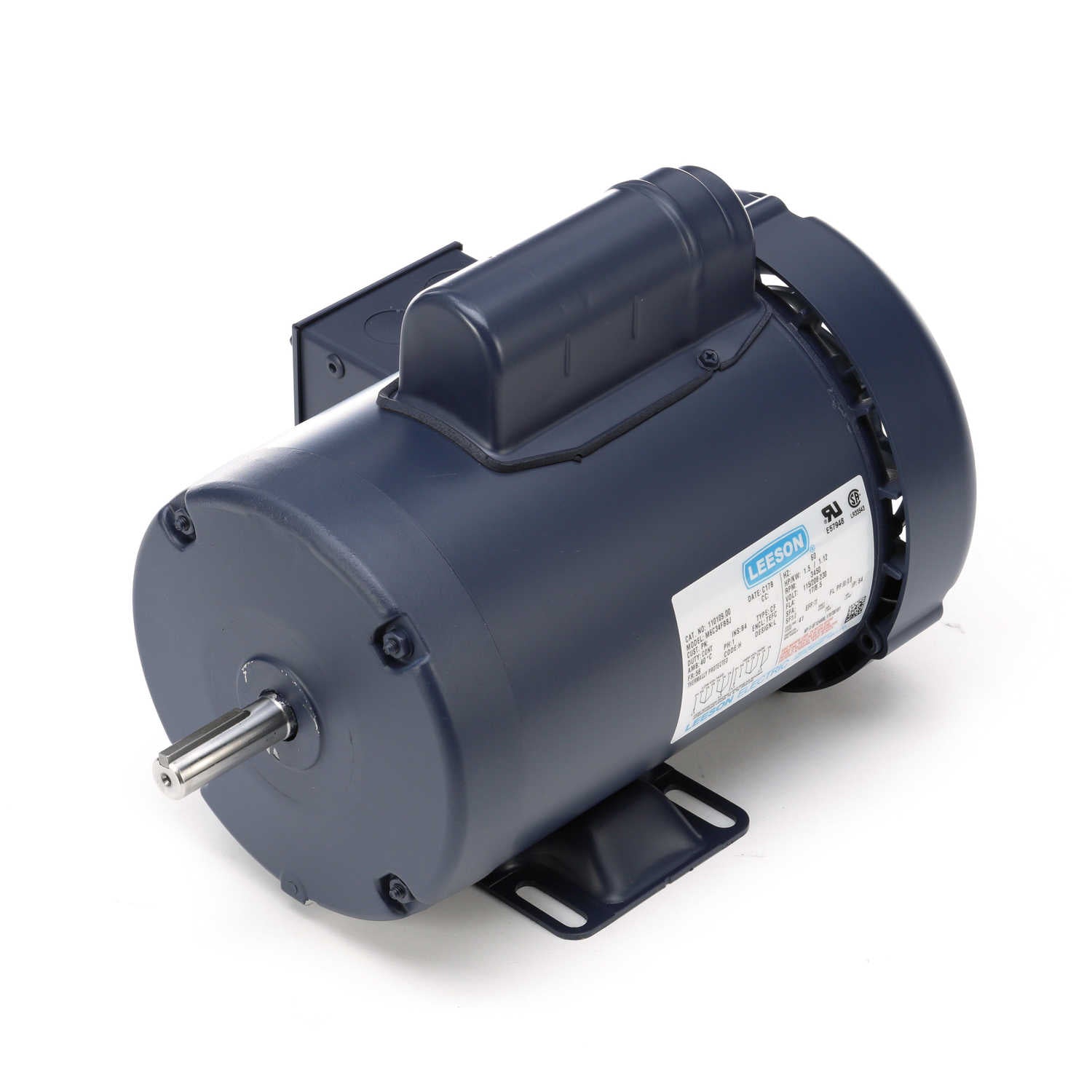

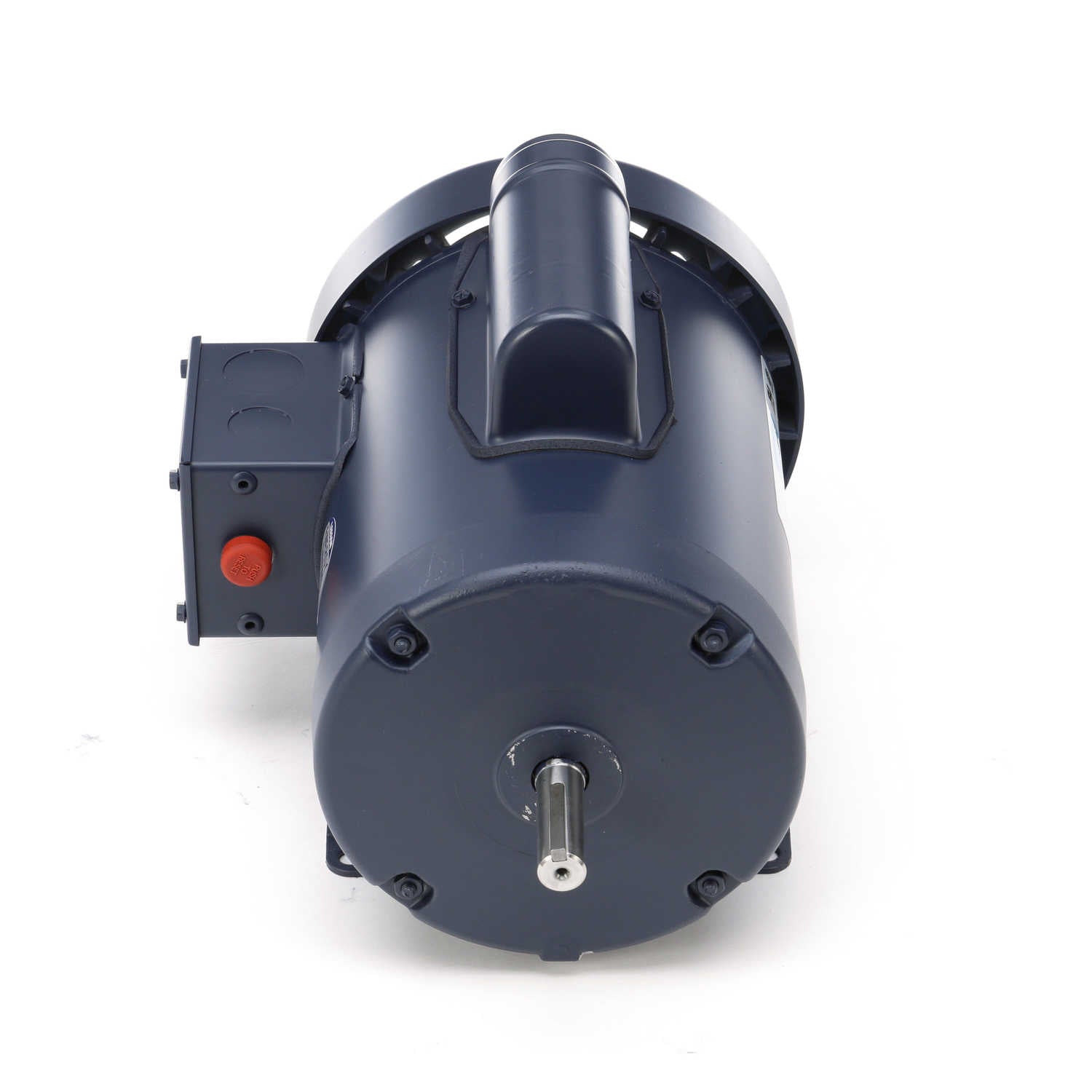

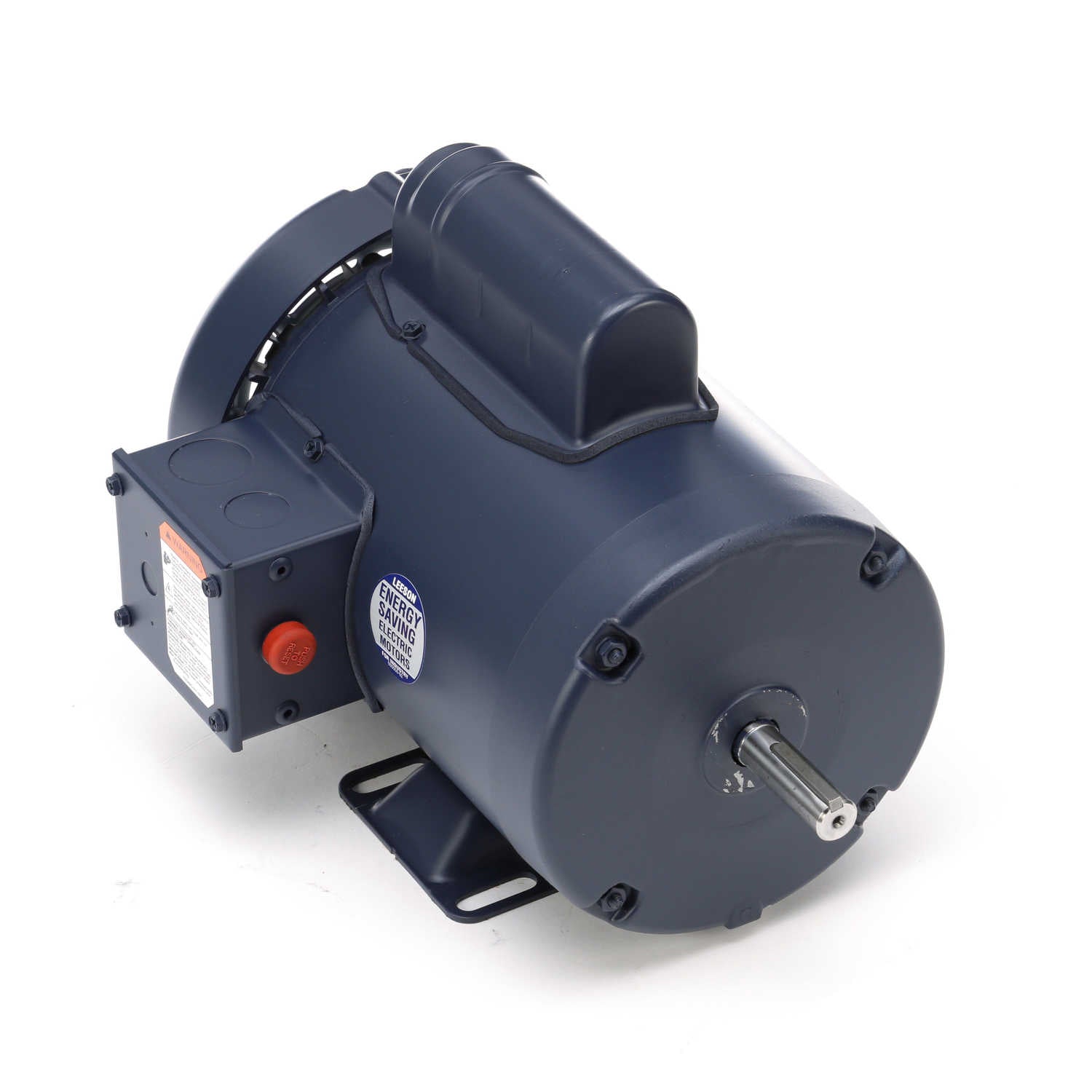

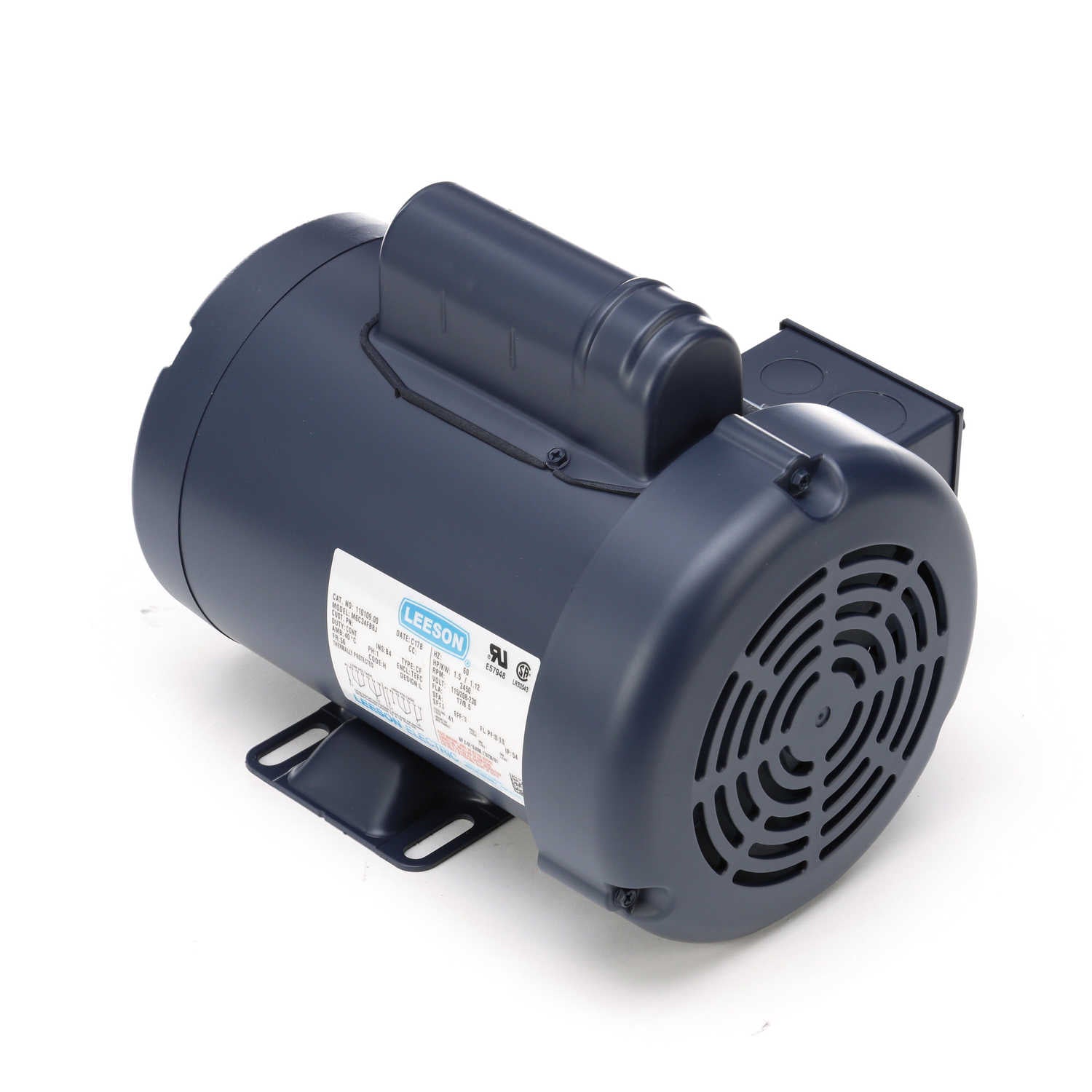

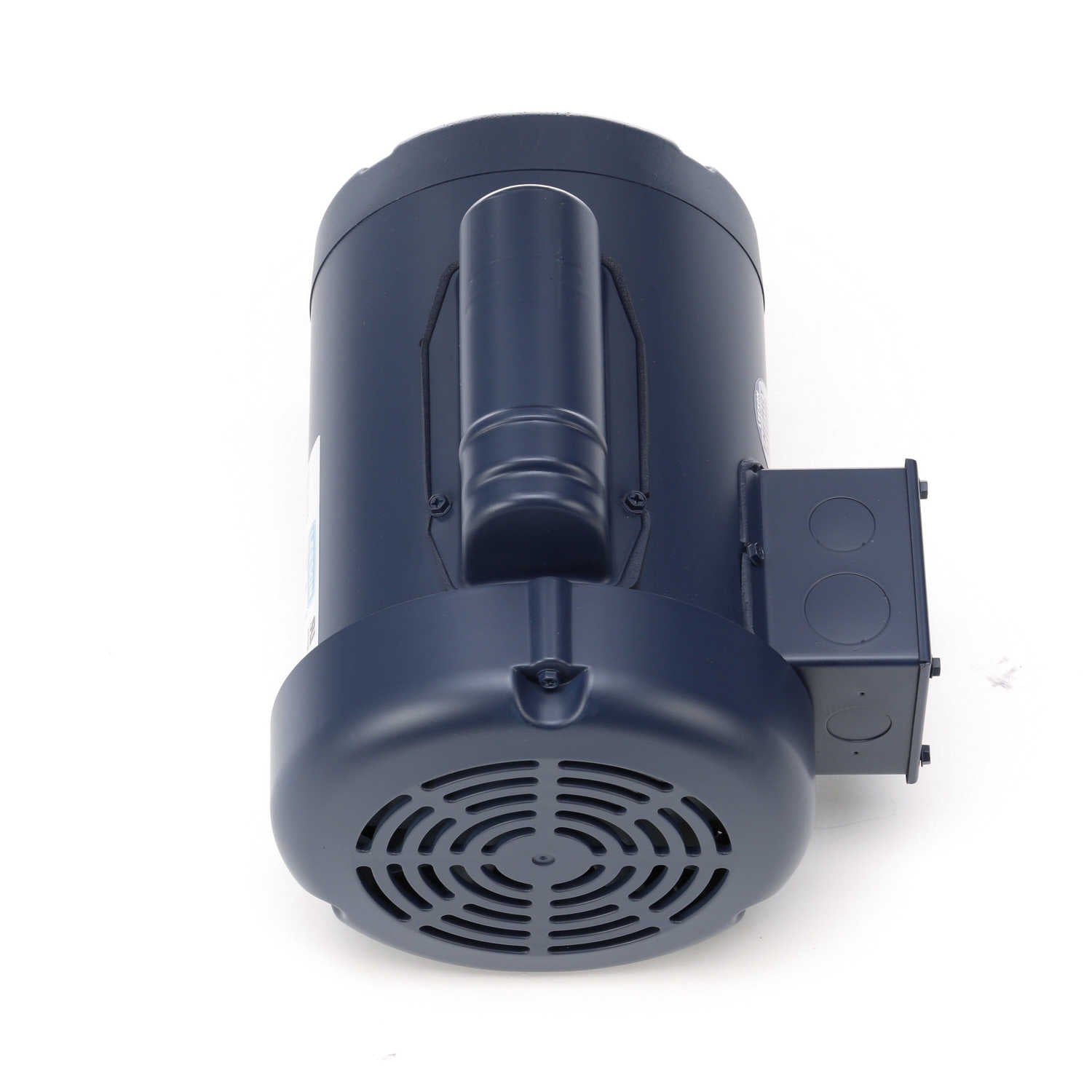

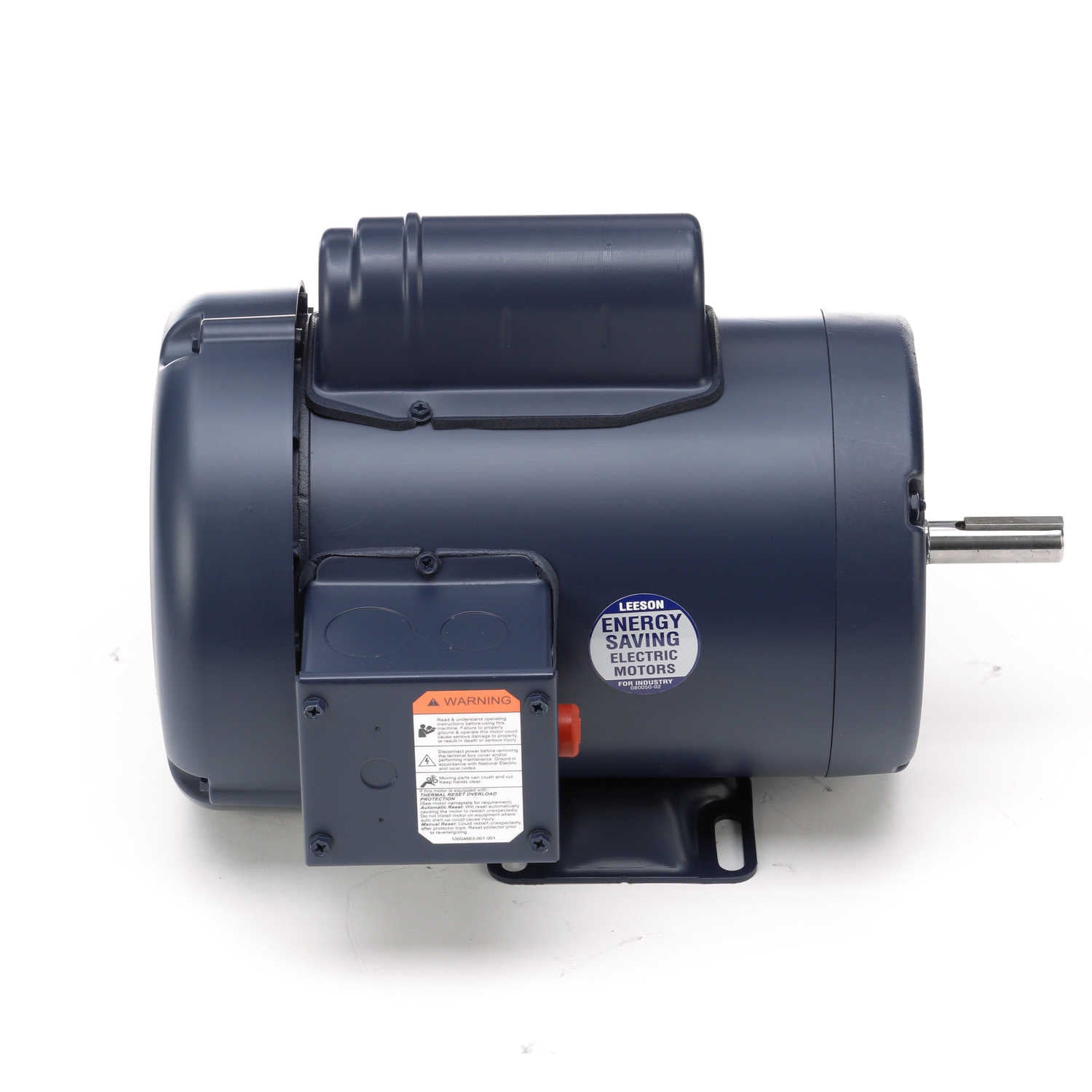

Features
Features
- Double shielded ball bearings
- Dynamically balanced rotors
- NEMA ® Design B performance
- Continuous Duty
- Meets or exceeds NEMA service factors
- Fully gasketed
General Specifications
General Specifications
| Model : | M6C34FB8J | Catalog No : | 110109.00 |
| Part Description : | ..1 1/2HP..3450RPM.56.TEFC.115/208-230V.1PH.60HZ.CONT.40C.1SF.RIGID.M6C34FB8J.....GENERAL PURPOSE.MANUAL....... | Category : | Totally Enclosed Fan Cooled (TEFC) |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 1.50 HP | Output KW : | 1.1 kW |
| Frequency : | 60 Hz | Voltage : | 115/208-230 V |
| Current : | 17.0/9.0-8.5 A | Speed : | 3450 RPM |
| Service Factor : | 1 | Phase : | 1 |
| Efficiency : | 72 % | Duty : | Continuous |
| Insulation Class : | B | Design Code : | L |
| KVA Code : | H | Frame : | 56 |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | Manual |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 54 |
Technical Specifications
Technical Specifications
| Electrical Type : | Capacitor Start Induction Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Selective Counterclockwise |
| Mounting : | Rigid base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 12.48 in | Frame Length : | 7.00 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720007860 |
| Weight : | 34.00 LB |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 8.50 | 2.25 | 100.0 | 3,454 | 1.50 | |||
| Break-Down | 0.00 | 5.60 | 249.0 | 3,000 | 1.50 | |||
| Locked-Rotor | 46.00 | 5.50 | 244.0 | 0 | 1.50 | |||
| Pull-Up | 0.00 | 5.30 | 236.0 | 2,800 | 1.50 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 4.67
- 0.259
- 0.0
- 24.1
- 3,598
- 0.00
- 25 %
- 5.07
- 0.536
- 52.9
- 46.0
- 3,561
- 0.56
- 50 %
- 5.89
- 0.850
- 66.1
- 62.7
- 3,530
- 1.12
- 75 %
- 7.05
- 1.191
- 70.5
- 73.5
- 3,496
- 1.69
- 100 %
- 8.45
- 1.555
- 72.0
- 80.0
- 3,454
- 82.0
- 2.28
- 125 %
- 9.52
- 1.813
- 71.1
- 82.8
- 3,424
- 2.65
- 150 %
- 10.33
- 2.000
- 70.0
- 84.2
- 3,399
- 2.90
