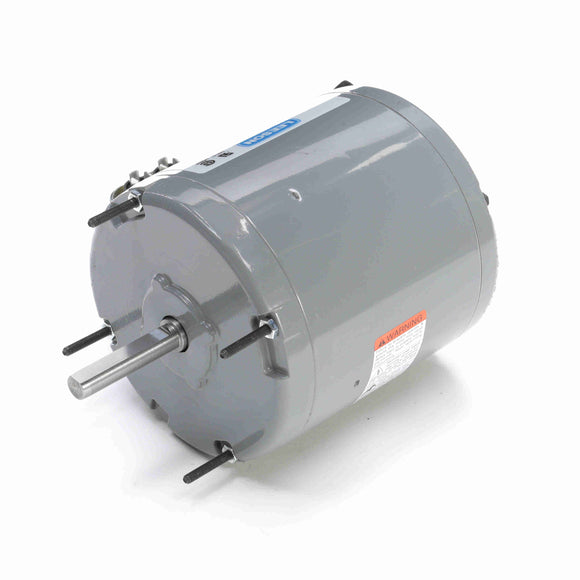

Features
Features
- Automatic overload protected

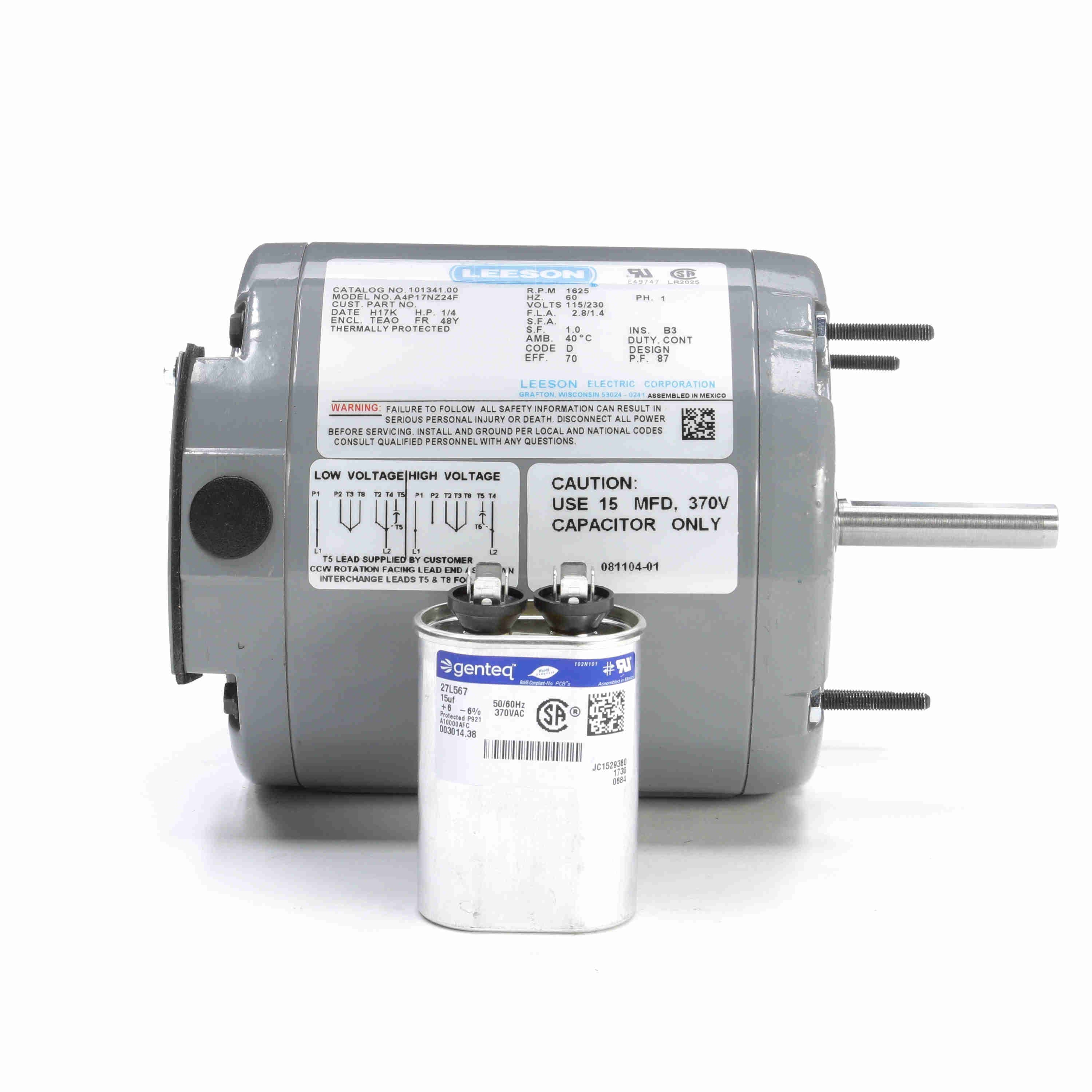

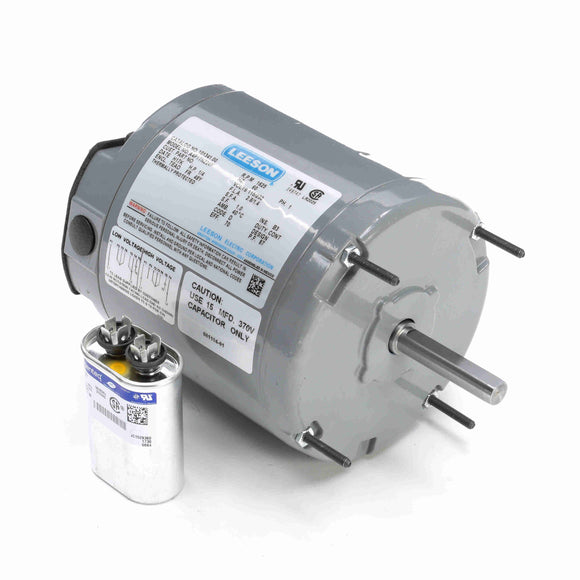

- 15MFD, 370V capacitor shipped loose with motor 101341.00
- Double shielded ball bearings
General Specifications
General Specifications
| Model : | A4P17NZ24F | Catalog No : | 101341.00 |
| Part Description : | 1/4HP..1625RPM.48.TENV.115/230V.1PH.60HZ.AIROVER.AUTOMATIC.40C.1.0SF.ROUND-EXTENDED STUDS.AG - HATCHERY.A4P17NZ24F | Category : | Hatchery |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.25 HP | Output KW : | 0.19 kW |
| Frequency : | 60 Hz | Voltage : | 115/230 V |
| Current : | 2.8/1.4 A | Speed : | 1625 RPM |
| Service Factor : | 1 | Phase : | 1 |
| Efficiency : | 70 % | Duty : | Continuous |
| Insulation Class : | B | Design Code : | NO DESIGN CODE |
| KVA Code : | D | Frame : | 48Y |
| Enclosure : | Totally Enclosed Air Over | Overload Protector : | Automatic |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 43 |
Technical Specifications
Technical Specifications
| Electrical Type : | Permanent Split Capacitor | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Round | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 48 |
| Overall Length : | 8.93 in | Frame Length : | 4.50 in |
| Shaft Diameter : | 0.500 in | Shaft Extension : | 2.13 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720005453 |
| Weight : | 15.00 LB |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 1.40 | 100.0 | 12.00 | 100.0 | 0 | 0.00 | 0.0 | 0.25 |
| Locked-Rotor | 5.00 | 357.0 | 8.00 | 67.0 | 0 | 0.00 | 0.0 | 0.25 |
| Break-Down | 0.00 | 0.0 | 27.00 | 225.0 | 0 | 0.00 | 0.0 | 0.25 |
| Pull-Up | 0.00 | 0.0 | 7.50 | 62.0 | 0 | 0.00 | 0.0 | 0.25 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 0.70
- 0.076
- 0.0
- 47.2
- 1,798
- 0.0
- 0.00
- 25 %
- 0.78
- 0.116
- 40.7
- 64.7
- 1,771
- 0.0
- 3.00
- 50 %
- 0.91
- 0.160
- 58.1
- 76.0
- 1,745
- 0.0
- 6.00
- 75 %
- 1.10
- 0.210
- 67.2
- 83.0
- 1,715
- 0.0
- 9.26
- 100 %
- 1.33
- 0.267
- 70.1
- 87.3
- 1,679
- 0.0
- 12.56
- 125 %
- 1.62
- 0.334
- 70.3
- 89.6
- 1,634
- 0.0
- 16.17
- 150 %
- 2.00
- 0.417
- 67.4
- 90.7
- 1,571
- 0.0
- 20.14
