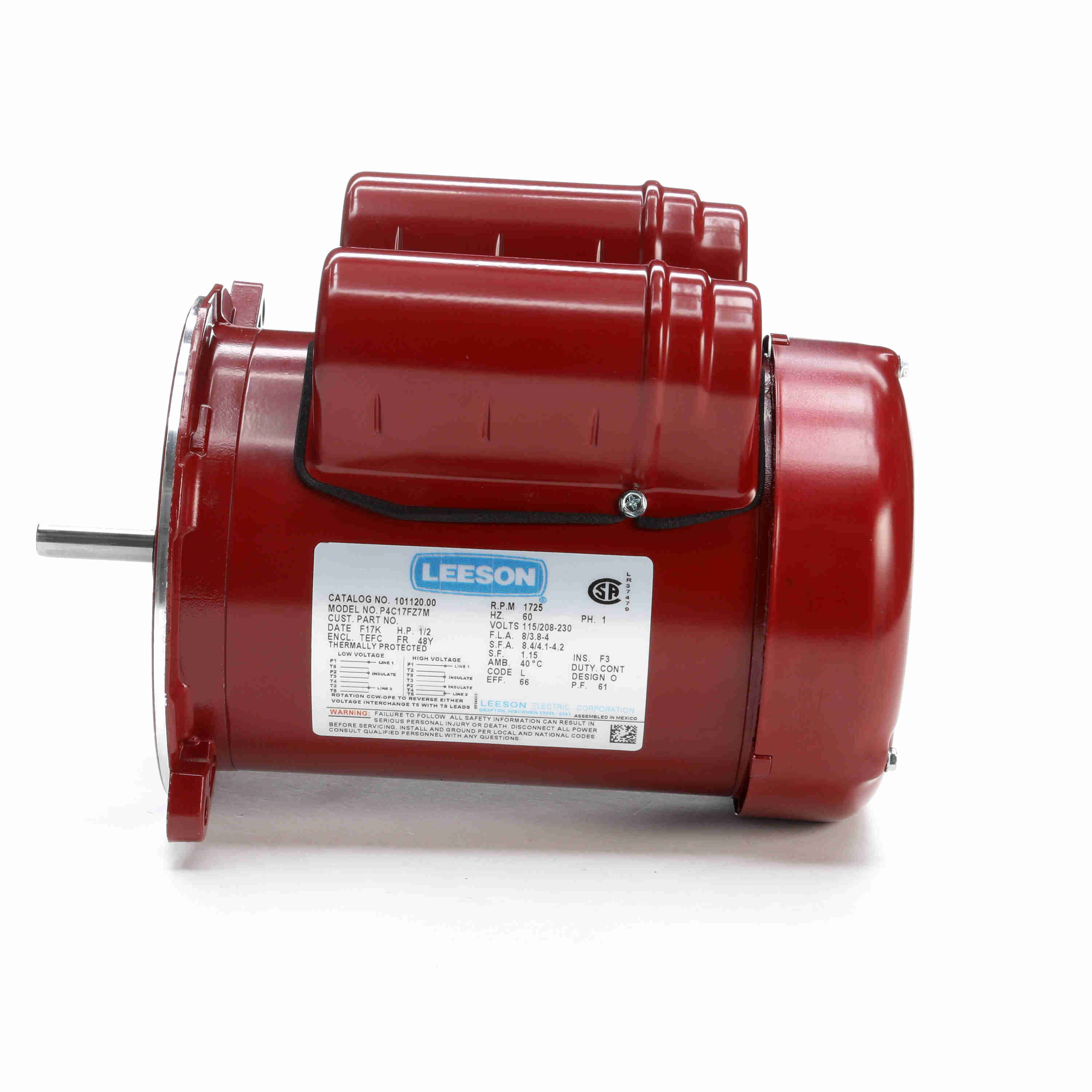

1/2HP Leeson Ag-Duty Feed-Auger Drive Electric Motor

$1,248.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 101120.00 Barcode: 691720005347

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • UL recognized component listing and CSA certification ensures the product is safe for use.
  • Double-shielded bearings extend the service life of the motor.
  • Extended shaft with wrench flats for manual jogging of auger.
  • Manual-reset thermal protector (as noted) protects against motor overload.

General Specifications

UPC: 691720005347 Weight: 25.00 LB
Packaged Length: 13.75 IN Packaged Width: 7.88 IN
Packaged Height: 8.75 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 8.0/4.4-4.0 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 66 % Power Factor: 61
Duty: Continuous Insulation Class: F
Design Code: O KVA Code: L
Frame: 48Y Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized ( Not Protector) CSA: Y
CE: N IP Code: 43
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 4.293 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 48 Overall Length: 10.72 in
Frame Length: 6.25 in Shaft Diameter: 0.500 in
Shaft Extension: 1.5 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (OZ-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 4.00 24.00 100.0 0 0.50
Pull-Up 0.00 54.10 225.0 0 0.50
Locked-Rotor 20.70 84.10 350.0 0 0.50
Break-Down 0.00 64.20 268.0 0 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 3.30 3.37 3.49 3.72 4.03 4.40 4.46 4.98
Rated Output (KW) 0.15 0.24 0.34 0.45 0.57 0.67 0.69 0.83
Efficiency (%) 0.0 39.0 54.9 62.3 65.9 64.3 67.4 67.2
Power Factor (%) 19.6 31.2 42.5 52.7 61.4 65.9 67.6 72.8
Speed (RPM) 1,797 1,787 1,777 1,766 1,752 1,740 1,739 1,723
Temp. Rise @ FL 0.0 0.0 0.0 0.0 72.2 0.0 0.0 0.0
Torque (OZ-FT) 0.00 5.95 11.87 17.91 24.09 27.85 30.24 36.64
