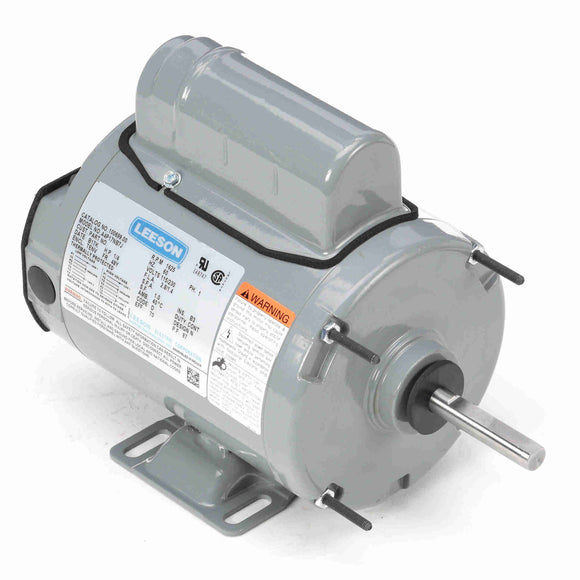

100699.00 Leeson 1/4HP 2-Winding Agriculture Fan Duty Electric Motor, 1625RPM-1

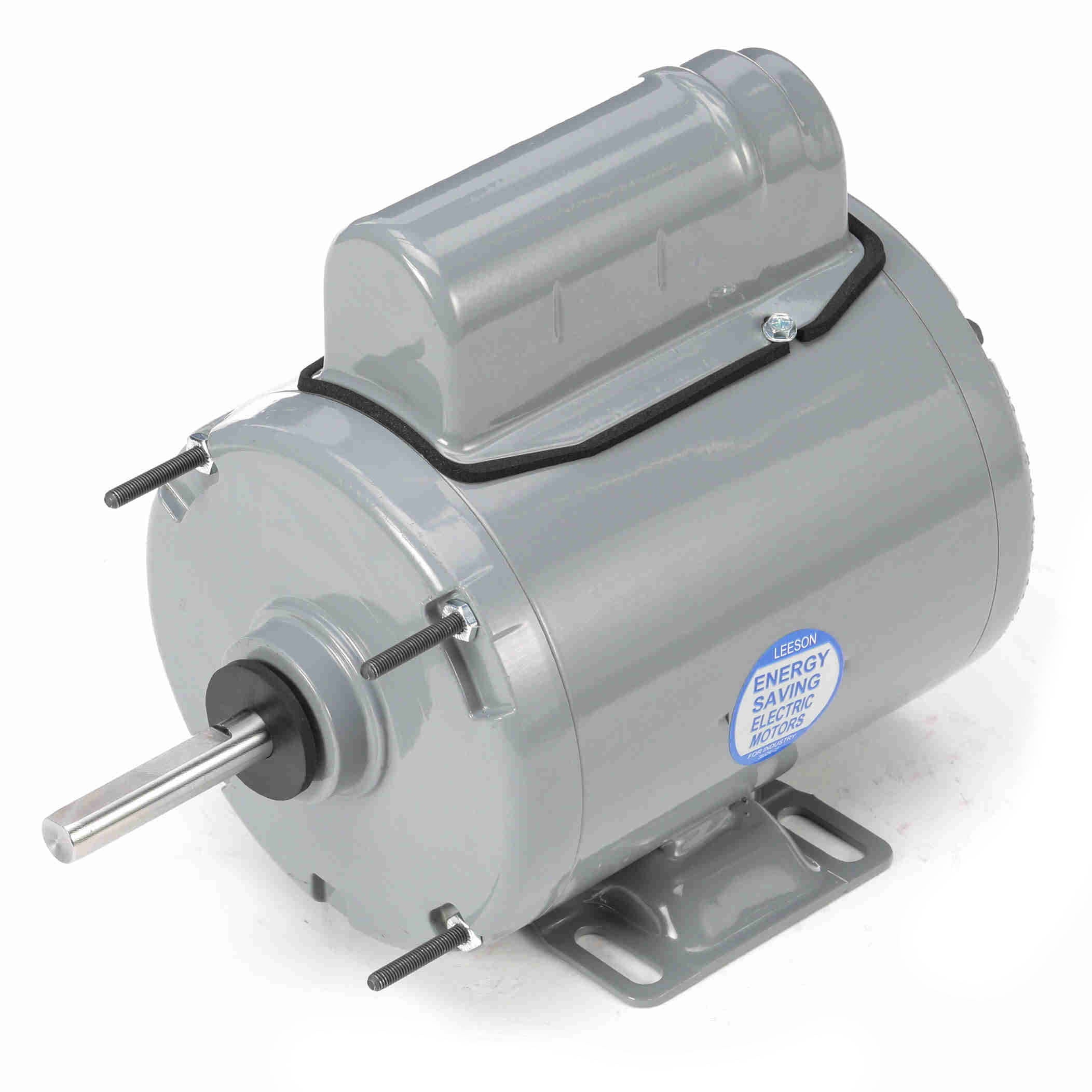

100699.00 Leeson 1/4HP 2-Winding Agriculture Fan Duty Electric Motor, 1625RPM-2

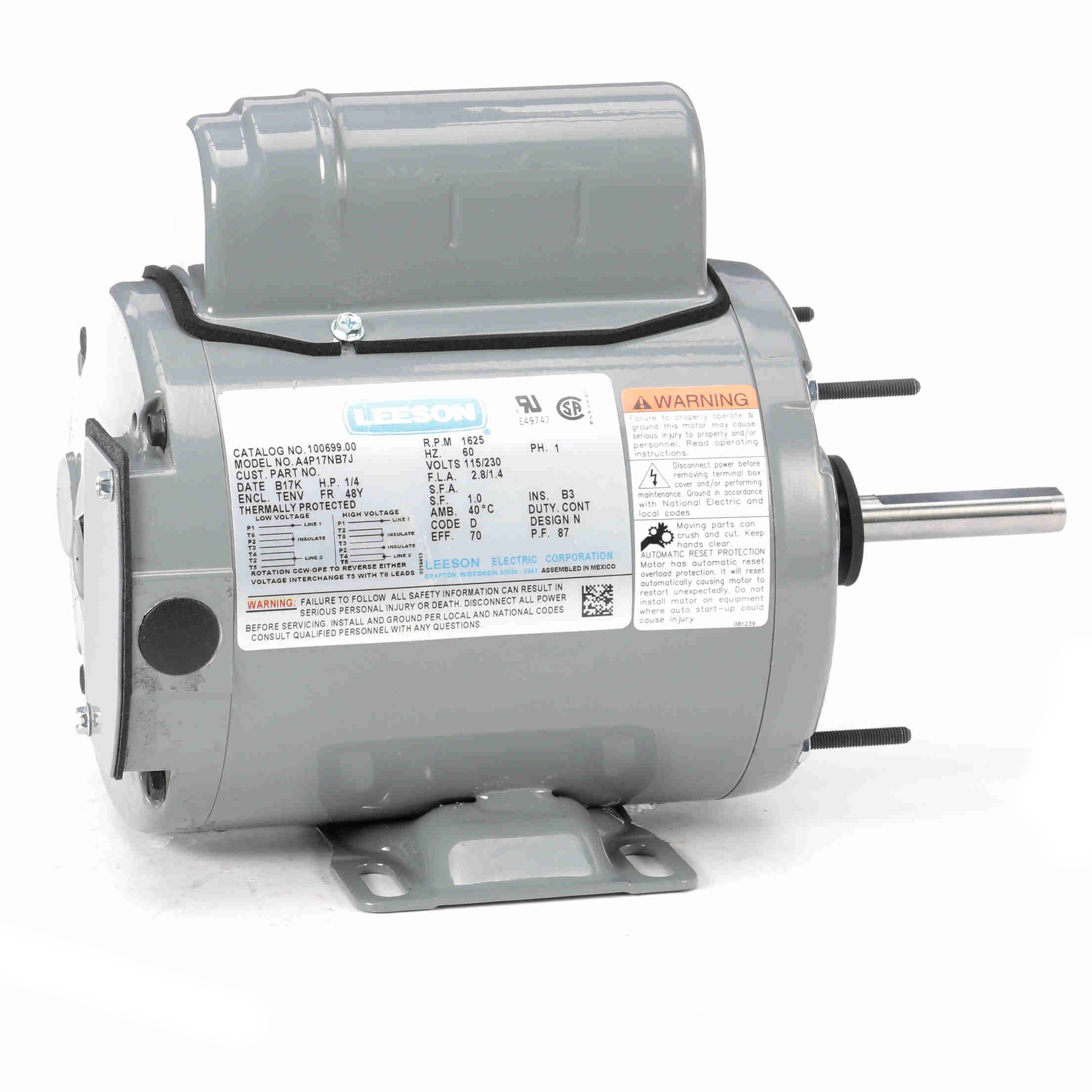

100699.00 Leeson 1/4HP 2-Winding Agriculture Fan Duty Electric Motor, 1625RPM-3

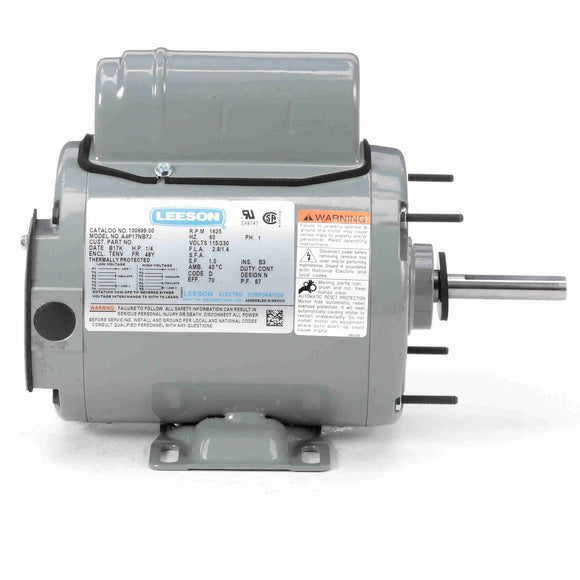

100699.00 Leeson 1/4HP 2-Winding Agriculture Fan Duty Electric Motor, 1625RPM-4

100699.00 Leeson 1/4HP 2-Winding Agriculture Fan Duty Electric Motor, 1625RPM

$654.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 100699.00 Barcode: 691720004999

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Extended through bolts
  • Must be mounted in air stream
  • PSC designs offer low in-rush current
  • Automatic overload protected
  • Resilient mount for quiet operation
  • Corrosion resistant finish

General Specifications

UPC: 691720004999 Weight: 16.00 LB
Packaged Length: 13.75 IN Packaged Width: 7.88 IN
Packaged Height: 8.75 IN

Nameplate Specifications

Output HP: 0.25 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 2.8/1.4 A Speed: 1625 rpm
Service Factor: 1 Phase: 1
Efficiency: 70 % Power Factor: 87
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: D
Frame: 48Y Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 9.88 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 48 Overall Length: 10.65 in
Frame Length: 5.50 in Shaft Diameter: 0.500 in
Shaft Extension: 2.5 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 5.00 357.0 8.00 67.0 0 0.00 0.0 0.25
Full Load 1.40 100.0 12.00 100.0 0 0.00 0.0 0.25
Pull-Up 0.00 0.0 7.50 62.0 0 0.00 0.0 0.25
Break-Down 0.00 0.0 27.00 225.0 0 0.00 0.0 0.25

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.70 0.78 0.91 1.10 1.33 1.62 2.00
Rated Output (KW) 0.08 0.12 0.16 0.21 0.27 0.33 0.42
Efficiency (%) 0.0 40.7 58.1 67.2 70.1 70.3 67.4
Power Factor (%) 47.2 64.7 76.0 83.0 87.3 89.6 90.7
Speed (RPM) 1,798 1,771 1,745 1,715 1,679 1,634 1,571
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 3.00 6.00 9.26 12.56 16.17 20.14
