Features
- Durable rolled steel construction
- NEMA design B performance
- Meets or exceeds NEMA service factors
- Double shielded ball bearings
- Continuous duty
- Thermally protected ratings
- UL recognized component listing and CSA certified
- 1-year warranty on general purpose motors
- 3-year warranty on Premium efficient motors
General Specifications
| Model : | C4C17DC9J | Catalog No : | 100025.00 |
| Part Description : | Obsolete in the US, replaced by E100025.00 ..1/2HP..1725RPM.S56.DP.115/208-230V.1PH.60HZ.CONT.40C.1.25SF.ROUND.C4C17DC9J.....GENERAL PURPOSE.NOT....... | Category : | Open Drip Proof (ODP) |
| Stock : | No |

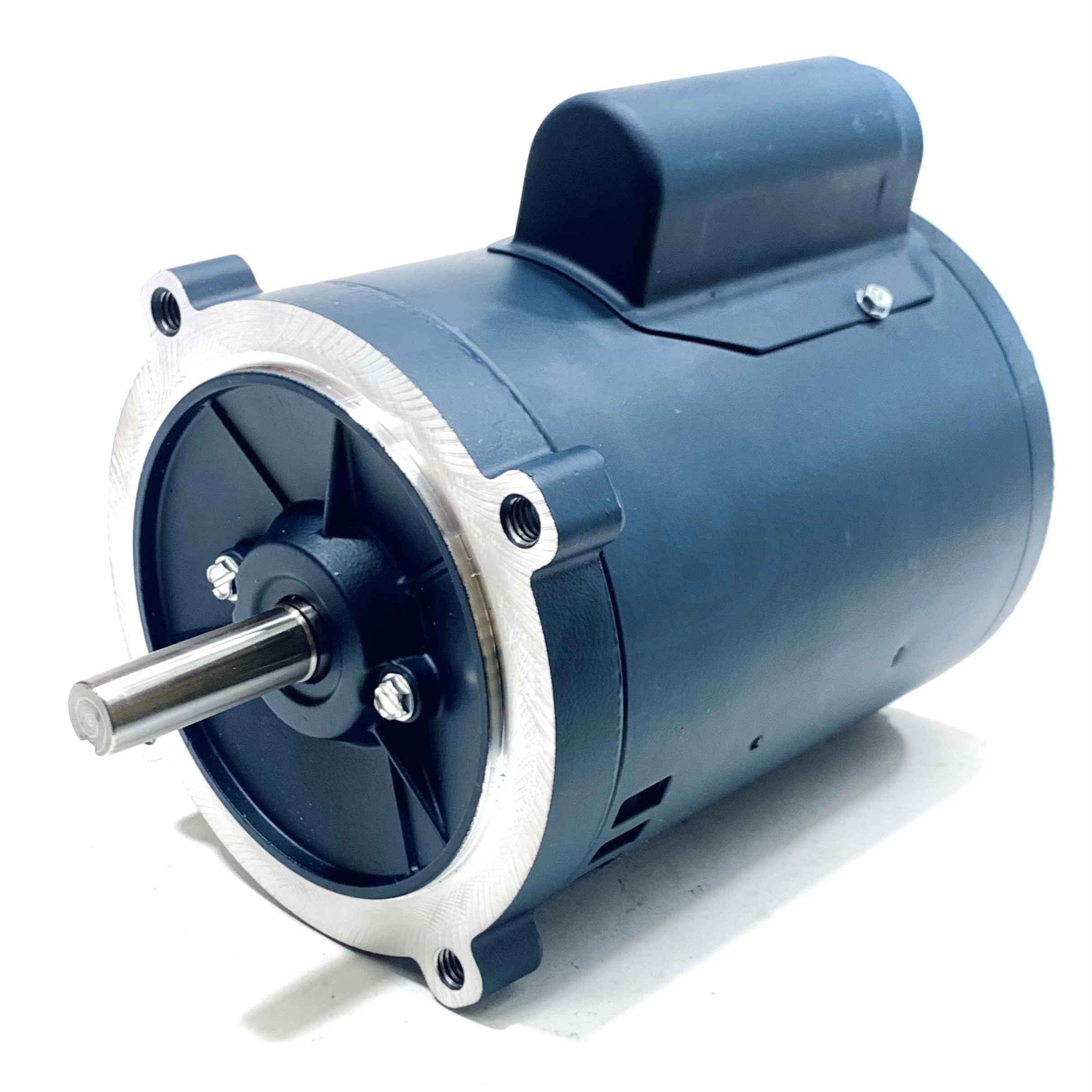

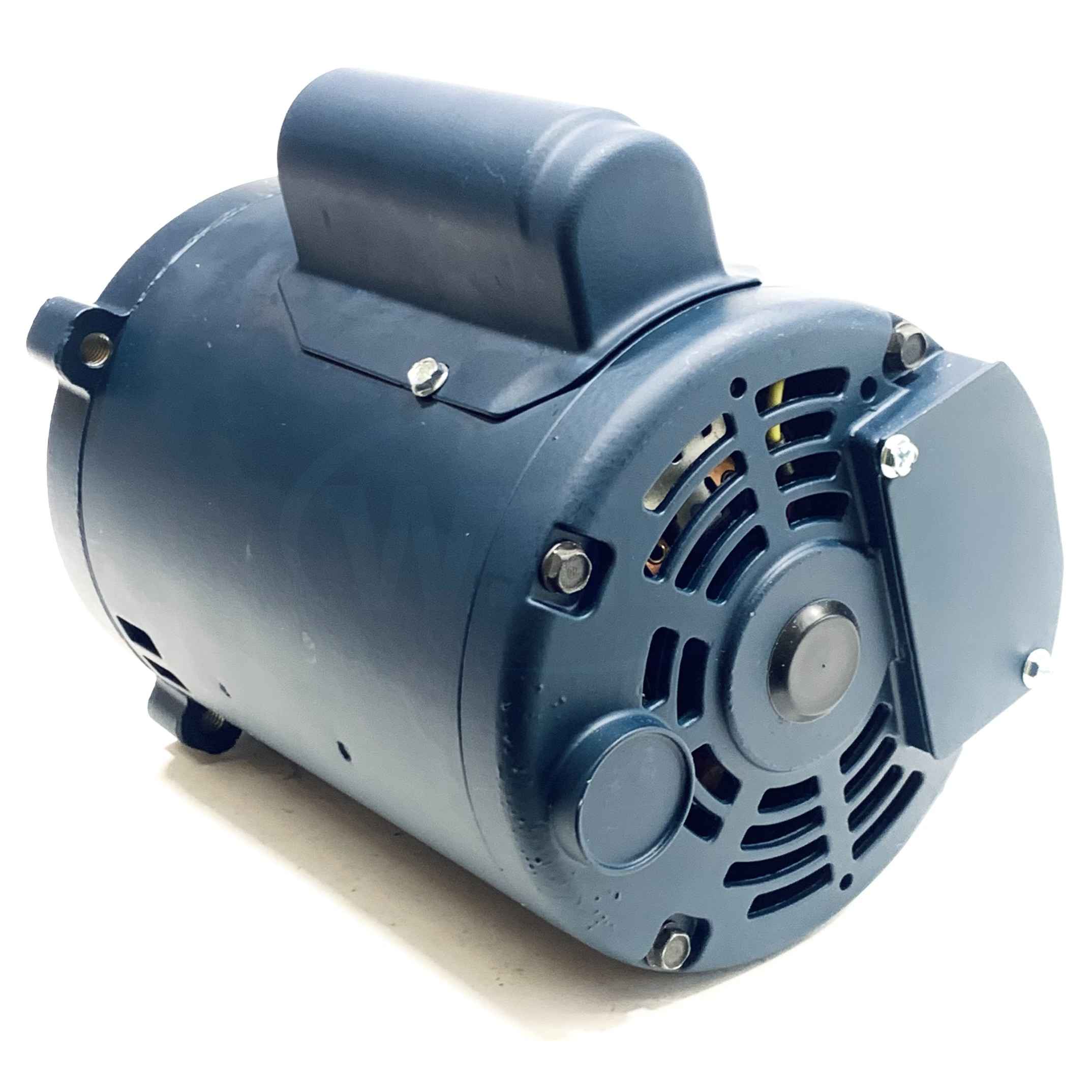

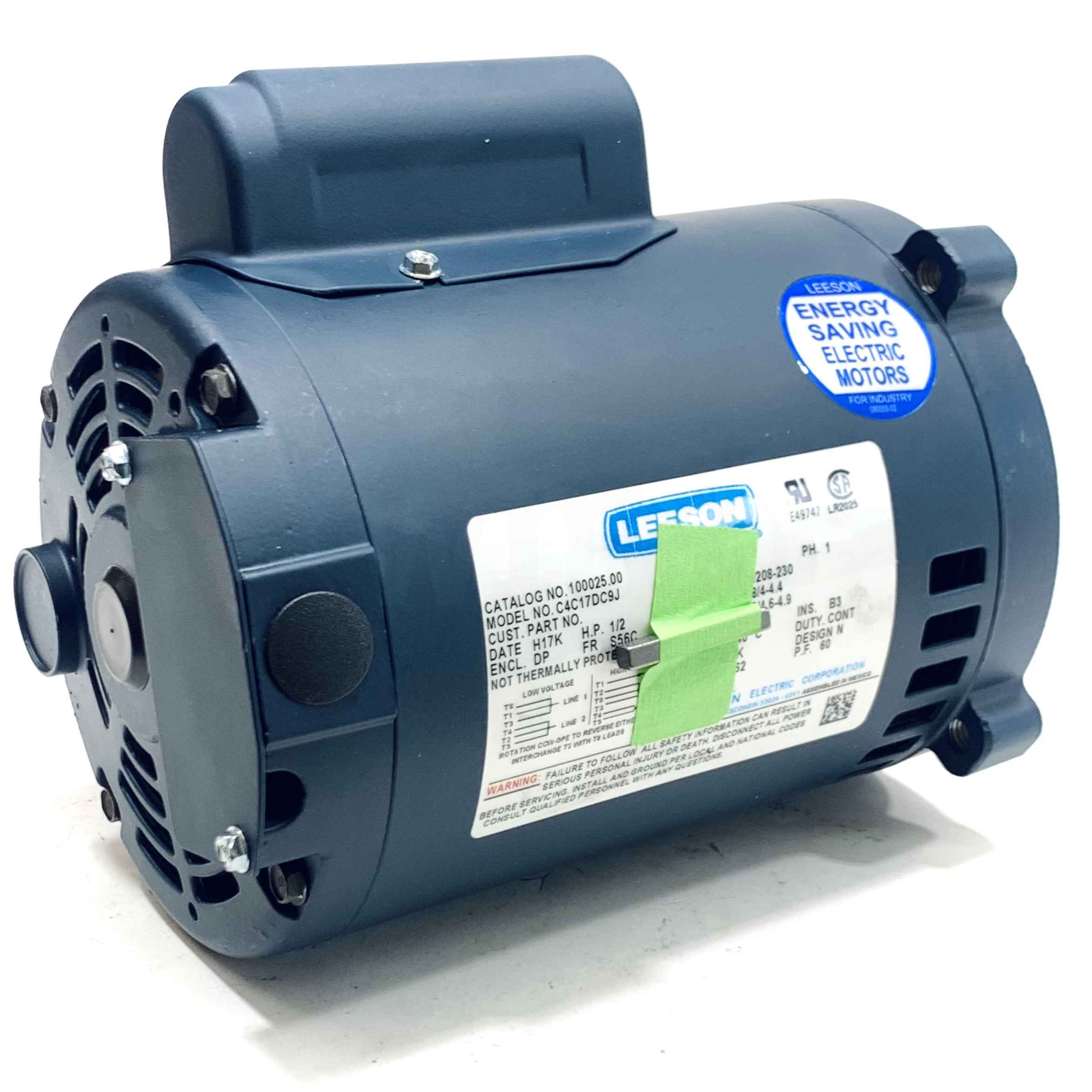

Nameplate Specifications
| Output HP : | 0.5 Hp | Output KW : | 0.37 kW |
| Frequency : | 60 Hz | Voltage : | 115/208-230 V |
| Current : | 8.8/4-4.4 A | Speed : | 1725 rpm |
| Service Factor : | 1.25 | Phase : | 1 |
| Efficiency : | 62 % | Duty : | CONTINUOUS |
| Insulation Class : | B | Design Code : | N |
| KVA Code : | K | Frame : | S56C |
| Enclosure : | DP | Overload Protector : | NOT |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 22 |
Technical Specifications
| Electrical Type : | CAP START IND RUN | Starting Method : | ACROSS THE LINE |
| Poles : | 4 | Rotation : | SELECTIVE CCW |
| Mounting : | ROUND | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | ROLLED STEEL | Shaft Type : | STANDARD 56 |
| Overall Length : | 9.99 in | Frame Length : | 6 in |
| Shaft Diameter : | 0.63 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720004357 |
| Weight : | 22.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 0.00 | 66.00 | 275.0 | 0 | 0.50 | |||
| Locked-Rotor | 19.50 | 80.00 | 333.0 | 0 | 0.50 | |||
| Pull-Up | 0.00 | 62.00 | 258.0 | 0 | 0.50 | |||
| Full Load | 4.40 | 24.00 | 100.0 | 1,747 | 0.50 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 4.00
- 0.197
- 0.0
- 21.4
- 1,794
- 0.0
- 0.00
- 25 %
- 3.90
- 0.287
- 33.1
- 32.0
- 1,784
- 0.0
- 6.00
- 50 %
- 4.00
- 0.390
- 48.4
- 42.4
- 1,772
- 0.0
- 12.00
- 75 %
- 4.17
- 0.493
- 57.1
- 51.4
- 1,760
- 0.0
- 18.00
- 100 %
- 4.41
- 0.606
- 62.0
- 60.1
- 1,745
- 56.9
- 24.00
- 125 %
- 4.79
- 0.731
- 63.1
- 66.4
- 1,730
- 0.0
- 30.00
- 150 %
- 5.25
- 0.866
- 63.1
- 71.7
- 1,708
- 0.0
- 36.00
