Features
Features
- Durable rolled steel construction
- NEMA Design B performance
- Meets or exceed NEMA service factors
- Double shielded ball bearings
- Continuous duty
- 1-year warranty on general purpose motors
- UL recognized component listing and CSA certified
General Specifications
General Specifications

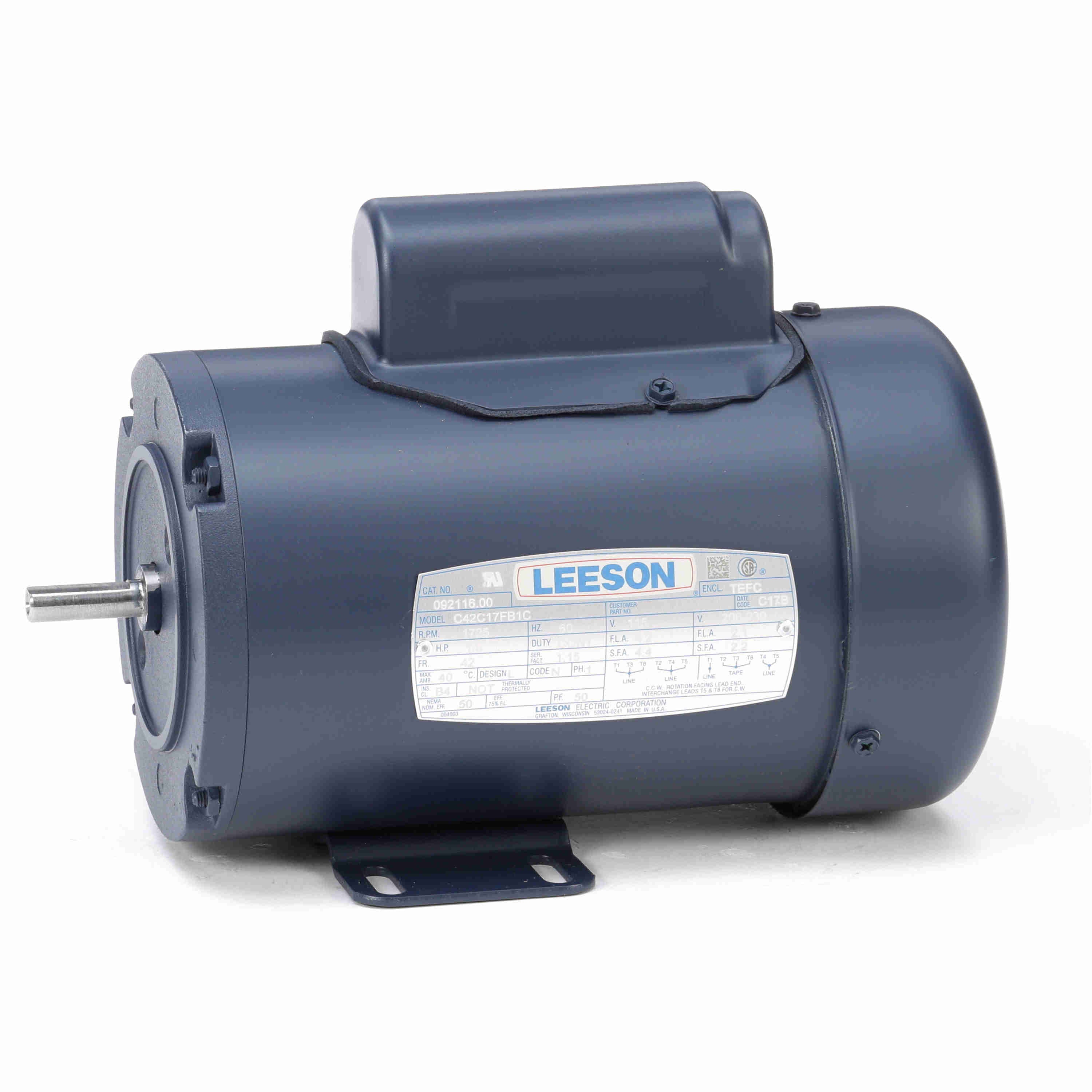

| Model : | C42C17FB1C | Catalog No : | 092116.00 |
| Part Description : | 1/6HP..1725RPM.42.TEFC.115/208-230V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.GENERAL PURPOSE.C42C17FB1C | Category : | Totally Enclosed Fan Cooled (TEFC) |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.17 Hp | Output KW : | 0.13 kW |
| Frequency : | 60 Hz | Voltage : | 115/208-230 V |
| Current : | 4.2/2.1 A | Speed : | 1725 rpm |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 50 % | Duty : | Continuous |
| Insulation Class : | B | Design Code : | L |
| KVA Code : | N | Frame : | 42 |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 43 |
Technical Specifications
Technical Specifications
| Electrical Type : | Capacitor Start Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Rigid base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | Single Special Extension |
| Overall Length : | 9.44 in | Frame Length : | 6.00 in |
| Shaft Diameter : | 0.375 in | Shaft Extension : | 1.12 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720990049 |
| Weight : | 20.00 LB |
