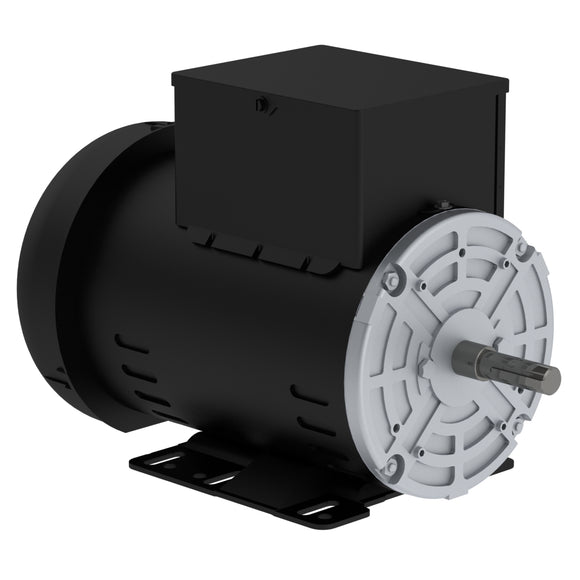

00536OS1DCD56HZ-S WEG 5HP Compressor Duty Electric Motor, 3600RPM

$428.09 USD $481.00 USD Save $52.91 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00536OS1DCD56HZ-S Barcode: 7909322336787

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Electric Motors

Frame 56HZ
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3440 rpm
Slip 4.44 %
Rated voltage 230 V
Rated current 20.3 A
L. R. Amperes 122 A
LRC 6.0x(Code G)
No load current 4.20 A
Rated torque 7.53 ft.lb
Locked rotor torque 240 %
Breakdown torque 200 %
Locked rotor time 7s (cold) 4s (hot)
Moment of inertia (J) 0.0864 sq.ft.lb
Design L
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 49.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
74.6  79.5  80.0

Power factor

50% 75% 100%
0.98  0.98  0.99

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6205 ZZ   6203 ZZ
Sealing Sem vedação  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
123 lb  173 lb
