Features
- BISSC certified for the Baking Industry
- Stainless Steel Output shafts
- Repositional drain plugs for all angle mounting
- Double Sealed bearings
- Output shaft seal
- Inverter Duty IRIS™ insulation system
- Laser etched full-fact nameplate on frame
- All Stainless exterior
- Anti-corrosion coating applied to interior components
General Specifications

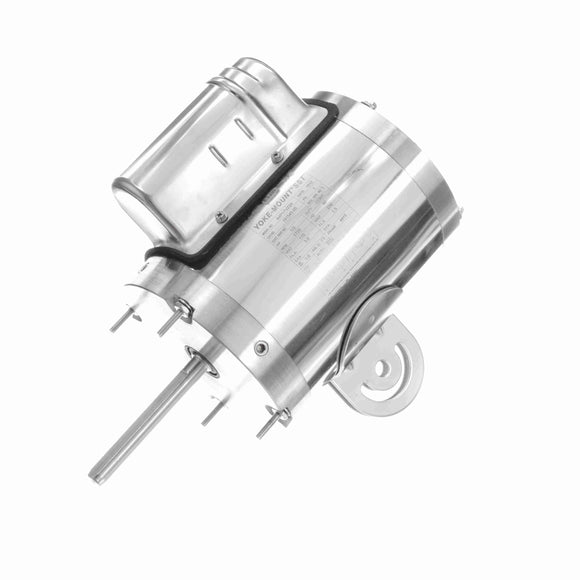

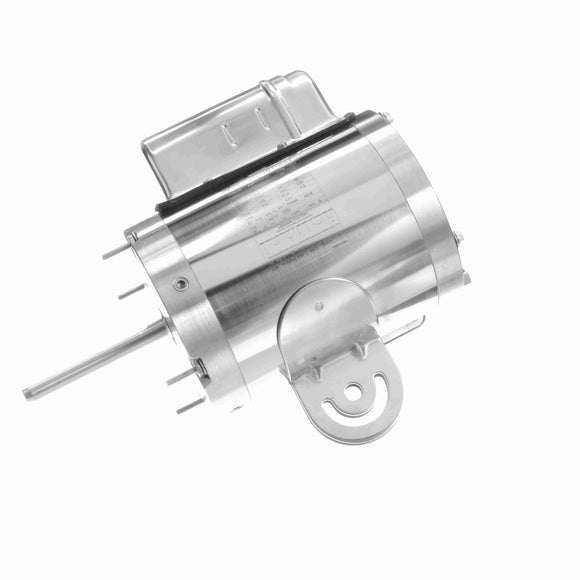

| Model : | A4P17VZ2A | Catalog No : | 191545.00 |
| Part Description : | ..1/3HP..1725RPM.48Y.TEAO.115/230V.1PH.60HZ.FAN DUTY.40C.1.0SF.YOKE......STAINLESS PEDESTAL FAN MOTOR.AUTO....... | Category : | Pedestal Fan Motors |
| Stock : | No |
Nameplate Specifications
| Output HP : | 0.33 Hp | Output KW : | 0.25 kW |
| Frequency : | 60 Hz | Voltage : | 115/230 V |
| Current : | 3.0/1.5 A | Speed : | 1755 rpm |
| Service Factor : | 1 | Phase : | 1 |
| Efficiency : | 74 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | NO DESIGN CODE |
| KVA Code : | D | Frame : | 48YZ |
| Enclosure : | Totally Enclosed Air Over | Overload Protector : | Automatic |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Permanent Split Capacitor | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Clockwise |
| Mounting : | Round - Extended Studs | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Stainless Steel | Shaft Type : | Single Special Extension |
| Overall Length : | 11.58 in | Shaft Diameter : | 0.500 in |
| Shaft Extension : | 4.05 in | Assembly/Box Mounting : | F1 ONLY |
| UPC : | 691720052549 | Weight : | 21.00 LB |
