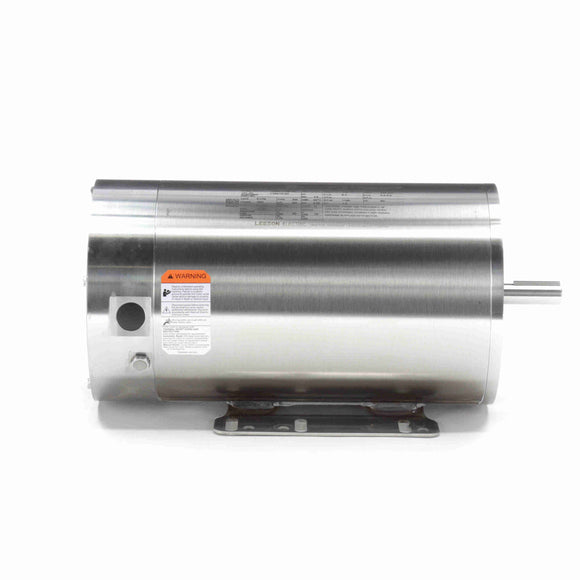

116919.00 Leeson 3/4HP Premium Duck Washdown Electric Motor, 1140RPM-1

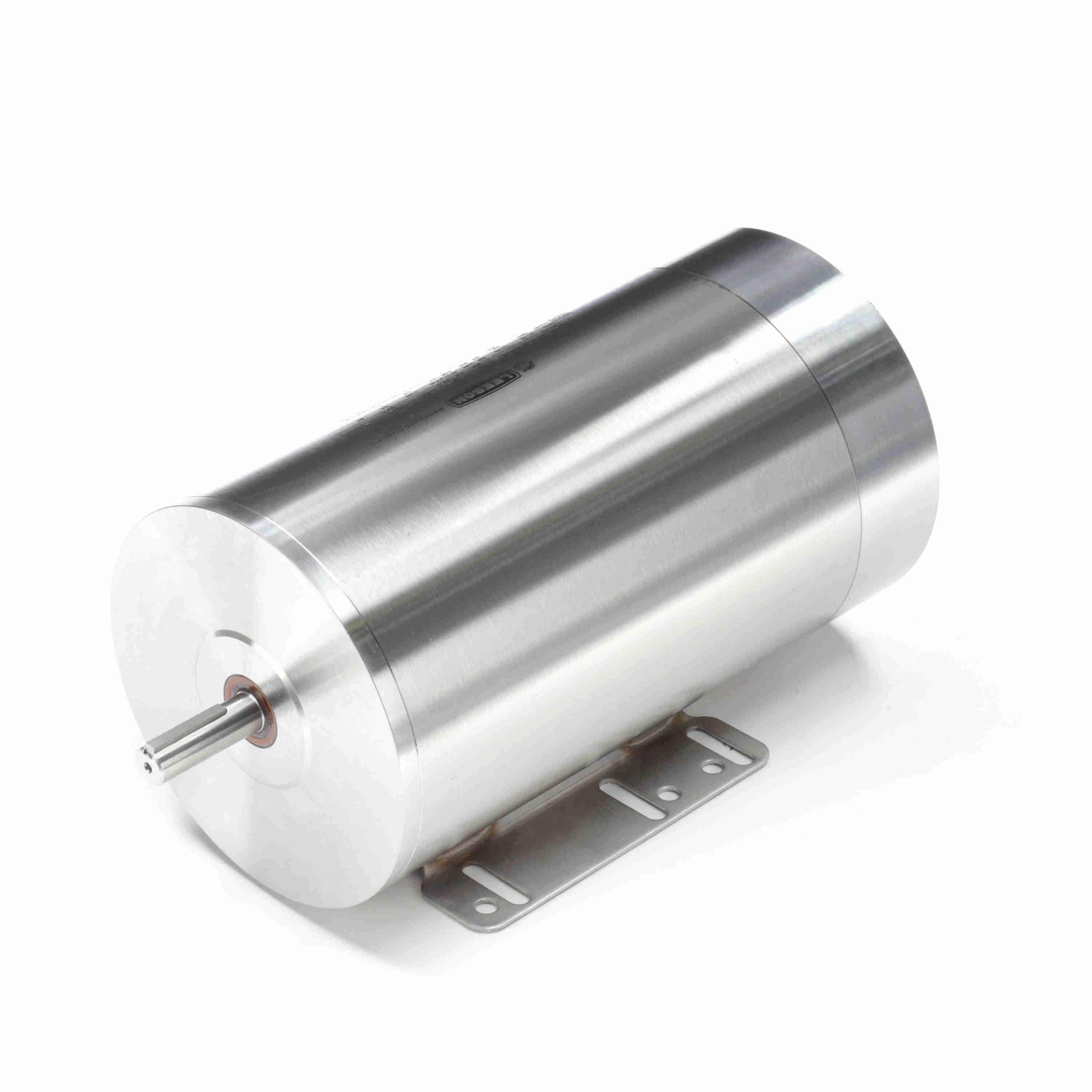

116919.00 Leeson 3/4HP Premium Duck Washdown Electric Motor, 1140RPM-2

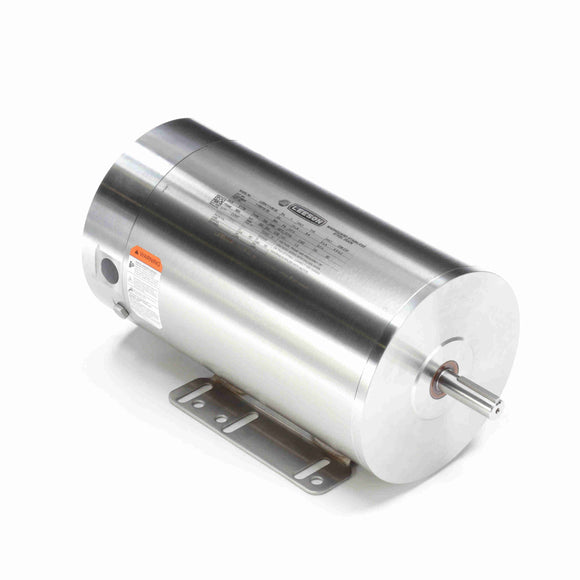

116919.00 Leeson 3/4HP Premium Duck Washdown Electric Motor, 1140RPM-3

116919.00 Leeson 3/4HP Premium Duck Washdown Electric Motor, 1140RPM

$3,066.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 116919.00 Barcode: 691720053096

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • All exterior components are 300-series stainless steel
  • All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • Interior coatings applied to rotor and stator protect against corrosion
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • Single and three phase motors are UL component recognized – file number E57948, guide number PRGY2
  • CSA Energy Efficiency Verification Program, report number EEV 78720-1

General Specifications

General Specifications
Model : UZ6K11VB1B Catalog No : 116919.00
Part Description : ..3/4HP..1140RPM.56H.TENV.115/208-230V.1PH.60HZ.CONT.40C.1.0SF.RIGID.UZ6K11VB1B......AUTOMATIC....3/4/0.56KW... Category : 1 Phase
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.75 HP Output KW : 0.56 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 8.4/4.4-4.2 A Speed : 1140 RPM
Service Factor : 1 Phase : 1
Efficiency : 71.7 % Duty : Continuous
Insulation Class : F Design Code : NO DESIGN CODE
KVA Code : H Frame : 56H
Enclosure : Totally Enclosed Non Ventilated Overload Protector : Automatic
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : No
CSA : N CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Capacitor Run Starting Method : Across The Line
Poles : 6 Rotation : Selective Counterclockwise
Mounting : Rigid Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 13.88 in Frame Length : 9.50 in
Shaft Diameter : 0.625 in Shaft Extension : 1.87 in
Assembly/Box Mounting : F1 ONLY UPC : 691720053096
Weight : 56.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 110.00 204.0 1,050 0.75
Locked-Rotor 22.00 100.00 185.0 0 0.75
Pull-Up 0.00 70.00 130.0 700 0.75
Full Load 4.20 54.00 100.0 1,140 0.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.20
  • 0.190
  • 0.0
  • 37.5
  • 1,198
  • 0.0
  • 0.00
  • 25 %
  • 2.35
  • 0.312
  • 45.8
  • 57.7
  • 1,193
  • 0.0
  • 13.50
  • 50 %
  • 2.79
  • 0.445
  • 63.9
  • 69.3
  • 1,185
  • 0.0
  • 27.00
  • 75 %
  • 3.39
  • 0.590
  • 71.7
  • 75.7
  • 1,176
  • 0.0
  • 40.50
  • 100 %
  • 4.10
  • 0.756
  • 74.0
  • 80.2
  • 1,167
  • 0.0
  • 54.00
  • 125 %
  • 4.90
  • 0.927
  • 74.7
  • 82.3
  • 1,155
  • 0.0
  • 67.50
  • 150 %
  • 5.94
  • 1.128
  • 72.6
  • 82.6
  • 1,139
  • 0.0
  • 81.00
