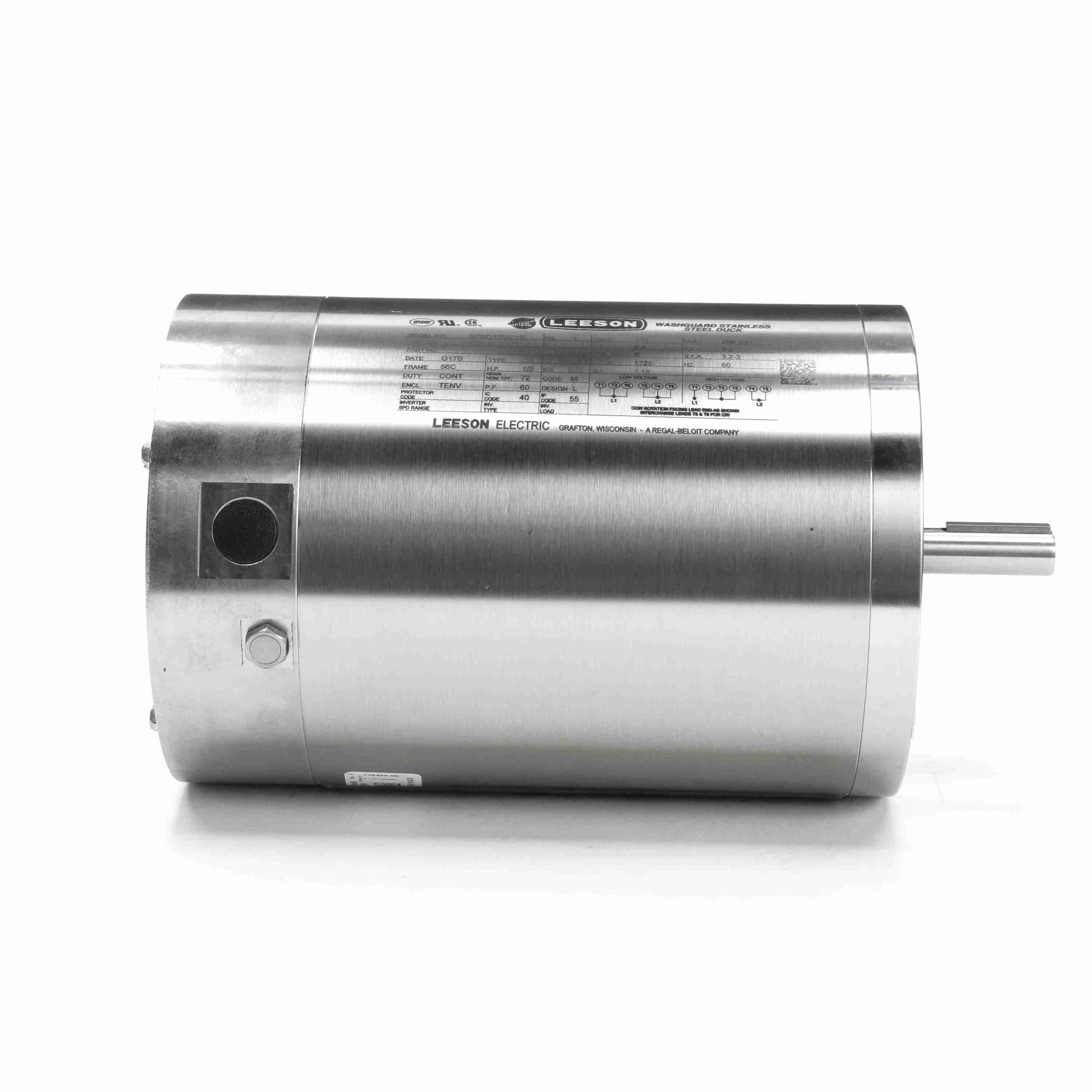

116349.00 Leeson 1/3HP Washguard All-Stainless Electric Motor, 1725RPM-1

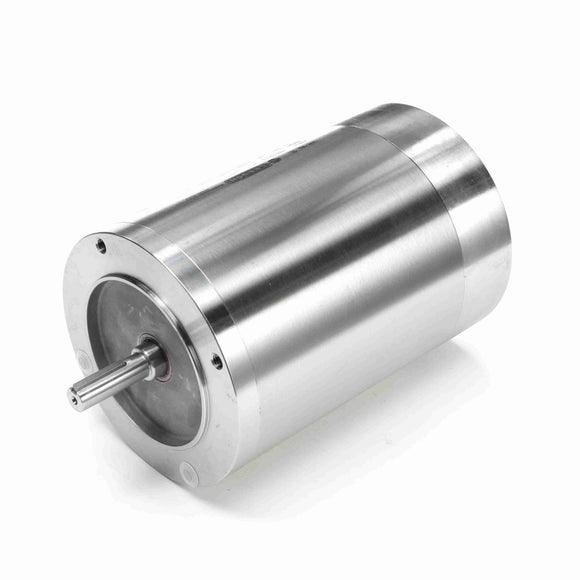

116349.00 Leeson 1/3HP Washguard All-Stainless Electric Motor, 1725RPM-2

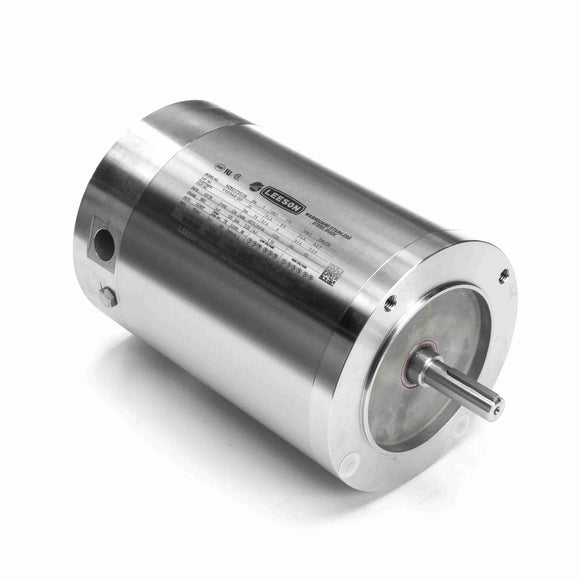

116349.00 Leeson 1/3HP Washguard All-Stainless Electric Motor, 1725RPM-3

116349.00 Leeson 1/3HP Washguard All-Stainless Electric Motor, 1725RPM

$2,726.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 116349.00 Barcode: 691720307465

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • Single-phase motors use Solid State Sinpac® switch – no mechanical switch contacts to corrode and fail.

General Specifications

General Specifications
Model : NZ6C17VC1B Catalog No : 116349.00
Part Description : 1/3HP..1725RPM.56.TENV./V.1PH.60HZ.CONT.NOT.40C.1.15SF.C FACE.WASHGUARD-ALL STAINLESS.NZ6C17VC1B Category : 1 Phase
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.33 HP Output KW : 0.25 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 5.4/3.0-2.7 A Speed : 1725 RPM
Service Factor : 1.15 Phase : 1
Efficiency : 72 % Duty : Continuous
Insulation Class : F Design Code : L
KVA Code : M Frame : 56C
Enclosure : Totally Enclosed Non Ventilated Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Round Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Stainless Steel Shaft Type : NEMA 56
Overall Length : 11.70 in Frame Length : 7.00 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720307465
Weight : 35.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 0.0 45.00 281.0 1,500 0.00 0.0 0.33
Locked-Rotor 16.00 0.0 62.00 388.0 0 0.00 0.0 0.33
Pull-Up 0.00 0.0 40.00 250.0 1,300 0.00 0.0 0.33
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.90
  • 0.100
  • 0.0
  • 22.9
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 2.02
  • 0.150
  • 42.1
  • 32.3
  • 1,780
  • 0.0
  • 4.00
  • 50 %
  • 2.21
  • 0.188
  • 66.8
  • 37.0
  • 1,769
  • 0.0
  • 8.00
  • 75 %
  • 2.45
  • 0.262
  • 71.5
  • 46.5
  • 1,759
  • 0.0
  • 12.00
  • 100 %
  • 2.68
  • 0.344
  • 72.1
  • 55.8
  • 1,746
  • 93.0
  • 16.00
  • 125 %
  • 3.12
  • 0.433
  • 71.7
  • 60.3
  • 1,732
  • 0.0
  • 20.20
  • 150 %
  • 3.54
  • 0.530
  • 69.0
  • 65.1
  • 1,716
  • 0.0
  • 24.00
