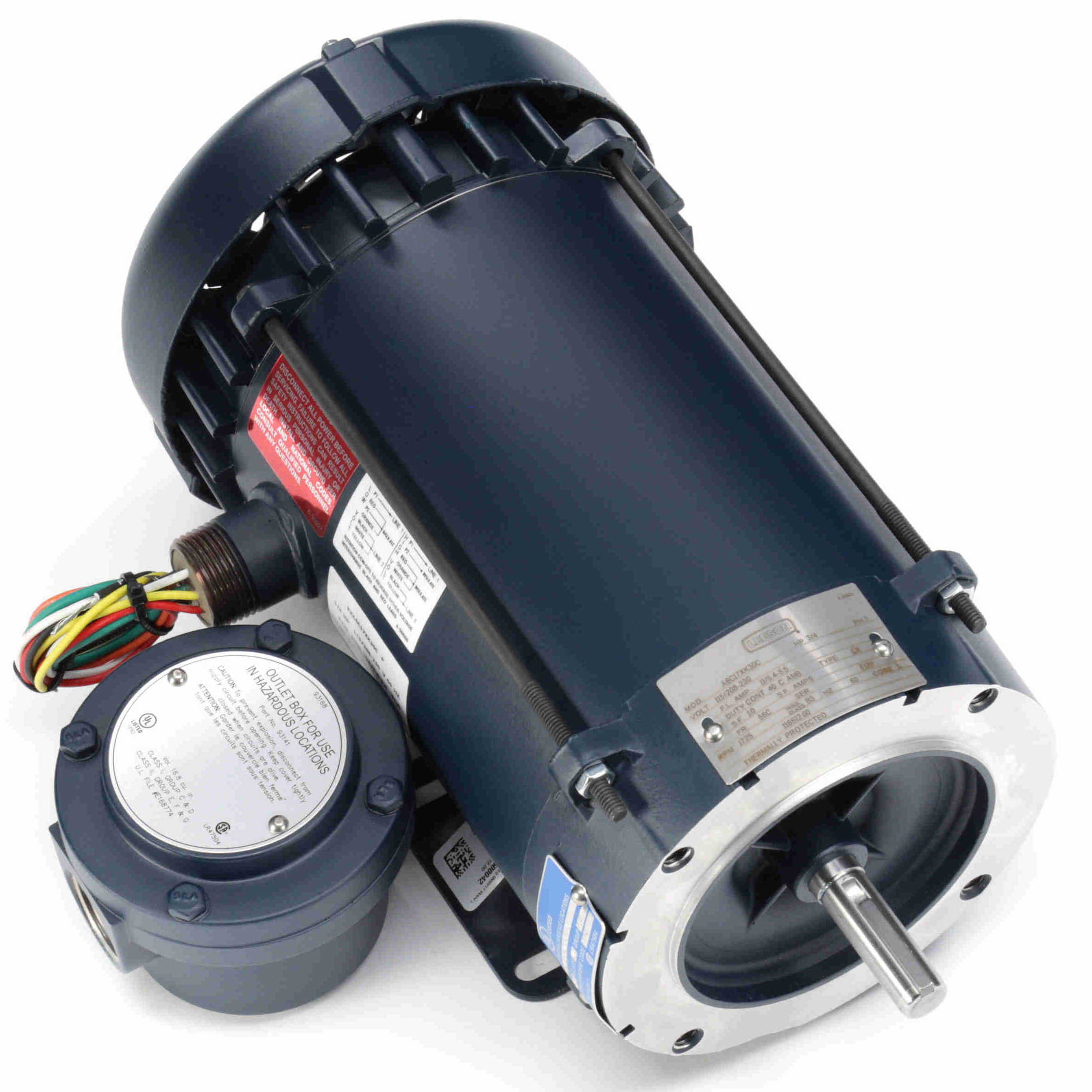

116612.00 Leeson 3/4HP Explosion Proof Electric Motor, 1800RPM-1

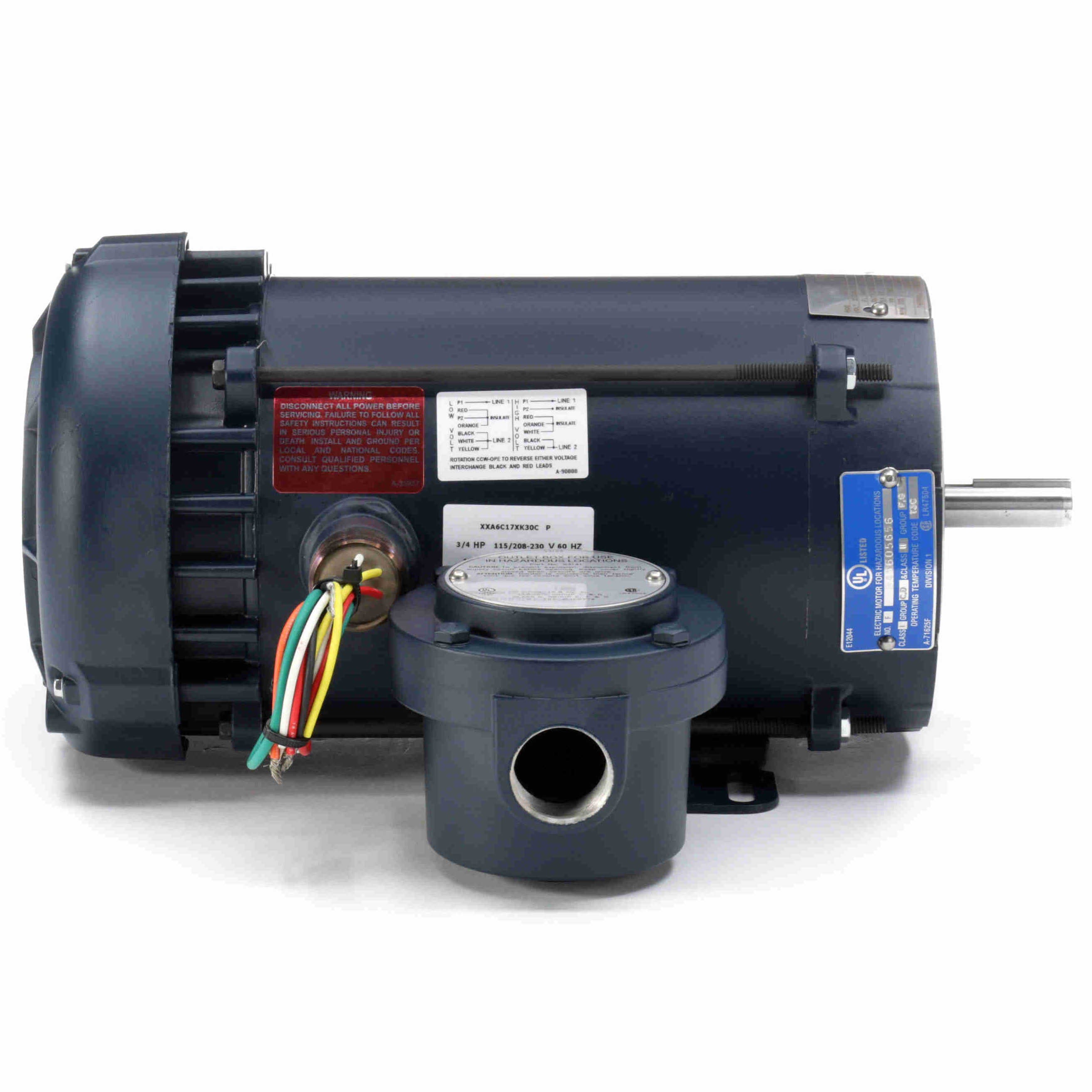

116612.00 Leeson 3/4HP Explosion Proof Electric Motor, 1800RPM-2
116612.00 Leeson 3/4HP Explosion Proof Electric Motor, 1800RPM-3
116612.00 Leeson 3/4HP Explosion Proof Electric Motor, 1800RPM-4

116612.00 Leeson 3/4HP Explosion Proof Electric Motor, 1800RPM

$2,049.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 116612.00 Barcode: 691720341834

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Meets T3B temperature code with a maximum surface temperature of 329° F.
  • Permanently lubricated, sealed bearings extend the lifetime of the motor.
  • 140 frame motor and below include explosion proof conduit box, shipped loose.

General Specifications

UPC: 691720341834 Weight: 51.00 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN

Nameplate Specifications

Output HP: 0.75 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 11.0/5.4-5.5 A Speed: 1725 rpm
Service Factor: 1 Phase: 1
Efficiency: 70 % Power Factor: 66.2
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: L
Frame: 56C Enclosure: Explosion Proof Fan cooled
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3C

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 14.44 in
Frame Length: 7.31 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (OZ-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 15.80 97.90 1,500 2.90 0.75
Pull-Up 20.50 72.60 1,229 3.40 0.75
Locked-Rotor 30.50 0.0 133.00 0.0 0 6.60 0.0 0.75

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 % 175 % 200 %
Current (Amps) 3.76 3.89 4.19 4.64 5.50 5.90 5.95 6.82 7.91 9.32
Rated Output (KW) 0.15 0.29 0.44 0.61 0.78 0.90 0.98 1.18 1.43 1.73
Efficiency (%) 0.0 48.5 63.2 69.4 70.0 72.0 71.8 71.3 68.5 64.8
Power Factor (%) 17.3 32.5 46.1 56.9 66.2 69.5 71.2 75.2 78.6 80.7
Speed (RPM) 1,800 1,781 1,768 1,757 1,740 1,733 1,726 1,710 1,690 1,655
Temp. Rise @ FL 0.0 0.0 0.0 0.0 52.0 0.0 0.0 0.0 0.0 0.0
Torque (OZ-FT) 0.00 8.90 17.80 26.90 36.00 41.70 45.40 55.10 65.10 75.80
