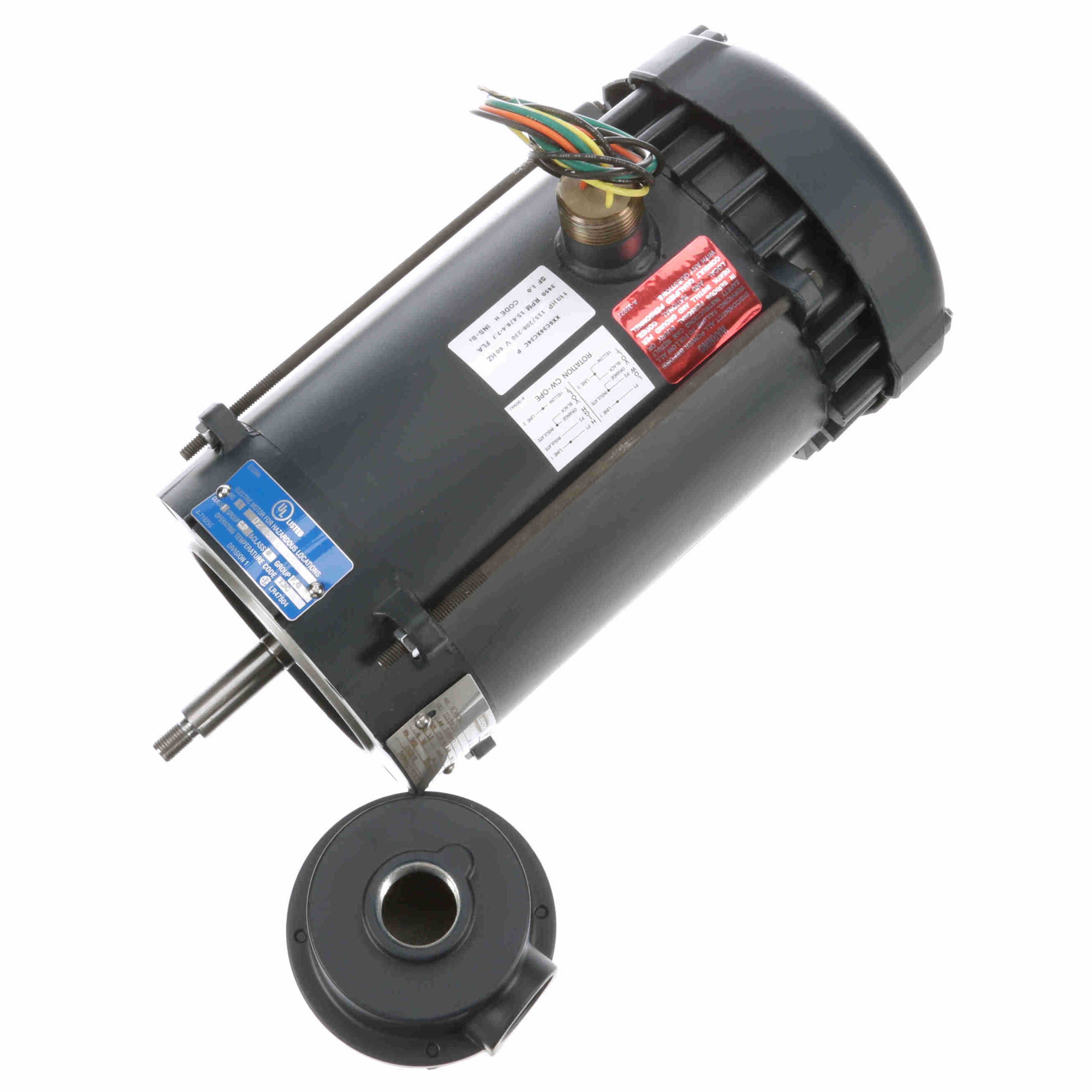

116183.00 Leeson 1.5HP Explosion Proof Electric Motor, 3600RPM-1

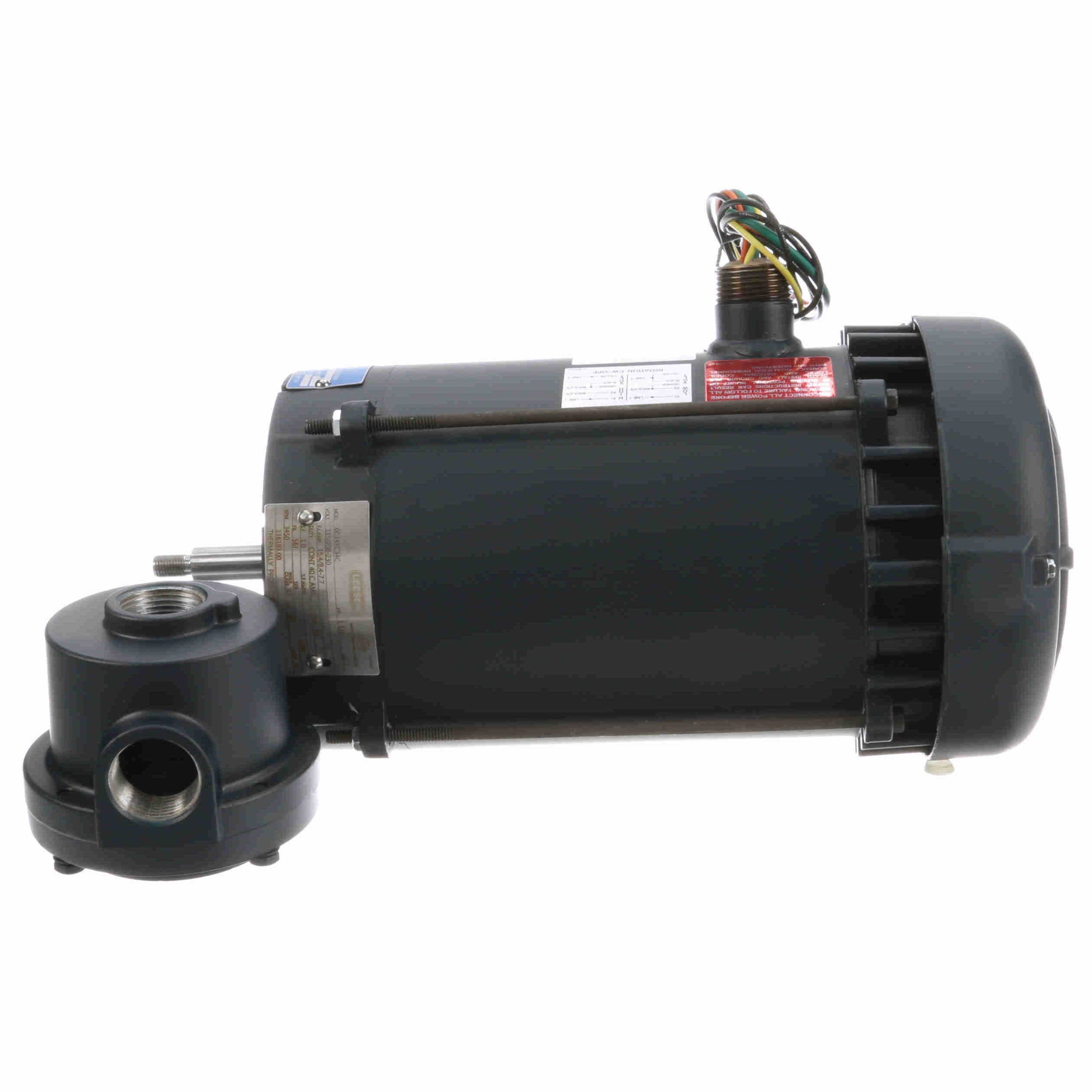

116183.00 Leeson 1.5HP Explosion Proof Electric Motor, 3600RPM-2
116183.00 Leeson 1.5HP Explosion Proof Electric Motor, 3600RPM-3
116183.00 Leeson 1.5HP Explosion Proof Electric Motor, 3600RPM-4

116183.00 Leeson 1.5HP Explosion Proof Electric Motor, 3600RPM

$1,299.97 USD $2,286.00 USD Save $986.03 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 116183.00 Barcode: 691720255964

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Meets T3B temperature code with a maximum surface temperature of 329° F.
  • Permanently lubricated, sealed bearings extend the lifetime of the motor.
  • 140 frame motor and below include explosion proof conduit box, shipped loose.

General Specifications

UPC: 691720255964 Weight: 40.00 LB
Packaged Length: 19.69 IN Packaged Width: 12.62 IN
Packaged Height: 12.31 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 15.4/8.4-7.7 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Efficiency: 77 % Power Factor: 81.5
Duty: Continuous Insulation Class: B
Design Code: L KVA Code: H
Frame: 56J Enclosure: Explosion Proof Fan cooled
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3C

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 2 Rotation: Fixed Clockwise
Resistance Main: 0 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: J Overall Length: 14.95 in
Frame Length: 7.31 in Shaft Diameter: 0.625 in
Shaft Extension: 2.44 in Assembly/Box Mounting: F1 ONLY

Load Characteristics

Curvepoint Current (Amps) Current (%) Torque (LB-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 7.70 100.0 2.25 100.0 3,480 1.44 0.0 1.50
Break-Down 24.80 322.0 5.38 239.0 3,100 4.80 0.0 1.50
Locked-Rotor 42.20 548.0 4.40 196.0 0 7.90 0.0 1.50
Pull-Up 42.10 547.0 3.74 166.0 229 7.90 0.0 1.50

Speed Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 % 175 % 200 %
Current (Amps) 3.12 4.00 4.60 5.95 7.70 8.85 9.50 11.50 14.40 20.70
Rated Output (KW) 0.27 0.46 0.76 1.10 1.44 1.67 1.84 2.27 2.85 4.06
Efficiency (%) 0.0 60.1 72.8 76.6 77.0 76.9 75.8 73.4 68.4 54.8
Power Factor (%) 24.0 30.2 71.8 80.4 81.5 82.0 84.2 85.8 86.1 85.3
Speed (RPM) 3,600 3,565 3,540 3,510 3,480 3,462 3,445 3,400 3,330 3,130
Temp. Rise @ FL 0.0 0.0 0.0 0.0 60.0 65.0 0.0 0.0 0.0 0.0
Torque (LB-FT) 0.00 0.54 1.10 1.69 2.25 2.61 2.85 3.45 4.12 5.00
