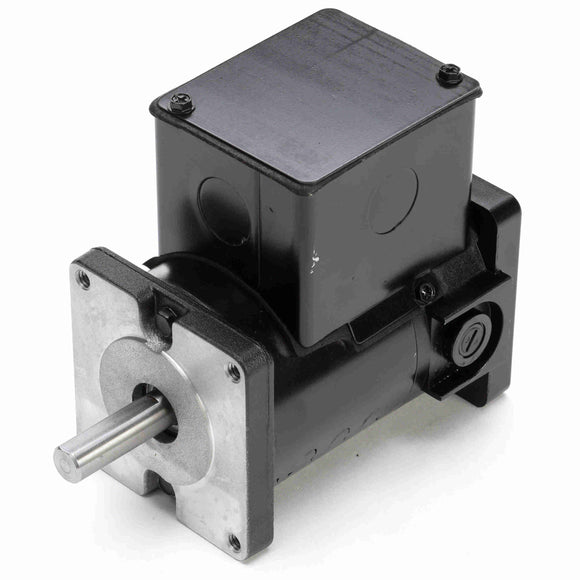

Features
- Compact, space saving design
- Standard conduit box simplifies connections
- Ball bearing construction; Long life brushes
- External access to brushes allows for easy replacement further prolonging motor life
- High starting torques
- Linear speed torque characteristics throughout the speed range
- Capable of dynamic braking for faster stops
- Reversible rotation
- Simple two lead connection
- Class F insulated with high temperature welded commutators
General Specifications
| UPC: | 691720090787 | Weight: | 7 LB |
| Packaged Length: | 16.5 IN | Packaged Width: | 7.68 IN |
| Packaged Height: | 6.69 IN |
Nameplate Specifications
| Output HP: | 0.07-0.14 Hp | Output KW: | 0.05-0.1 kW |
| Voltage: | 12-24 V | Current: | 7.7 A |
| Speed: | 1750-4200 rpm | Service Factor: | 1 |
| Efficiency: | 53 % | Duty: | Continuous |
| Insulation Class: | F | Frame: | 31 |
| Enclosure: | Totally Enclosed Non Ventilated | Thermal Protection: | No |
| Ambient Temperature: | 40 °C | Drive End Bearing Size: | 6201-13 |
| Opp Drive End Bearing Size: | 6201-13 | UL: | Recognized |
| CSA: | Y | CE: | Y |
Technical Specifications
| Rotation: | Reversible | Mounting: | Round |
| Overall Length: | 6.45 in | Frame Length: | 2.50 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 1.5 in |
