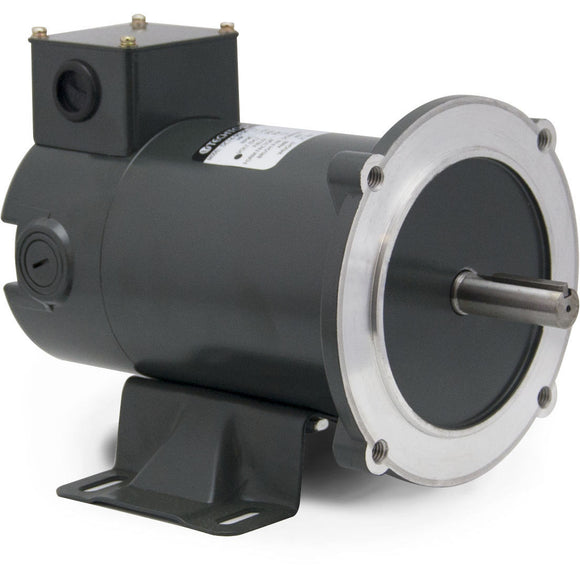

DC18-12-63-NV Techtop 1/8HP Permanant Magnet 12VDC Electric Motor, 1800RPM

$428.00

Shipping calculated at checkout

TechTop Industries, Inc. SKU: DC18-12-63-NV

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Techtop Permanent Magnet DC Motors

Designed for use on SCR and PWM type direct current adjustable speed drives and on across-the-line DC controls. Ideal applications include conveyors, turntables, packaging or anywhere adjustable speed and constant torque is required.

Specifications
  • 1/8 HP
  • DC18-12-63-NV Model Number
  • 1800 Sync. Speed
  • 63B14 Frame
  • 12 VDC
  • TENV Enclosure
    (Totally Enclosed, Non-Ventilated)
  • 10.7 Full Load Amps (A)
  • 6 lbs
Standard Features
  • SCR Rated
  • 20:1 Constant Torque Speed Range
  • 1.15 Service Factor
  • Rolled Steel Frame Construction
  • Bolt-on Removable Base
  • Double Shielded Ball Bearings
  • 1045 Steel Shaft
  • Corrosion Resistant Hardware
  • Continuous (S1) Duty
  • Ambient Temperatures up to 40°C
  • Installation up to 3300 feet (1000 MASL)
  • IP55 Rated Ingress Protection
  • Class F Insulation
  • Class B Temperature Rise
  • 12 Month Warranty
