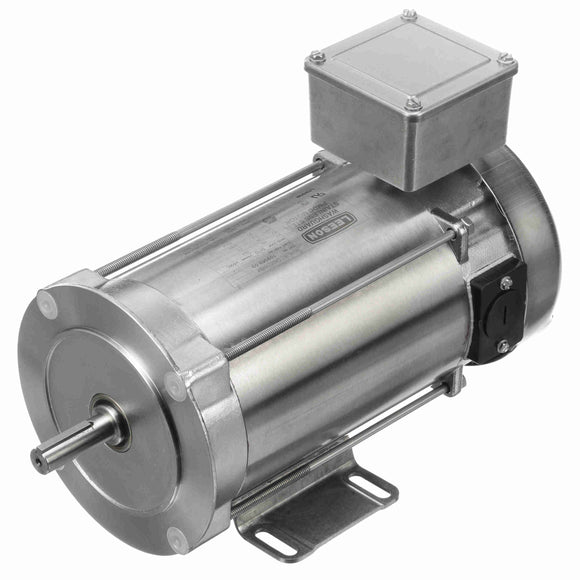

109069.00 Leeson 1/2HP Washguard Electric Motor, 1750RPM-1

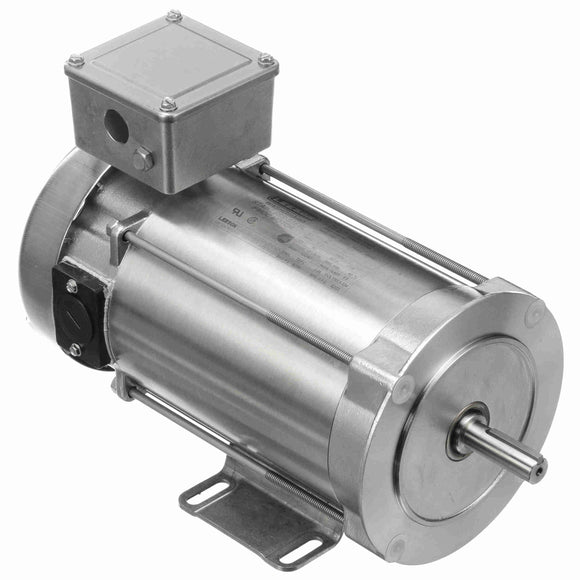

109069.00 Leeson 1/2HP Washguard Electric Motor, 1750RPM-2

109069.00 Leeson 1/2HP Washguard Electric Motor, 1750RPM

$3,047.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 109069.00 Barcode: 691720342947

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • End shields are O-ring sealed to the frame
  • Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion
  • New conduit box mounting system provides optimum sealing
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • All Washdown Duty motors have Class F Insulation
  • LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
  • All sealing components are Viton® for superior chemical resistance
  • Full fact nameplate is laser etched on the motor frame

General Specifications

General Specifications
C4D17WK9A 109069.00
1/2HP.1750RPM.US56C.TEFC.90V.CONT.40C.1.0SF.RIGID C.DC WASHGUARD ALL-STAINLESS.C4D17WK9A NEMA
No

Nameplate Specifications

Nameplate Specifications
0.50 HP 0.37 kW
90 V 5.2 A
1750 RPM 1
79 % Continuous
F US56C
Totally Enclosed Fan Cooled No
40 °C 6205
6203
Recognized
Y N

Technical Specifications

Technical Specifications
Reversible Rigid C base
15.37 in 7.25 in
0.625 in 2.05 in
691720342947 46.00 LB
