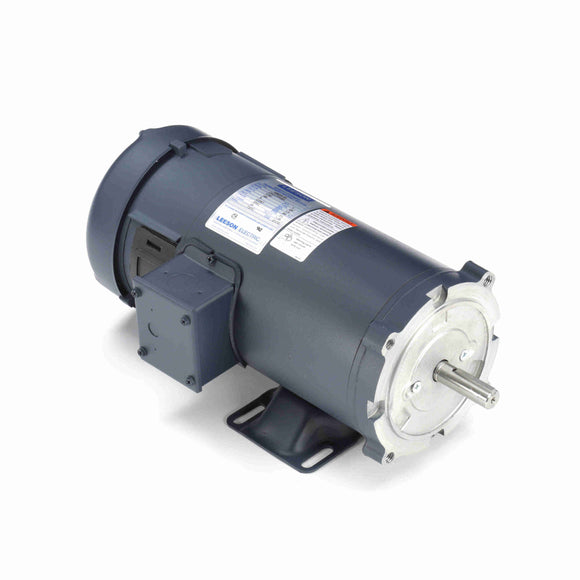

108023.00 Leeson 1HP DC Electric Motor, 1750 RPM

$2,078.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 108023.00 Barcode: 691720006689

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Brush holder design provides easy access to brushes
  • Large oversized brushes assure long brush life
  • Removable bolt-on base; NEMA C face designs
  • 115 or 230 volt input power ratings – 90 / 180 volt output; Capable of dynamic braking
  • PWM or SCR type controller rated; High starting torque
  • Permanently lubricated sealed bearings
  • LEESON SCR controls available to power motors; High starting torque
  • Higher HP and speed achievable using PWM type DC controls
  • UL and CSA Listed; Meets NEMA MG1 standards
  • Dynamically balanced armatures; 30:1 constant torque operation

General Specifications

General Specifications
Model : C4D17FK6J Catalog No : 108023.00
Part Description : ..1HP..1750RPM.S56C.TEFC.180V...CONT.40C.1.0SF.RIGID C.C4D17FK6.....DC NEMA........ Category : SCR
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1 Hp Output KW : 0.75 kW
Voltage : 180 V Current : 5.0 A
Speed : 1750 rpm Service Factor : 1
Efficiency : 85 % Duty : Continuous
Insulation Class : F Frame : S56C
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N

Technical Specifications

Technical Specifications
Rotation : Reversible Mounting : Rigid C base
Overall Length : 14.82 in Frame Length : 7.47 in
Shaft Diameter : 0.625 in Shaft Extension : 2.06 in
UPC : 691720006689 Weight : 41.00 LB
