Features
- Brush holder design provides easy access to brushes
- Large oversized brushes assure long brush life
- Removable bolt-on base; NEMA C face designs
- 115 or 230 volt input power ratings – 90 / 180 volt output; Capable of dynamic braking
- PWM or SCR type controller rated; High starting torque
- Permanently lubricated sealed bearings
- LEESON SCR controls available to power motors; High starting torque
- Higher HP and speed achievable using PWM type DC controls
- UL and CSA Listed; Meets NEMA MG1 standards
- Dynamically balanced armatures; 30:1 constant torque operation
General Specifications

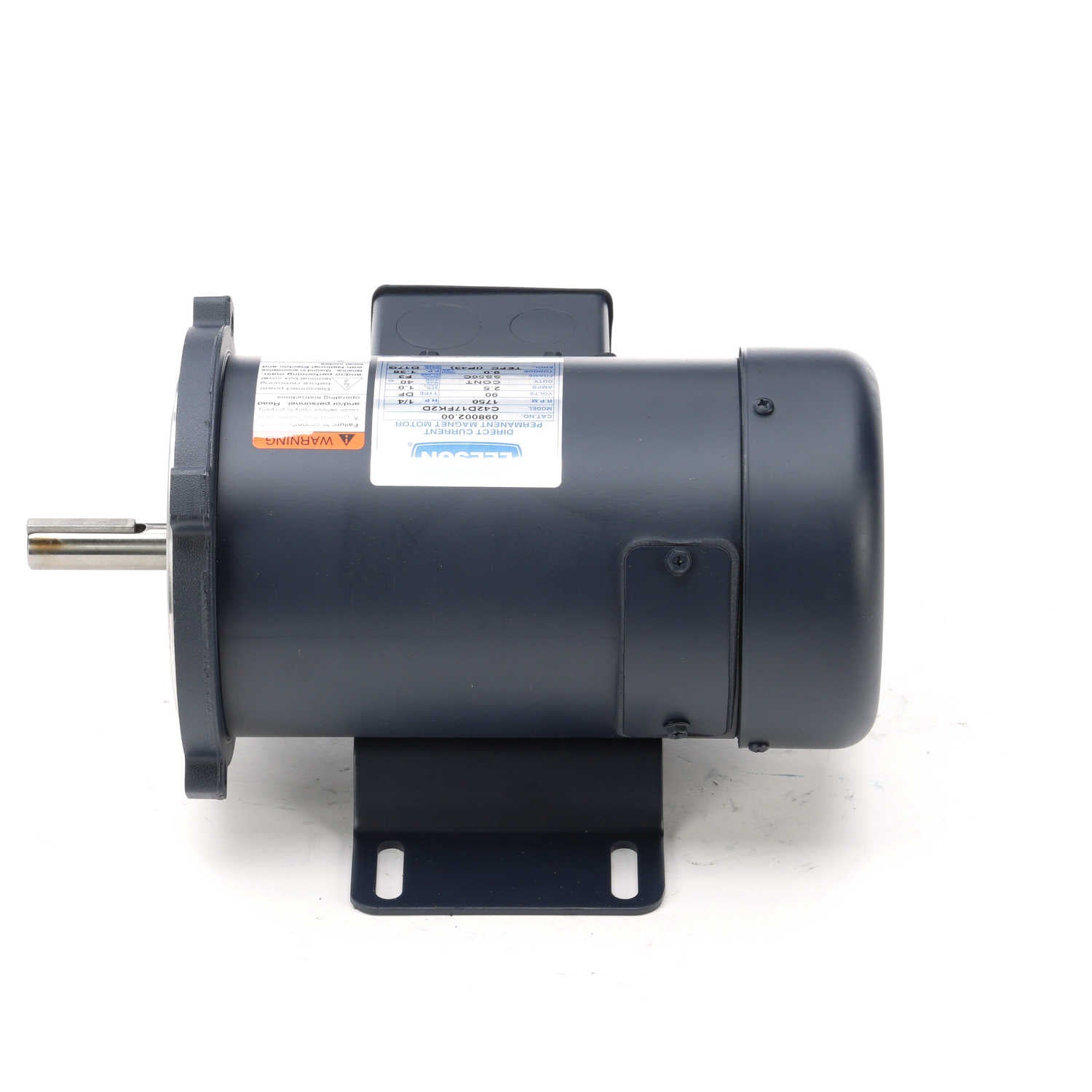

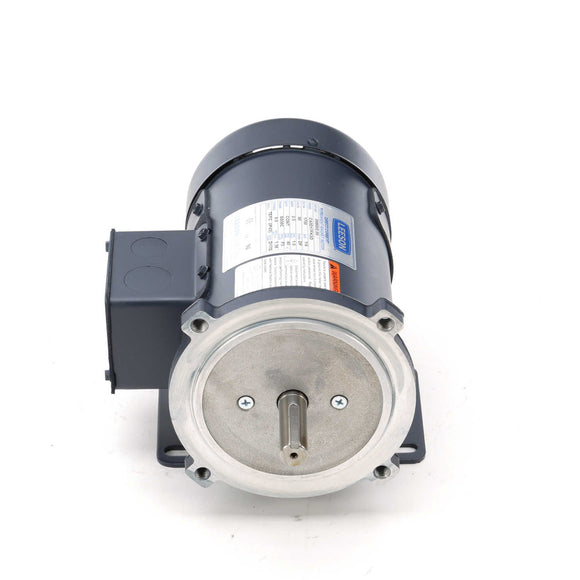

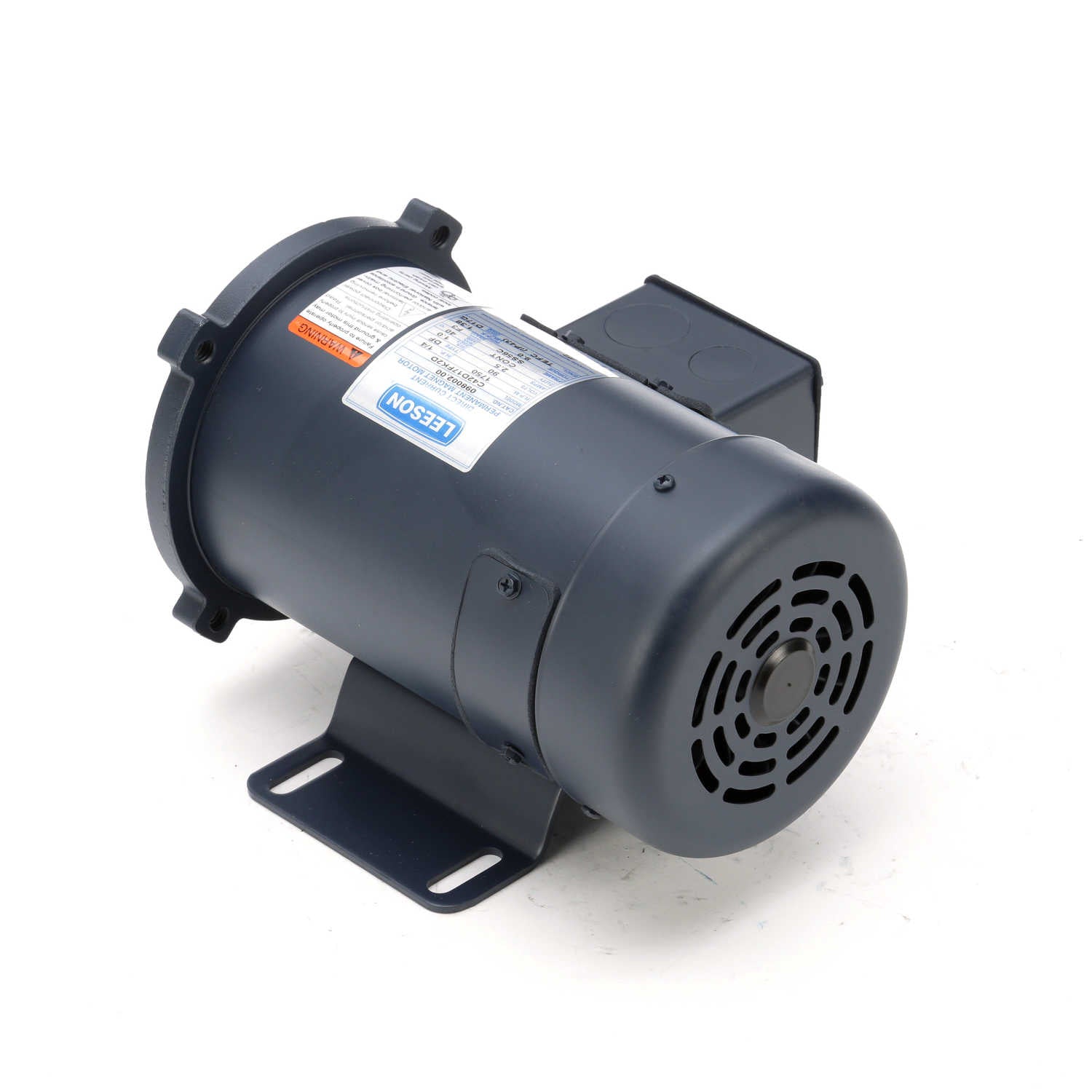

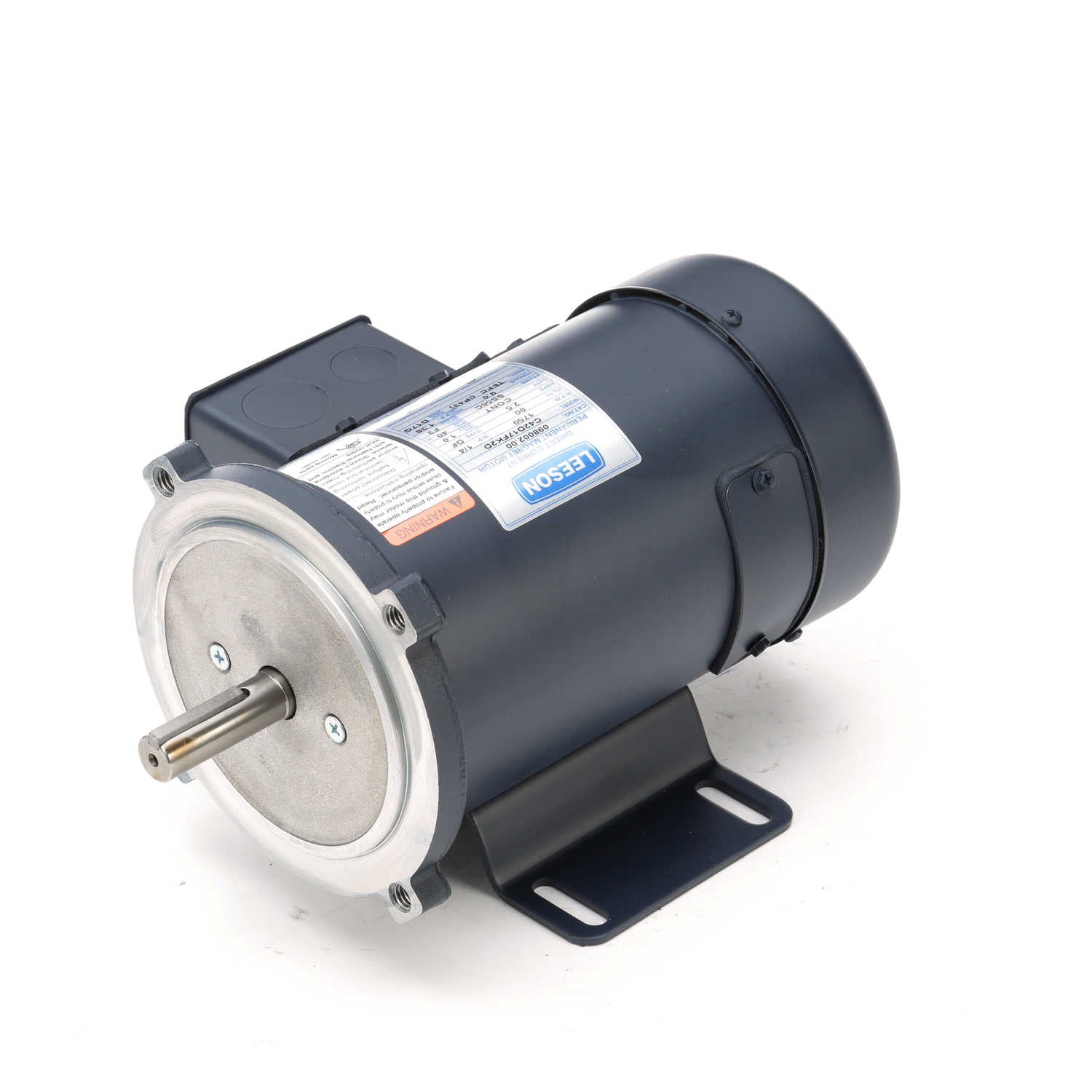

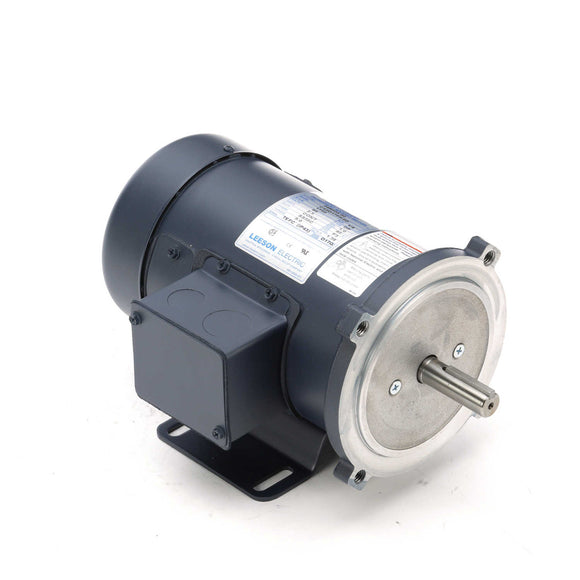

| Model : | C42D17FK2D | Catalog No : | 098002.00 |
| Part Description : | 1/4HP.1750RPM.LSS56C.TEFC.90V.CONT.40C.1.0SF.RIGID C.DC NEMA.C42D17FK2D | Category : | SCR |
| Stock : | No |
Nameplate Specifications
| Output HP : | 0.25 Hp | Output KW : | 0.19 kW |
| Voltage : | 90 V | Current : | 2.5 A |
| Speed : | 1750 rpm | Service Factor : | 1 |
| Efficiency : | 78.5 % | Duty : | Continuous |
| Insulation Class : | F | Frame : | SS56C |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
Technical Specifications
| Rotation : | Reversible | Mounting : | Rigid C base |
| Overall Length : | 10.81 in | Frame Length : | 6.50 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 2.06 in |
| UPC : | 691720000939 | Weight : | 21.00 LB |
