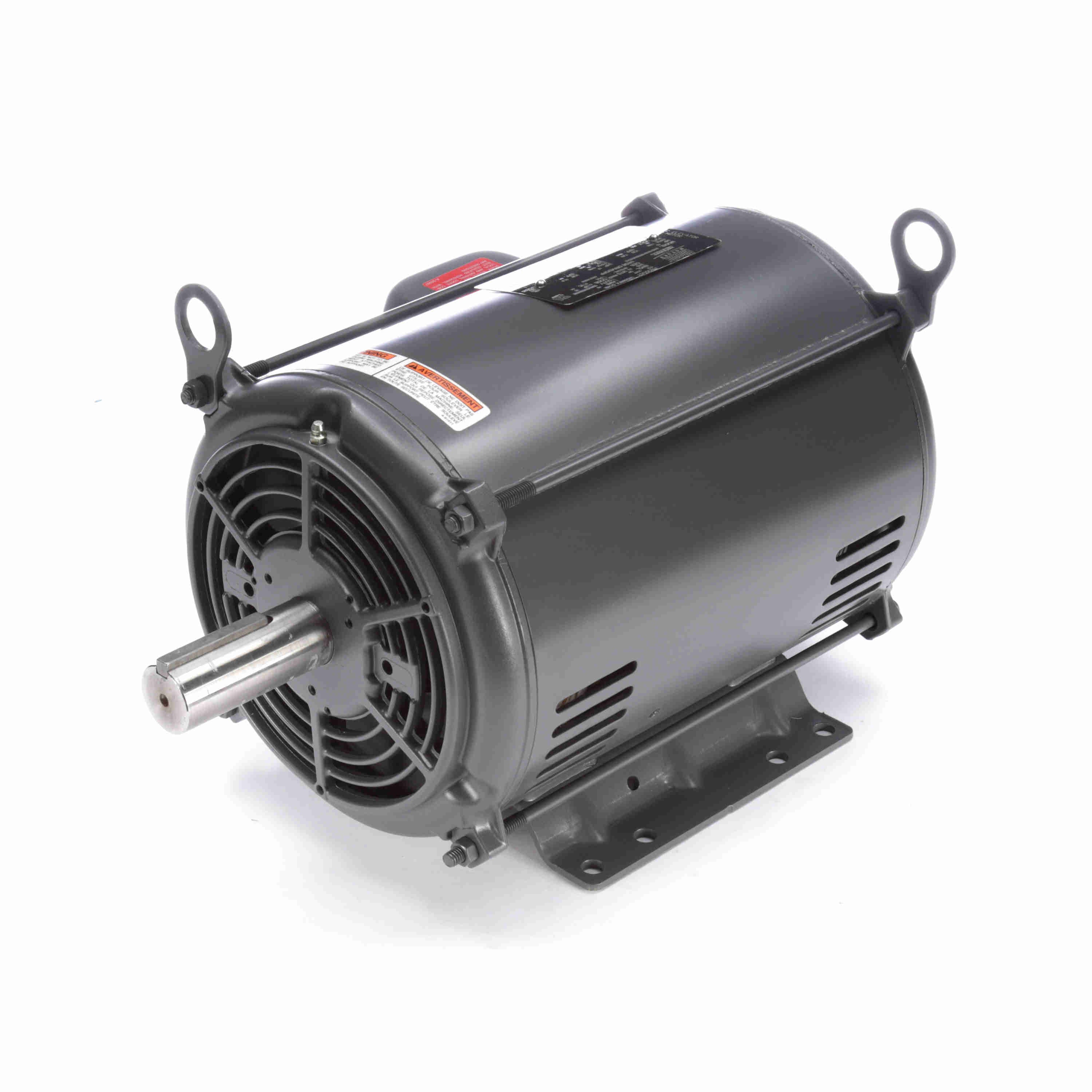

LM28867 Lincoln 10HP Elevator Duty Electric Motor, 1800RPM-1

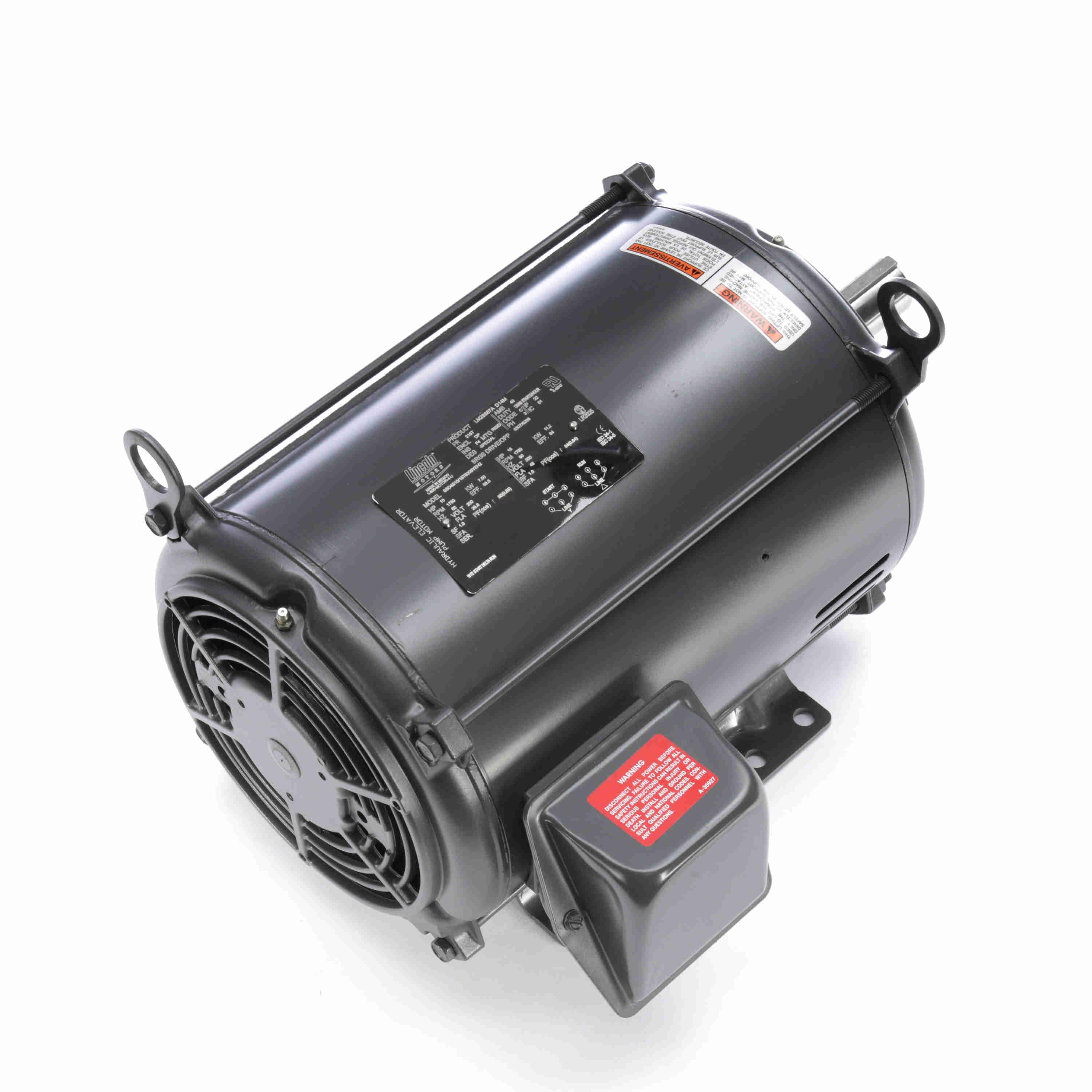

LM28867 Lincoln 10HP Elevator Duty Electric Motor, 1800RPM-2
LM28867 Lincoln 10HP Elevator Duty Electric Motor, 1800RPM-3
LM28867 Lincoln 10HP Elevator Duty Electric Motor, 1800RPM-4

LM28867 Lincoln 10HP Elevator Duty Electric Motor, 1800RPM

$999.97

Shipping calculated at checkout

Lincoln Motors SKU: LM28867 Barcode: 691720103128

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Dual rated nameplates for 80 & 120 starts/hour
  • Designed for belt driven pumps
  • Wye Start/Delta Run
  • Class F Insulated
  • 40° C ambient
  • F-1 mounting
  • Ball bearings with grease fittings and automatic relief
  • NEMA dimensions
  • UL recognized component listing and CSA approved
  • Constructed for low noise and low vibration

General Specifications

UPC: 691720103128 Weight: 128.00 LB
Packaged Length: 16.38 IN Packaged Width: 10.5 IN
Packaged Height: 8.12 IN

Nameplate Specifications

Output HP: 10 Hp Output KW: 7.5 kW
Frequency: 60 Hz Voltage: 200 V
Current: 28.8 A Speed: 1750 rpm
Service Factor: 1 Phase: 3
Efficiency: 89.5 % Power Factor: 85
Duty: 120/80 Starts/Hour Insulation Class: F
Design Code: INV KVA Code: C
Frame: 215T Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6307 Opp Drive End Bearing Size: 6206
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Wye Start Delta Run
Poles: 4 Rotation: Reversible
Resistance Main: 1.31 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 17.29 in
Frame Length: 11.15 in Shaft Diameter: 1.375 in
Shaft Extension: 3.38 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
No Load 4.00 32.0 0.00 0.0 1,800 10.00
Break-Down 48.00 384.0 78.00 260.0 1,510 10.00
Pull-Up 75.00 600.0 48.00 160.0 900 10.00
Locked-Rotor 74.00 592.0 52.00 173.0 0 46.0 10.00
2/3 70.00 560.0 55.00 183.0 1,200 10.00
Full Load 12.50 100.0 30.00 100.0 1,755 10.00
1/3 78.00 624.0 45.00 150.0 600 10.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 9.20 11.50 16.10 21.85 28.75 32.66 35.65
Rated Output (KW) 0.20 2.10 4.10 6.30 8.40 9.70 10.60
Efficiency (%) 0.0 88.0 88.5 89.5 89.5 88.5 87.5
Power Factor (%) 6.5 54.0 74.0 85.0 85.0 86.0 85.5
Speed (RPM) 1,800 1,790 1,780 1,765 1,750 1,745 1,740
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 7.50 15.00 22.50 30.00 34.50 37.50
