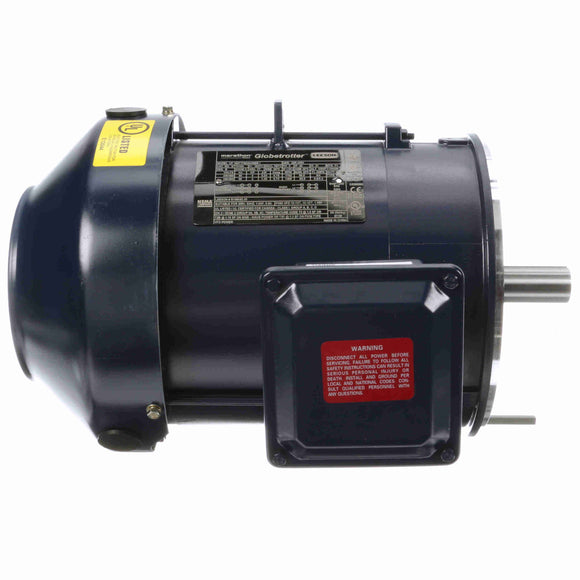

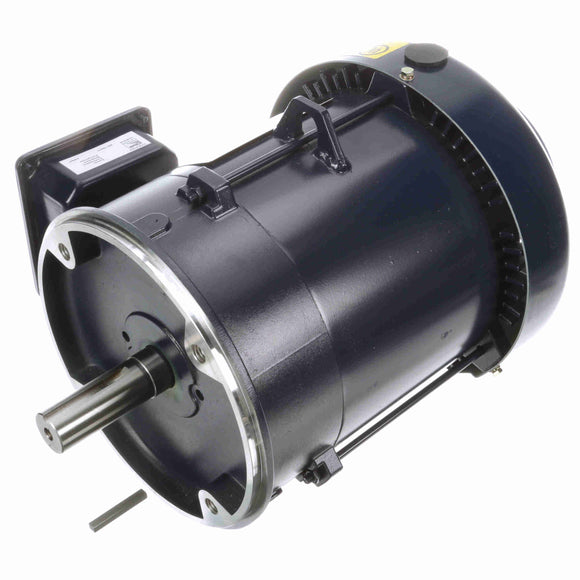

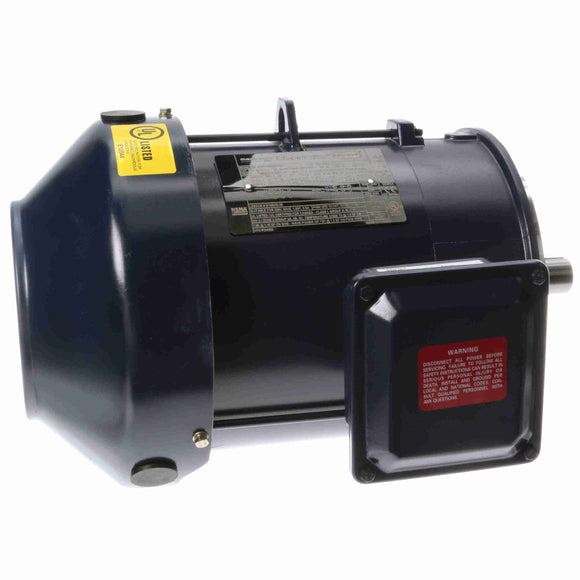

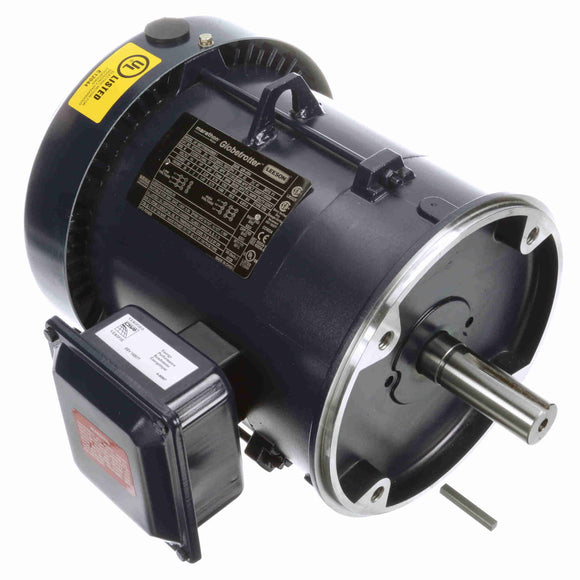

Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
- IP55 enclosure on cast iron frames
- Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
- Class F Insulation
- Standard F1, reversible to F2 assembly. Dual frame mounting holes.
General Specifications
| UPC: | 722856063724 | Weight: | 87.00 LB |
| Packaged Length: | 16.53 IN | Packaged Width: | 14.48 IN |
| Packaged Height: | 18.42 IN |
Nameplate Specifications
| Output HP: | 3 Hp | Output KW: | 2.2 kW |
| Frequency: | 60 Hz | Voltage: | 230/460 V |
| Current: | 8.0/4.0 A | Speed: | 1762 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 89.5 % | Power Factor: | 78 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | K |
| Frame: | 182TC | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6205 |
| UL: | Listed | CSA: | Y |
| CE: | Y | IP Code: | 43 |
Technical Specifications
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | 4.15 Ohms | Mounting: | Round |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | T | Overall Length: | 15.85 in |
| Frame Length: | 5.85 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 2.75 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| 2/3 | 26.00 | 20.00 | 1,200 | 3.00 | ||||
| Full Load | 4.00 | 100.0 | 9.00 | 100.0 | 1,762 | 78.0 | 3.00 | |
| Break-Down | 18.00 | 29.00 | 320.0 | 1,675 | 72.0 | 3.00 | ||
| No Load | 2.30 | 0.00 | 0.0 | 1,800 | 7.0 | 3.00 | ||
| Locked-Rotor | 32.00 | 20.00 | 220.0 | 0 | 48.0 | 3.00 | ||
| Pull-Up | 28.00 | 17.00 | 900 | 3.00 | ||||
| 1/3 | 30.00 | 17.00 | 600 | 3.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 2.30 | 2.40 | 2.80 | 3.40 | 4.00 | 4.50 | 4.80 |
| Rated Output (KW) | 0.19 | 0.77 | 1.35 | 1.96 | 2.59 | 2.98 | 3.25 |
| Efficiency (%) | 0.0 | 79.5 | 86.5 | 88.5 | 89.5 | 89.5 | 88.5 |
| Power Factor (%) | 7.0 | 37.0 | 57.0 | 70.0 | 78.0 | 80.0 | 82.0 |
| Speed (RPM) | 1,800 | 1,790 | 1,782 | 1,772 | 1,762 | 1,758 | 1,755 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 60.0 | 80.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 2.20 | 4.40 | 6.70 | 9.00 | 10.30 | 11.20 |
