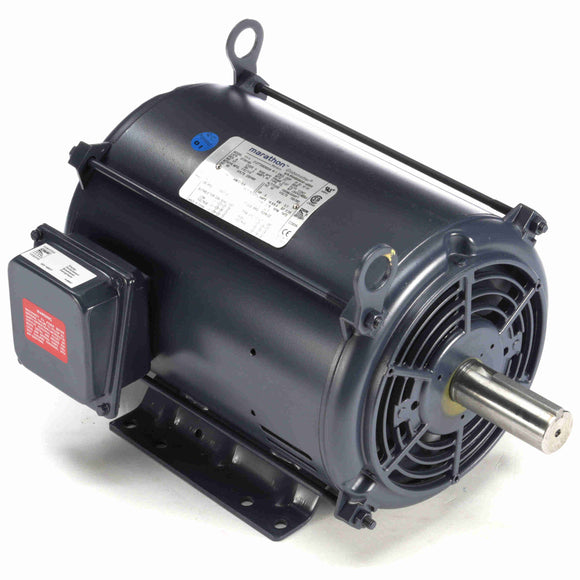

GT0016A Marathon 7.5HP Globetrotter Electric Motor, 1800RPM

$1,349.97 USD $2,183.00 USD Save $833.03 USD

Shipping calculated at checkout

Marathon Electric SKU: GT0016A Barcode: 722856060150

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • 182T-365T models steel frame, 404T-449T models cast iron frame
  • Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.

General Specifications

General Specifications
Model : 213TTDBD6026 Catalog No : GT0016A
Part Description : 7 1/2,1800,DP,213T,3/60/230/460 Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 7.50 HP Output KW : 5.6 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 19.8/9.9 A Speed : 1766 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 91 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : H Frame : 213T
Enclosure : Drip Proof Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6307
Opp Drive End Bearing Size : 6206 UL : Recognized
CSA : Y CE : Y
IP Code : 22

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated Starting Method : Line Or Inverter
Poles : 4 Rotation : Reversible
Mounting : Rigid Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 17.52 in Shaft Diameter : 1.375 in
Shaft Extension : 3.38 in Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856060150 Weight : 133.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 54.00 545.0 37.50 168.0 900 0.00 0.0 7.50
2/3 49.00 495.0 46.00 206.0 1,200 0.00 0.0 7.50
No Load 5.00 51.0 0.00 0.0 1,800 0.00 6.0 7.50
Full Load 9.90 100.0 22.30 100.0 1,766 0.00 79.0 7.50
Break-Down 34.00 343.0 57.00 256.0 1,585 0.00 68.0 7.50
1/3 57.00 576.0 37.00 166.0 600 0.00 0.0 7.50
Locked-Rotor 60.00 606.0 44.00 197.0 0 0.00 45.0 7.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 5.00
  • 0.450
  • 0.0
  • 11.3
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 5.40
  • 1.600
  • 87.5
  • 37.2
  • 1,792
  • 0.0
  • 5.50
  • 50 %
  • 6.40
  • 3.100
  • 90.0
  • 60.8
  • 1,785
  • 0.0
  • 11.00
  • 75 %
  • 8.00
  • 4.600
  • 91.5
  • 72.2
  • 1,775
  • 0.0
  • 16.70
  • 100 %
  • 9.90
  • 6.100
  • 91.0
  • 77.3
  • 1,766
  • 40.0
  • 22.30
  • 115 %
  • 11.20
  • 7.100
  • 90.8
  • 79.6
  • 1,760
  • 55.0
  • 25.80
  • 125 %
  • 12.10
  • 7.800
  • 89.5
  • 80.9
  • 1,755
  • 65.0
  • 28.00
