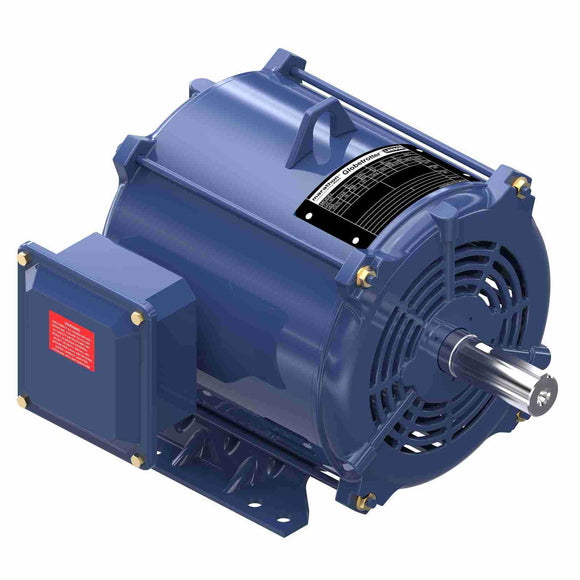

GT0015A Marathon 7.5HP Globetrotter Electric Motor, 3600RPM-1

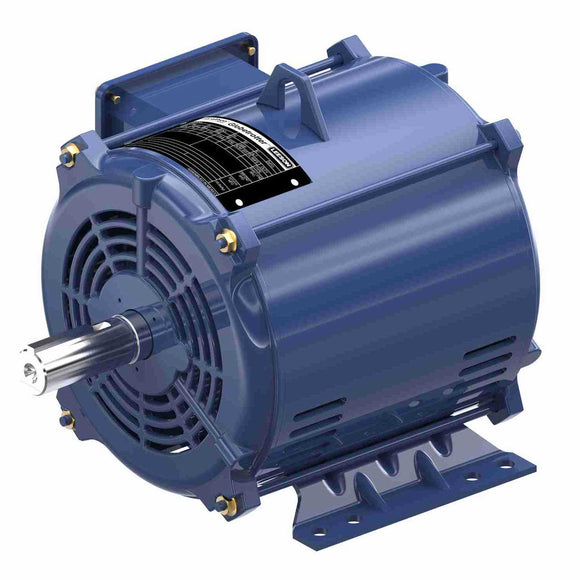

GT0015A Marathon 7.5HP Globetrotter Electric Motor, 3600RPM-2

GT0015A Marathon 7.5HP Globetrotter Electric Motor, 3600RPM

$839.97

Shipping calculated at checkout

Marathon Electric (Regal Beloit Corp) SKU: 184TTDBD6001 Barcode: 722856068835

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • 182T-365T models steel frame, 404T-449T models cast iron frame
  • VARIABLE 20:1
  • Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
  • Inverter Duty 20:1 Variable Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.

General Specifications

UPC: 722856068835 Weight: 63.95 LB
Packaged Length: 15.25 IN Packaged Width: 15 IN
Packaged Height: 13 IN

Nameplate Specifications

Output HP: 7.50 Hp Output KW: 5.6 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 19.6-18.4/9.2 A Speed: 3510 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 88.5 % Power Factor: 86
Duty: Continuous Insulation Class: F
Design Code: A KVA Code: J
Frame: 184T Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 2.455 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 13.25 in
Frame Length: 8.26 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (LB-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
2/3 55.00 485.0 22.50 205.0 2,400 7.50
No Load 4.30 37.0 0.00 0.0 3,600 9.0 7.50
Full Load 9.20 100.0 11.20 100.0 3,510 86.0 7.50
Locked-Rotor 66.00 675.0 23.00 205.0 0 59.0 7.50
Pull-Up 60.00 540.0 18.00 162.0 1,800 7.50
1/3 64.00 585.0 18.50 160.0 1,200 7.50
Break-Down 40.00 395.0 34.00 300.0 2,925 78.0 7.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 4.30 4.80 5.80 7.40 9.20 10.50 11.40
Rated Output (KW) 0.30 1.70 3.20 4.60 6.30 7.30 8.00
Efficiency (%) 0.0 81.5 87.5 88.5 88.5 87.5 86.5
Power Factor (%) 8.0 46.0 68.0 80.0 86.0 88.0 88.5
Speed (RPM) 3,600 3,575 3,555 3,535 3,510 3,495 3,485
Temp. Rise @ FL 0.0 0.0 0.0 0.0 65.0 85.0 105.0
Torque (LB-FT) 0.00 2.75 5.50 8.40 11.20 13.00 14.20
