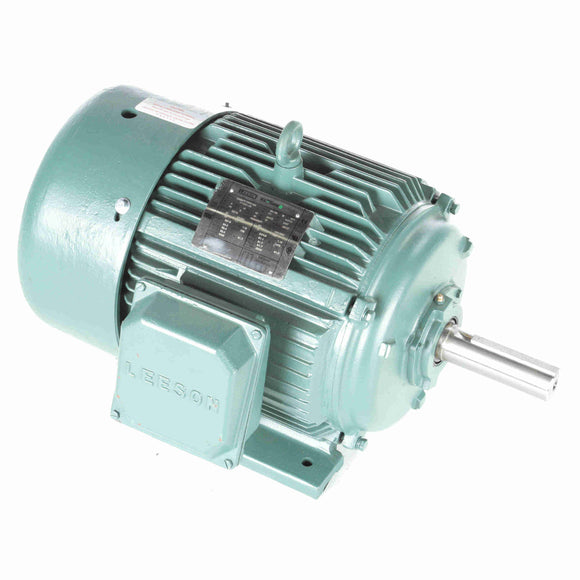

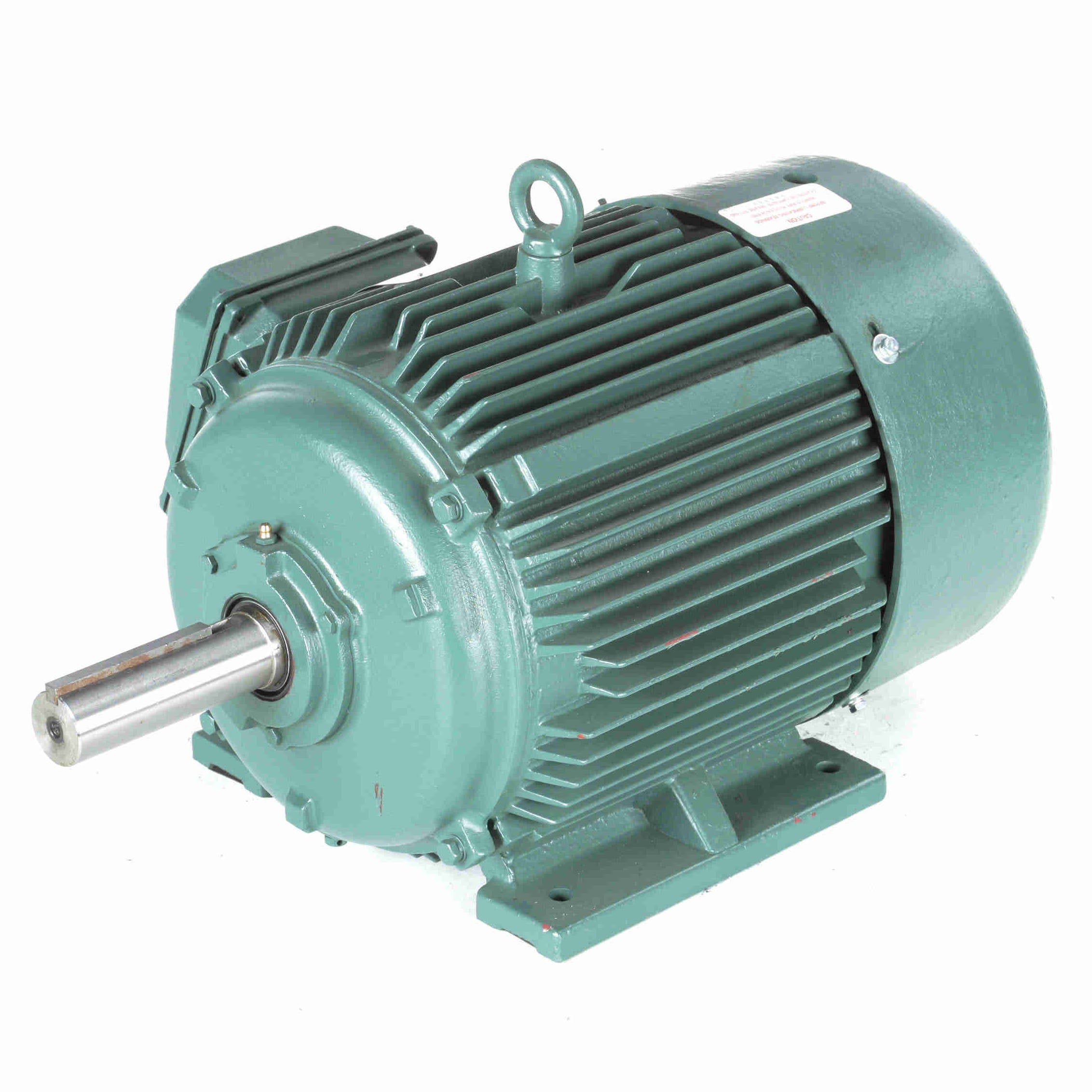

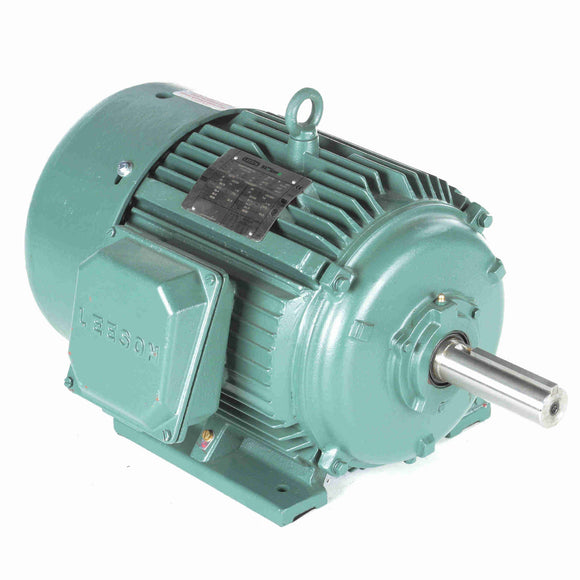

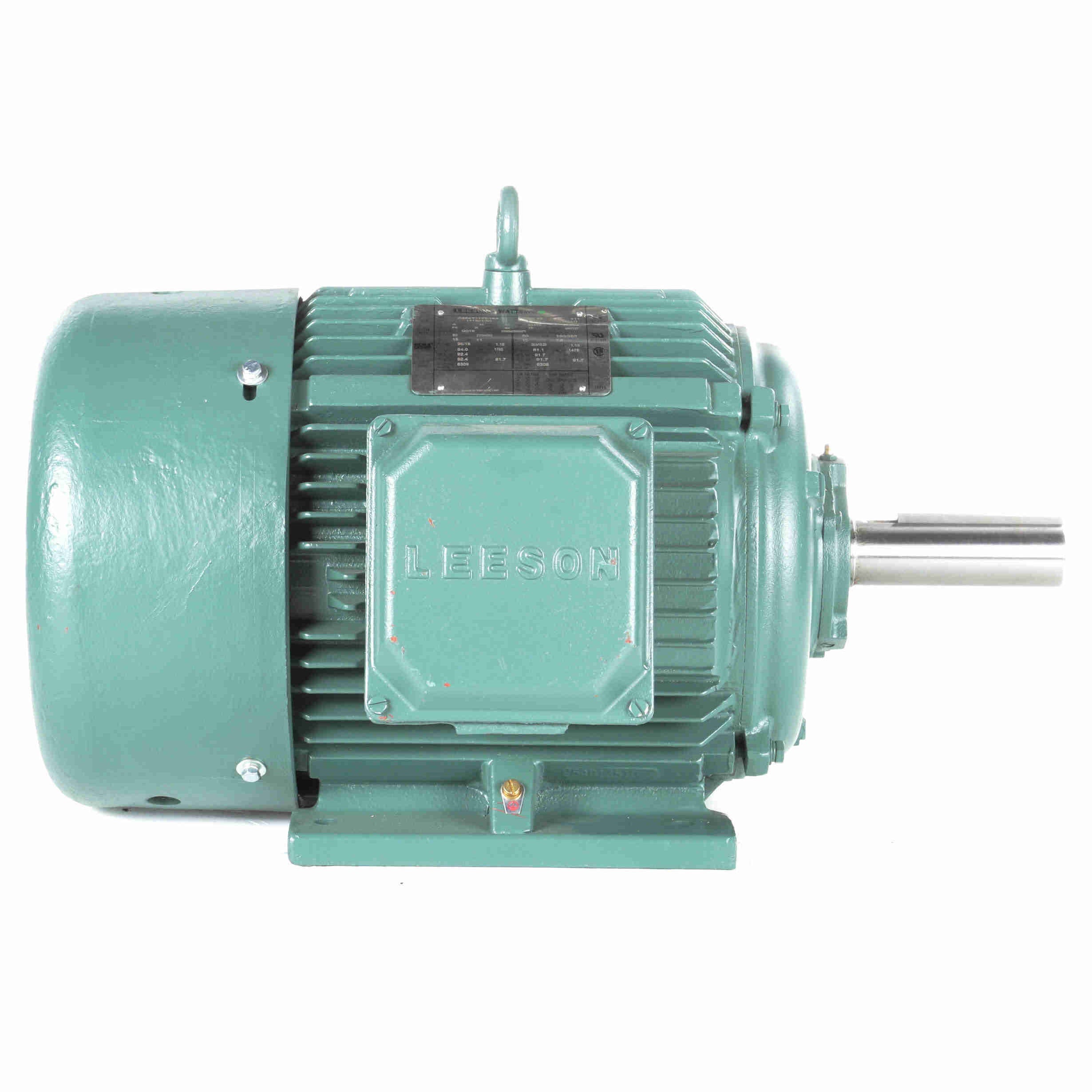

Features
- 1" longer shaft than NEMA standard
- Shaft seals both ends
- Premium efficient
- Epoxy Painted
- Normally closed T-stats
- Cast iron construction
General Specifications
| Model : | C254T17FK18A | Catalog No : | 171841.60 |
| Part Description : | ..15HP..1800RPM.254TZ.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......GRAIN DRYER........ | Category : | Grain Stirring |
| Stock : | No |
Nameplate Specifications
| Output HP : | 15 Hp | Output KW : | 11.2 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/460 V |
| Current : | 40.0-36.0/18.0 A | Speed : | 1765 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 92.4 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | A |
| KVA Code : | H | Frame : | 254TZ |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6309 |
| Opp Drive End Bearing Size : | 6308 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Squirrel Cage Inverter Rated | Starting Method : | Wye Start Delta Run Or Inverter |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Rigid base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Cast Iron | Shaft Type : | Single Special Extension |
| Overall Length : | 24.72 in | Shaft Diameter : | 1.625 in |
| Shaft Extension : | 4.99 in | Assembly/Box Mounting : | F1/F2 CAPABLE |
| UPC : | 691720053560 | Weight : | 295.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 140.00 | 757.0 | 126.00 | 284.0 | 0 | 15.00 | ||
| Pull-Up | 130.00 | 703.0 | 98.50 | 222.0 | 467 | 15.00 | ||
| Break-Down | 79.50 | 430.0 | 154.00 | 347.0 | 1,620 | 15.00 | ||
| Full Load | 18.50 | 100.0 | 44.50 | 100.0 | 1,775 | 15.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 8.00
- 0.380
- 0.0
- 6.0
- 1,800
- 0.0
- 0.00
- 25 %
- 9.30
- 3.200
- 86.5
- 43.5
- 1,794
- 0.0
- 11.00
- 50 %
- 11.50
- 6.100
- 91.7
- 67.5
- 1,788
- 0.0
- 22.00
- 75 %
- 14.60
- 9.100
- 92.4
- 78.0
- 1,780
- 0.0
- 33.20
- 100 %
- 18.00
- 12.100
- 92.4
- 84.0
- 1,775
- 45.0
- 44.60
- 115 %
- 21.00
- 14.000
- 91.7
- 85.0
- 1,770
- 60.0
- 51.30
- 125 %
- 22.50
- 15.200
- 91.7
- 85.5
- 1,765
- 0.0
- 55.70
- 150 %
- 27.10
- 18.420
- 91.0
- 87.0
- 1,760
- 0.0
- 67.20
