Features
- USDA-approved epoxy painted motors
- NEMA motors
- Rigid base and C face mount types
- BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
- 3-year warranty on encapsulated and premium efficient models
- UL recognized and CSA certified
- Double lip contact seals and v-ring seals used for shaft seals
- Washdown brakemotors and pump motors available
General Specifications

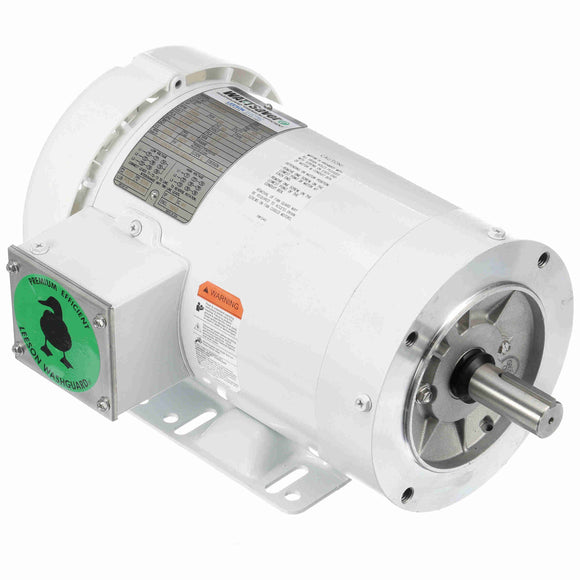

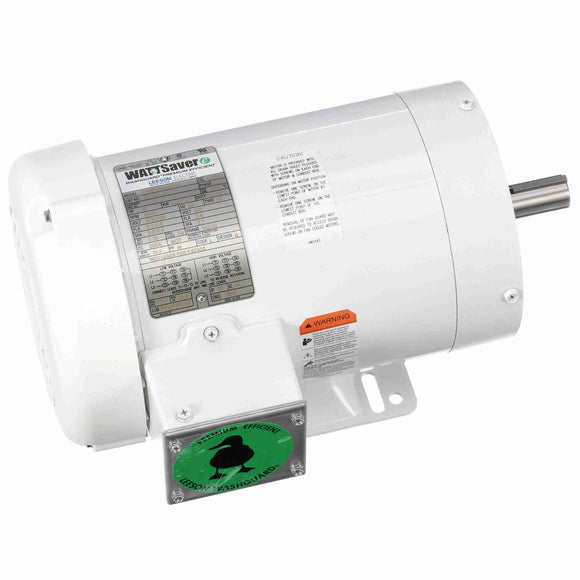

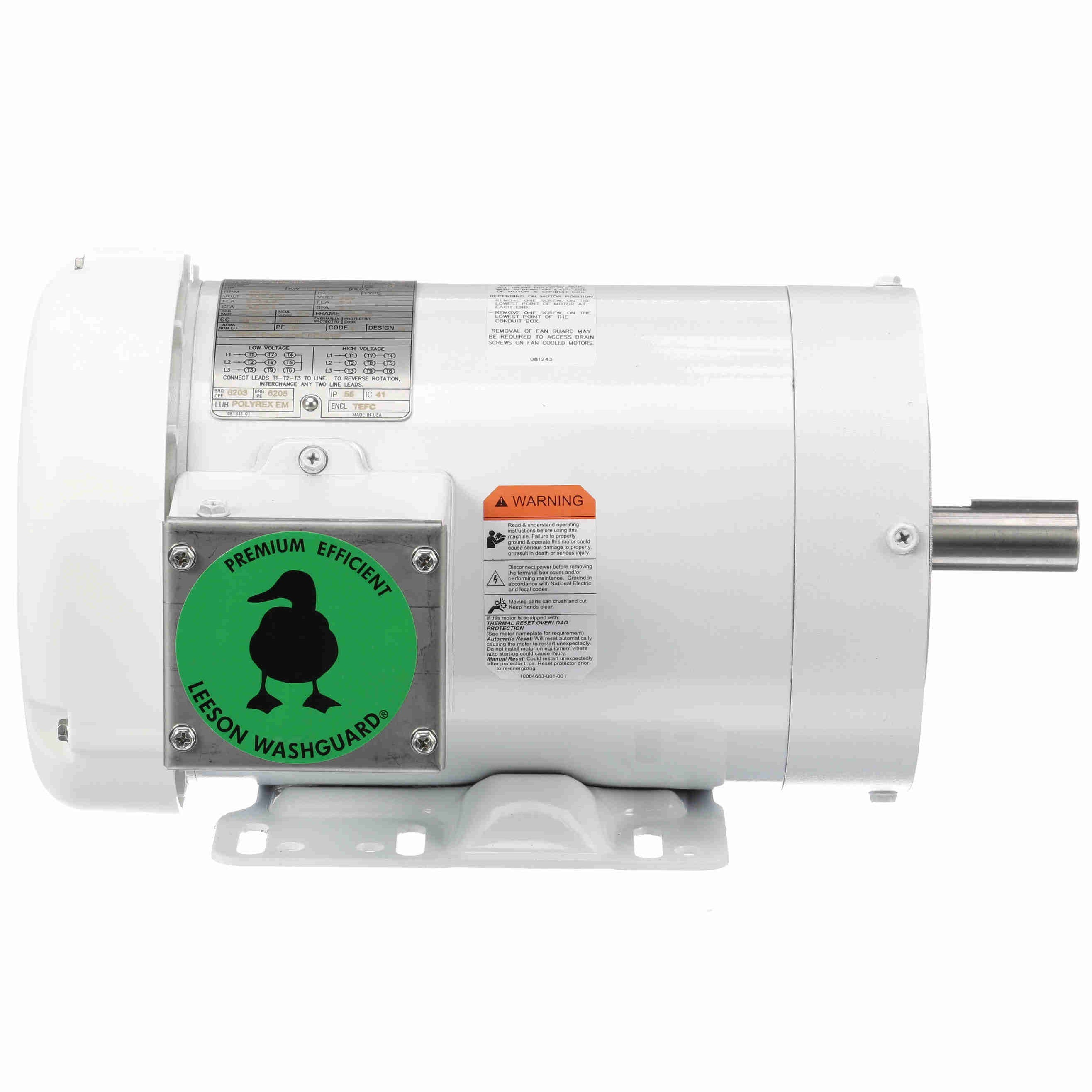

| Model : | C145T34WK37A | Catalog No : | 122185.00 |
| Part Description : | 2HP..3490RPM.145TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C FACE.C145T34WK37.....WASHDOWN DUTY.NONE....... | Category : | General Purpose |
| Stock : | No |
Nameplate Specifications
| Output HP : | 2 Hp | Output KW : | 1.5 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/460 V |
| Current : | 5.2-4.8/2.4 A | Speed : | 3490 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 85.5 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | A |
| KVA Code : | L | Frame : | 145TC |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Reversible |
| Mounting : | Rigid base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 13.43 in | Frame Length : | 7.50 in |
| Shaft Diameter : | 0.875 in | Shaft Extension : | 2 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720051986 |
| Weight : | 34.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 0.00 | 0.0 | 13.00 | 433.0 | 2,300 | 0.00 | 0.0 | 2.00 |
| Full Load | 2.40 | 0.0 | 3.00 | 100.0 | 3,511 | 0.00 | 0.0 | 2.00 |
| Pull-Up | 0.00 | 0.0 | 10.50 | 350.0 | 200 | 0.00 | 0.0 | 2.00 |
| Locked-Rotor | 26.00 | 0.0 | 10.80 | 360.0 | 0 | 0.00 | 0.0 | 2.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 0.95
- 0.127
- 0.0
- 16.8
- 3,598
- 0.0
- 0.00
- 25 %
- 1.10
- 0.391
- 97.6
- 44.6
- 3,581
- 0.0
- 0.75
- 50 %
- 1.54
- 0.886
- 85.5
- 72.2
- 3,555
- 0.0
- 1.50
- 75 %
- 1.99
- 1.302
- 86.7
- 82.1
- 3,533
- 0.0
- 2.25
- 100 %
- 2.44
- 1.718
- 87.1
- 88.4
- 3,511
- 46.0
- 3.00
- 125 %
- 2.99
- 2.128
- 87.3
- 89.3
- 3,487
- 0.0
- 3.75
- 150 %
- 3.55
- 2.562
- 86.3
- 90.6
- 3,460
- 0.0
- 4.50
