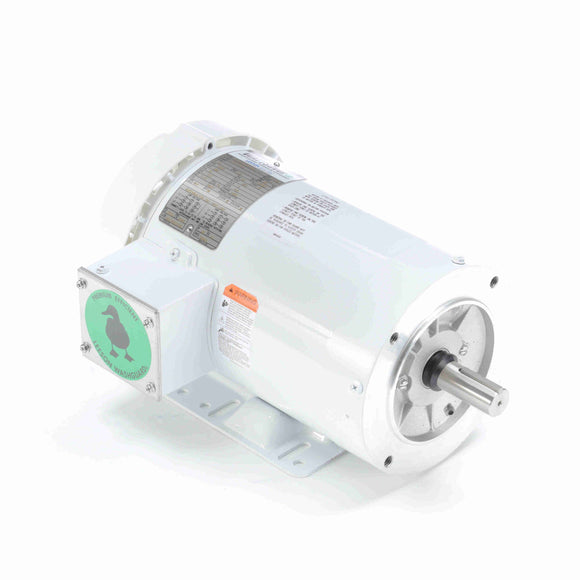

Leeson Washguard Electric Motor, 3 HP, 3600 RPM

$1,129.97

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 121870.00 Barcode: 691720989333

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
General Specifications
Model : C145T34WK28A Catalog No : 121870.00
Part Description : 121870.00..3HP..3490RPM.145TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C.C145T34WK28.....WASHGUARD.NOT....... Category : General Purpose
Stock : No
Nameplate Specifications
Output HP : 3 Hp Output KW : 2.2 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 8.0/4.0 A Speed : 3490 rpm
Service Factor : 1.15 Phase : 3
Efficiency : 86.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : N Frame : 145C
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : Y
IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 2 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 13.68 in Frame Length : 7.75 in
Shaft Diameter : 0.875 in Shaft Extension : 2 in
Assembly/Box Mounting : F1 ONLY UPC : 691720989333
Weight : 48.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 4.00 100.0 4.50 100.0 3,506 0.00 0.0 3.00
Pull-Up 0.00 0.0 17.50 389.0 0 0.00 0.0 3.00
Break-Down 0.00 0.0 20.83 463.0 2,400 0.00 0.0 3.00
Locked-Rotor 41.00 1,025.0 17.97 399.0 0 0.00 0.0 3.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.90
  • 0.270
  • 0.0
  • 17.8
  • 3,498
  • 0.0
  • 0.00
  • 25 %
  • 2.00
  • 0.752
  • 74.3
  • 47.2
  • 3,577
  • 0.0
  • 1.10
  • 50 %
  • 2.50
  • 1.347
  • 83.2
  • 67.6
  • 3,555
  • 0.0
  • 2.22
  • 75 %
  • 3.10
  • 1.957
  • 85.6
  • 79.2
  • 3,532
  • 0.0
  • 3.34
  • 100 %
  • 4.00
  • 2.598
  • 86.9
  • 81.0
  • 3,506
  • 60.0
  • 4.50
  • 115 %
  • 4.35
  • 2.968
  • 86.8
  • 86.2
  • 3,496
  • 0.0
  • 5.20
  • 125 %
  • 4.70
  • 3.240
  • 86.4
  • 86.5
  • 3,481
  • 0.0
  • 5.66
  • 150 %
  • 5.50
  • 3.920
  • 85.6
  • 89.5
  • 3,454
  • 0.0
  • 6.84
