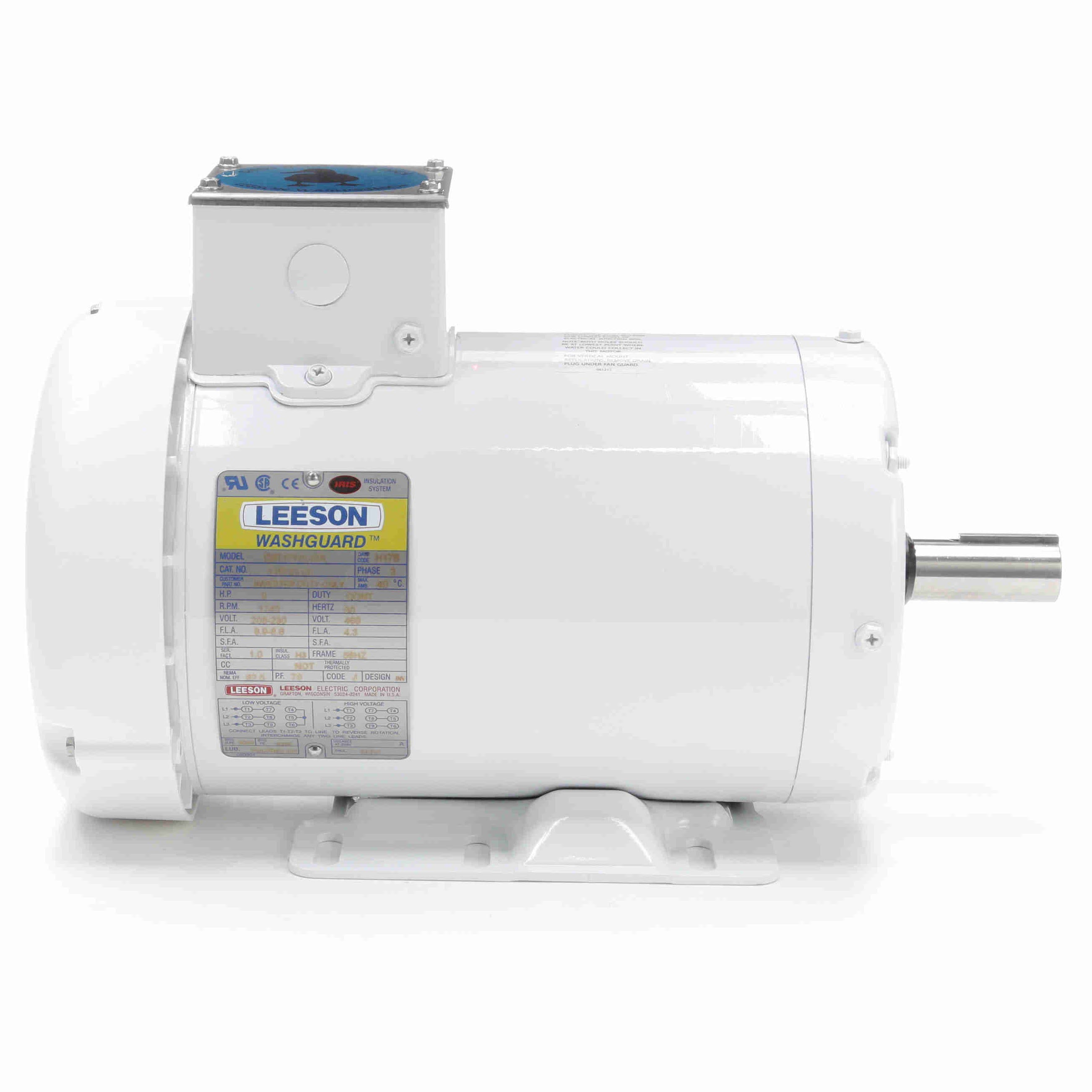

119783.00 Leeson 3HP Agriculture Duty Feather Picker Electric Motor, 1800RPM-1

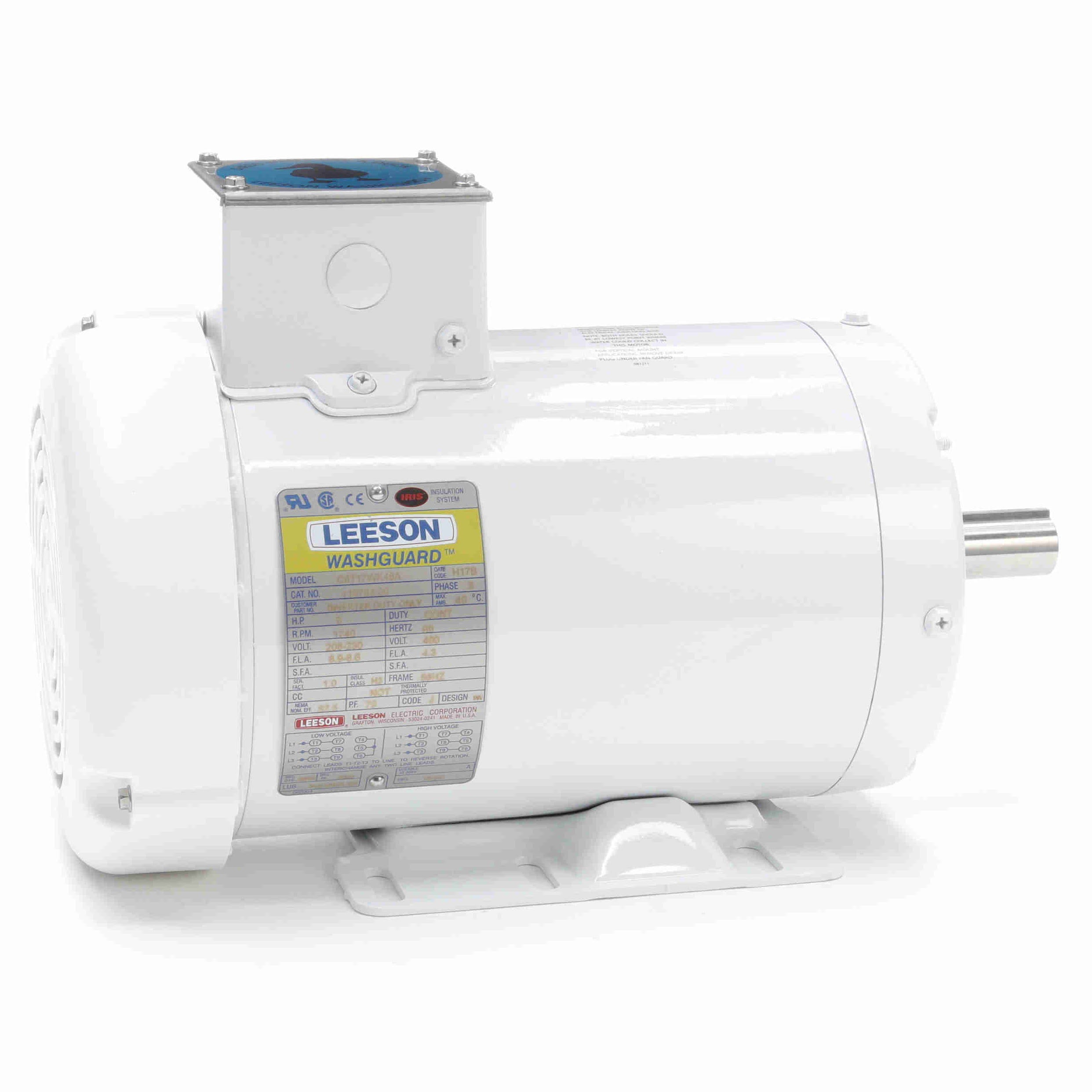

119783.00 Leeson 3HP Agriculture Duty Feather Picker Electric Motor, 1800RPM-2

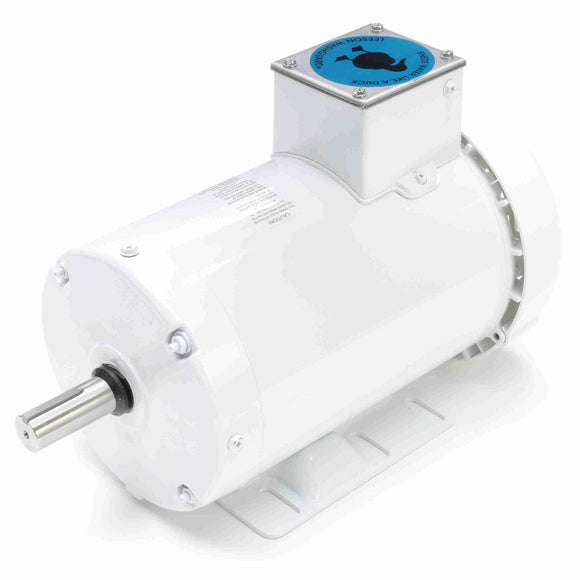

119783.00 Leeson 3HP Agriculture Duty Feather Picker Electric Motor, 1800RPM-3

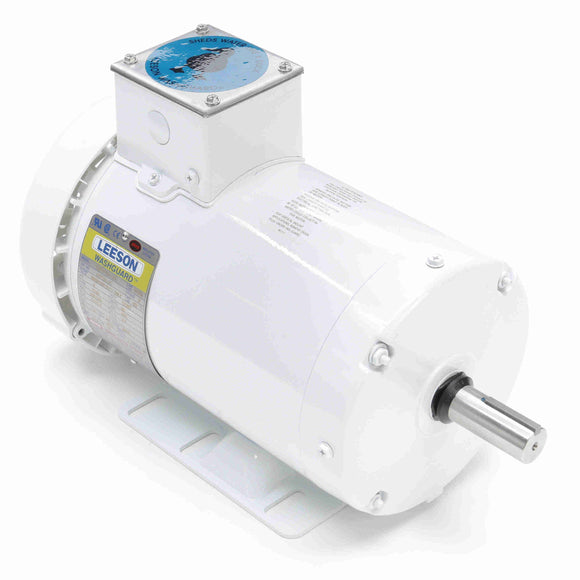

119783.00 Leeson 3HP Agriculture Duty Feather Picker Electric Motor, 1800RPM-4

119783.00 Leeson 3HP Agriculture Duty Feather Picker Electric Motor, 1800RPM

$868.00 USD $1,952.00 USD Save $1,084.00 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 119783.00 Barcode: 691720053829

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Phosphatized or stainless steel shafts
  • Metric motor has phosphatized shaft drilled and tapped
  • Epoxy painted for corrosion protection
  • Washdown duty features including shaft seals
  • USDA approved food-safe paint
  • Extra high breakdown torques

General Specifications

General Specifications
Model : C6T17WK48A Catalog No : 119783.00
Part Description : 3HP.2.24KW.1740RPM.56H.TEFC.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.0SF.RIGID.AG - FEATHER PICKER.C6T17FB113B Category : Feather Picker
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 3 HP Output KW : 2.2 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 8.9-8.6/4.3 A Speed : 1740 RPM
Service Factor : 1 Phase : 3
Efficiency : 82.5 % Duty : Continuous
Insulation Class : H Design Code : INV
KVA Code : J Frame : 56HZ
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : Y
IP Code : 55

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Inverter Duty Starting Method : Inverter Only
Poles : 4 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 13.93 in Frame Length : 8.00 in
Shaft Diameter : 0.875 in Shaft Extension : 2.38 in
Assembly/Box Mounting : F3 UPC : 691720053829
Weight : 48.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 0.0 35.70 397.0 0 0.00 0.0 3.00
Pull-Up 0.00 0.0 29.00 322.0 0 0.00 0.0 3.00
Full Load 4.30 100.0 9.00 100.0 0 0.00 0.0 3.00
Locked-Rotor 31.00 721.0 30.00 333.0 0 0.00 0.0 5.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.43
  • 0.193
  • 0.0
  • 10.0
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 2.68
  • 0.814
  • 71.7
  • 38.1
  • 1,786
  • 0.0
  • 2.30
  • 50 %
  • 3.06
  • 1.417
  • 79.9
  • 58.1
  • 1,772
  • 0.0
  • 4.50
  • 75 %
  • 3.71
  • 2.046
  • 83.0
  • 69.2
  • 1,758
  • 0.0
  • 6.80
  • 100 %
  • 4.29
  • 2.699
  • 82.5
  • 79.0
  • 1,742
  • 93.0
  • 9.00
  • 125 %
  • 5.08
  • 3.372
  • 82.2
  • 83.3
  • 1,726
  • 0.0
  • 11.30
  • 150 %
  • 5.92
  • 4.005
  • 81.7
  • 84.9
  • 1,707
  • 0.0
  • 13.50
