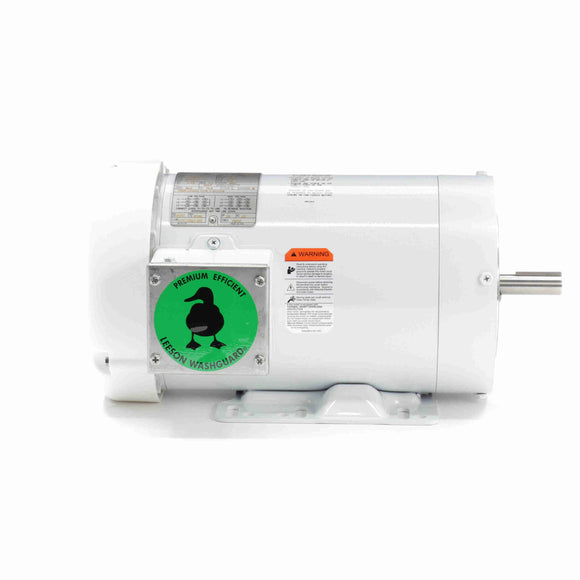

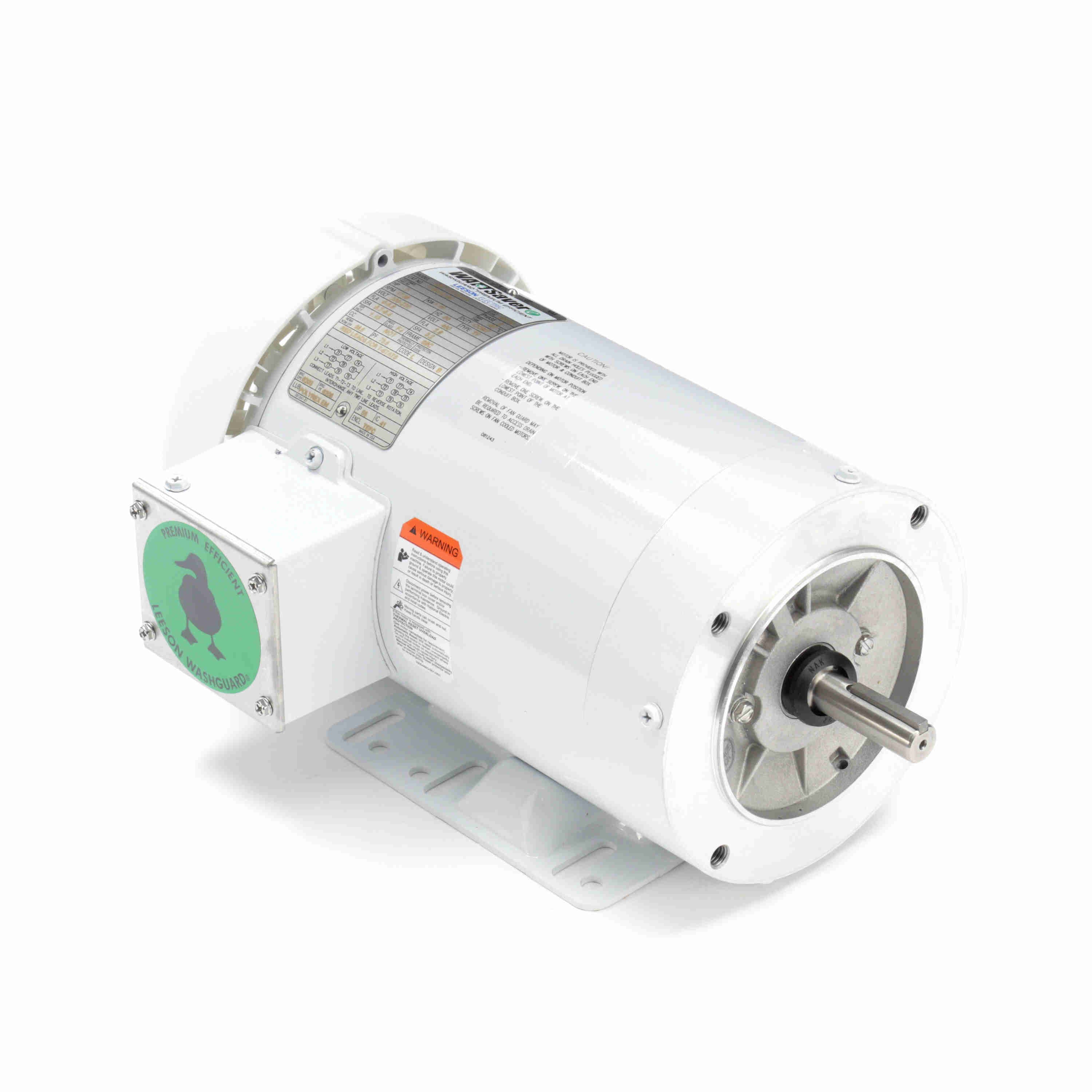

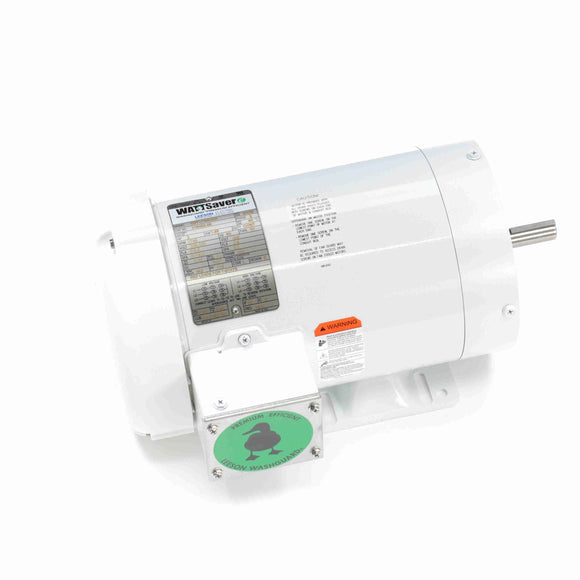

Features
- USDA-approved epoxy painted motors
- NEMA motors
- AC washdown
- Rigid base and C face mount types
- BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
- 3-year warranty on encapsulated and premium efficient models
- UL recognized and CSA certified
- Double lip contact seals and v-ring seals used for shaft seals
- Washdown brakemotors and pump motors available
General Specifications
| Model : | C6T17WK46A | Catalog No : | 119483.00 |
| Part Description : | 119483.00..2HP..1745RPM.56C.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C FACE.C6T17WK46.....WASHDOWN DUTY.NONE....... | Category : | General Purpose |
| Stock : | No |
Nameplate Specifications
| Output HP : | 2 Hp | Output KW : | 1.5 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/460 V |
| Current : | 6.0-5.8/2.9 A | Speed : | 1745 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 86.5 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | L | Frame : | 56C |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Rigid base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 13.87 in | Frame Length : | 8.00 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720051962 |
| Weight : | 38.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 26.58 | 1,329.0 | 24.60 | 410.0 | 0 | 14.36 | 0.0 | 2.00 |
| Full Load | 2.00 | 100.0 | 6.00 | 100.0 | 1,757 | 1.70 | 72.1 | 2.00 |
| Pull-Up | 25.37 | 1,268.0 | 24.60 | 410.0 | 120 | 14.10 | 0.0 | 2.00 |
| Break-Down | 19.17 | 958.0 | 28.80 | 480.0 | 1,100 | 12.00 | 0.0 | 2.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 1.70
- 0.100
- 0.0
- 7.0
- 1,800
- 0.0
- 0.00
- 25 %
- 1.90
- 0.500
- 74.5
- 33.5
- 1,785
- 0.0
- 1.50
- 50 %
- 2.20
- 0.950
- 83.5
- 52.0
- 1,775
- 0.0
- 3.00
- 75 %
- 2.60
- 1.350
- 85.5
- 64.0
- 1,762
- 0.0
- 4.50
- 100 %
- 2.90
- 1.750
- 86.5
- 75.6
- 1,745
- 55.0
- 6.00
- 115 %
- 3.20
- 2.000
- 86.0
- 76.5
- 1,740
- 75.0
- 6.90
- 125 %
- 3.50
- 2.150
- 85.5
- 77.5
- 1,730
- 85.0
- 7.50
- 150 %
- 4.10
- 2.600
- 84.0
- 80.5
- 1,718
- 0.0
- 9.00
