Features
- USDA-approved epoxy painted motors
- NEMA motors
- AC washdown
- Rigid base and C face mount types
- BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
- 3-year warranty on encapsulated and premium efficient models
- UL recognized and CSA certified
- Double lip contact seals and v-ring seals used for shaft seals
- Washdown brakemotors and pump motors available
General Specifications

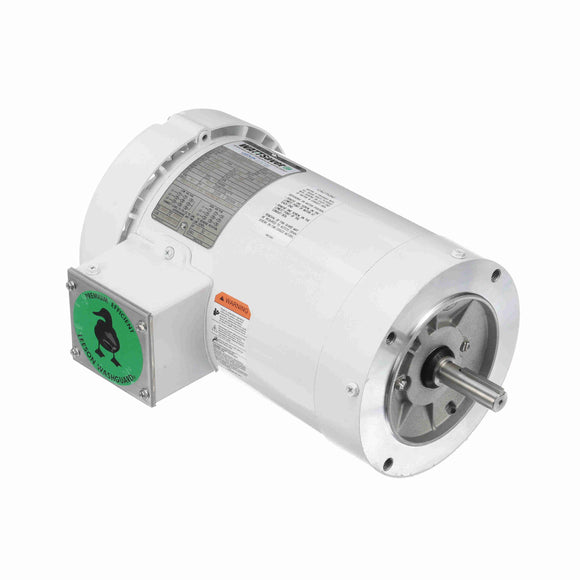

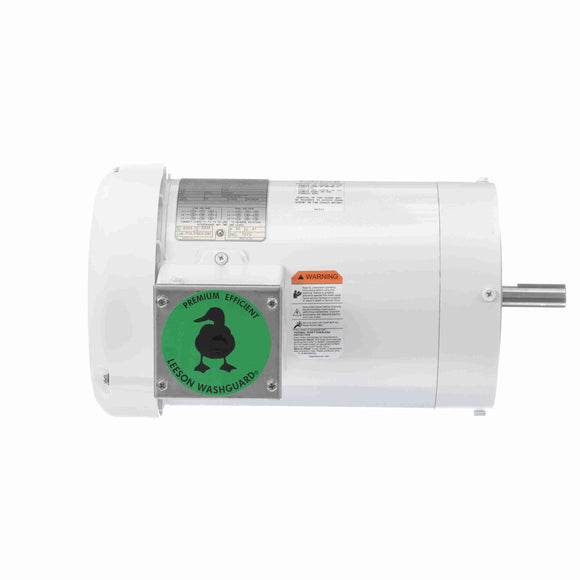

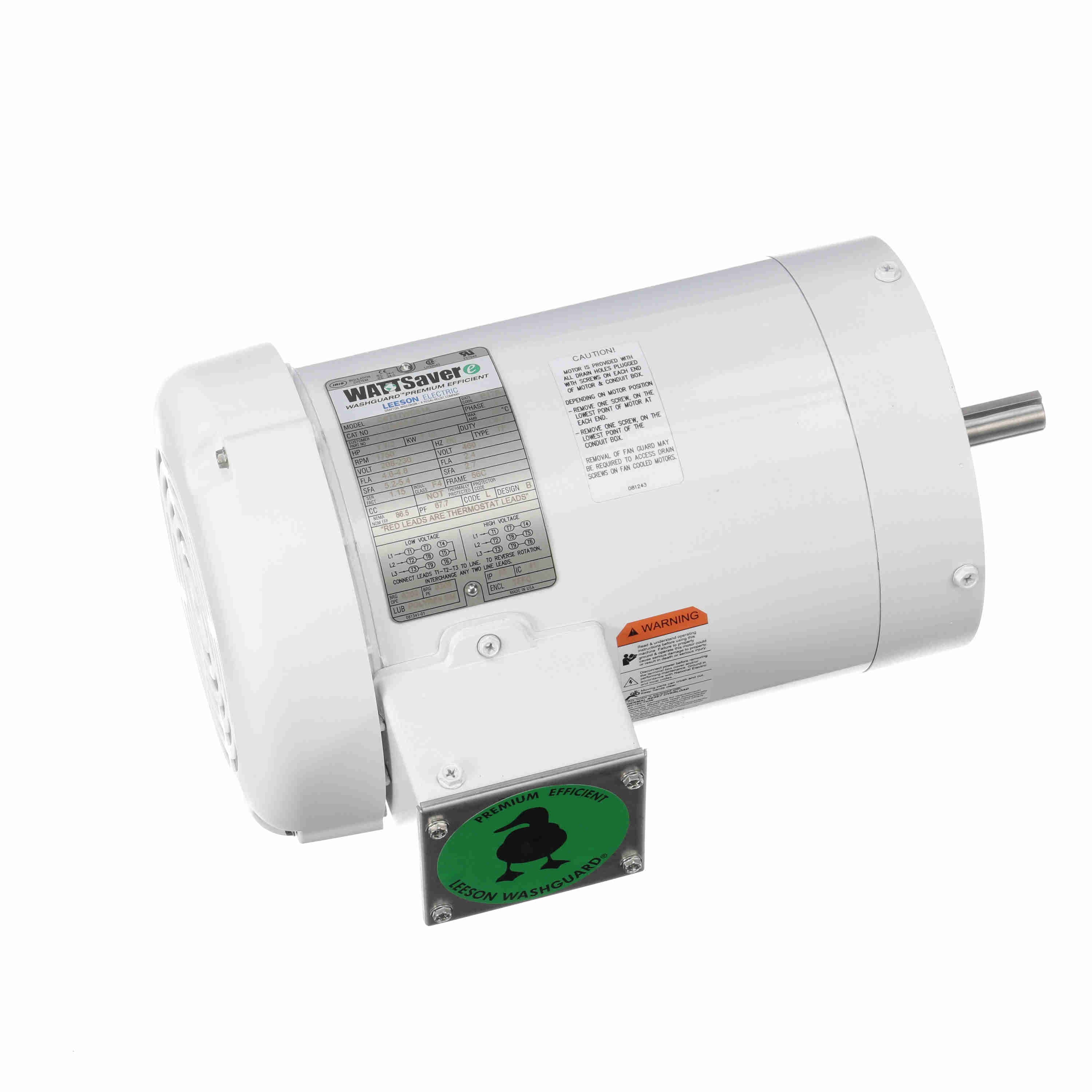

| Model : | C6T17WC51A | Catalog No : | 119469.00 |
| Part Description : | 119469.00..1.5HP..1750RPM.56C.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T17WC51.....WASHDOWN MOTORS.NONE....... | Category : | General Purpose |
| Stock : | No |
Nameplate Specifications
| Output HP : | 1.50 Hp | Output KW : | 1.1 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/460 V |
| Current : | 4.6-4.8/2.4 A | Speed : | 1750 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 86.5 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | L | Frame : | 56C |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Round | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 13.37 in | Frame Length : | 7.50 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720051740 |
| Weight : | 40.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 16.06 | 707.0 | 17.00 | 378.0 | 200 | 9.40 | 0.0 | 1.50 |
| Break-Down | 12.09 | 533.0 | 20.40 | 453.0 | 1,200 | 7.81 | 0.0 | 1.50 |
| Locked-Rotor | 18.50 | 815.0 | 17.20 | 382.0 | 0 | 9.91 | 0.0 | 1.50 |
| Full Load | 2.40 | 100.0 | 4.50 | 100.0 | 1,752 | 1.31 | 75.3 | 1.50 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 1.23
- 0.097
- 0.0
- 9.9
- 1,797
- 0.0
- 0.00
- 25 %
- 1.33
- 0.375
- 74.4
- 35.4
- 1,786
- 0.0
- 1.10
- 50 %
- 1.53
- 0.673
- 84.2
- 55.2
- 1,773
- 0.0
- 2.25
- 75 %
- 1.81
- 0.970
- 87.2
- 67.3
- 1,761
- 0.0
- 3.38
- 100 %
- 2.15
- 1.291
- 86.4
- 75.4
- 1,746
- 45.0
- 4.50
- 125 %
- 2.52
- 1.611
- 86.0
- 80.2
- 1,732
- 65.0
- 5.63
- 150 %
- 2.94
- 1.945
- 84.6
- 83.0
- 1,716
- 65.0
- 6.75
- 175 %
- 3.37
- 2.286
- 83.2
- 85.1
- 1,699
- 0.0
- 7.88
- 200 %
- 3.85
- 2.650
- 80.9
- 86.4
- 1,678
- 0.0
- 9.00
