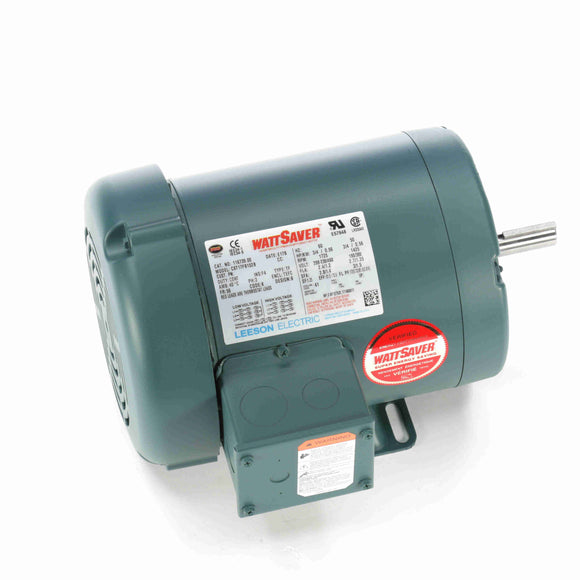

116739.00 Leeson 3/4HP Wattsaver General Purpose Electric Motor, 1725RPM-1

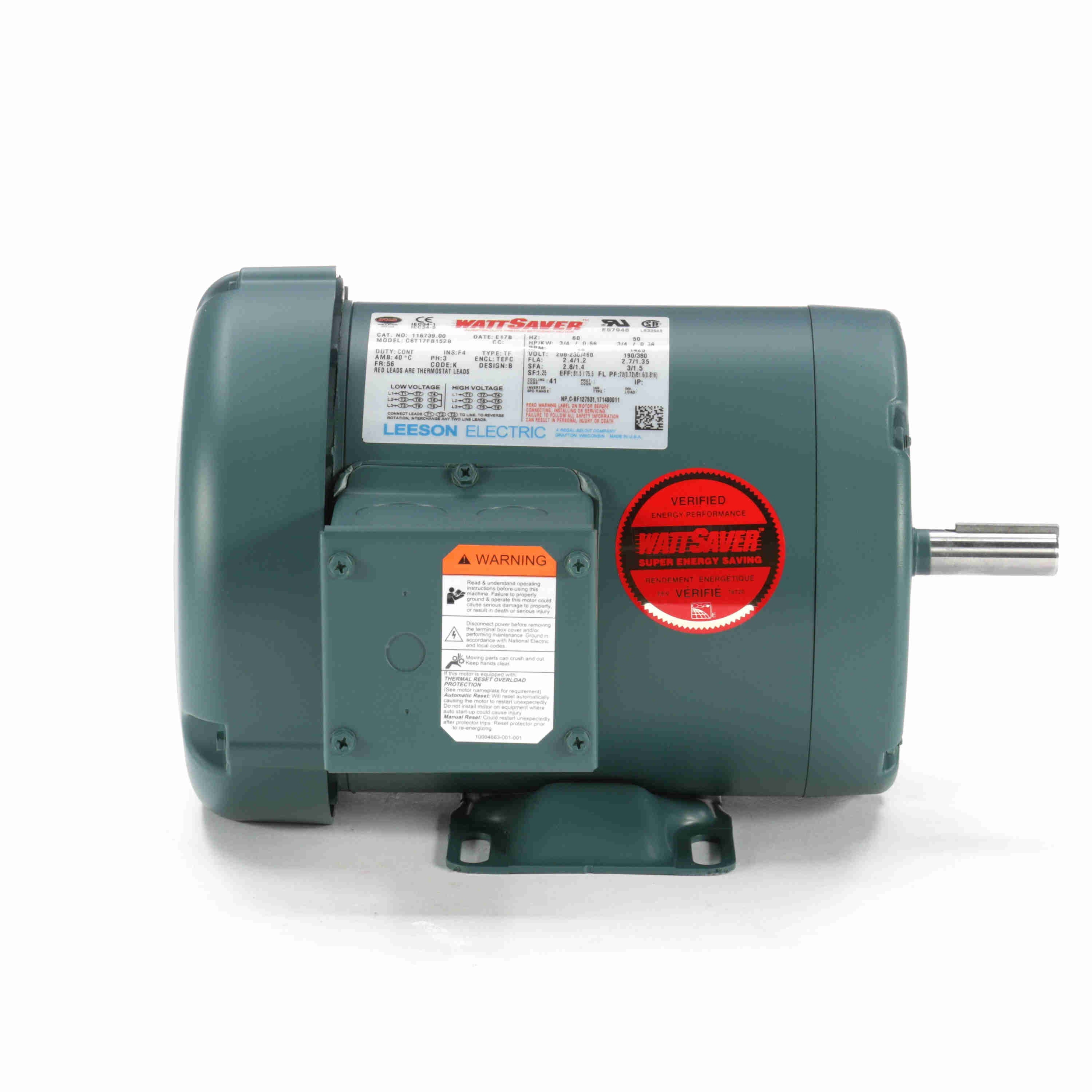

116739.00 Leeson 3/4HP Wattsaver General Purpose Electric Motor, 1725RPM-2

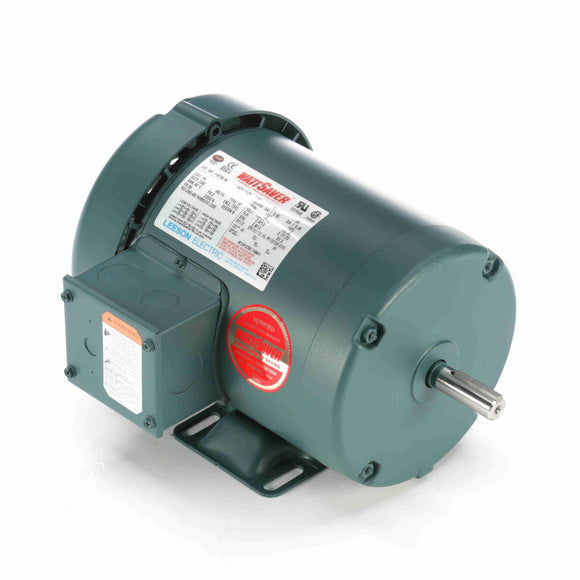

116739.00 Leeson 3/4HP Wattsaver General Purpose Electric Motor, 1725RPM-3

116739.00 Leeson 3/4HP Wattsaver General Purpose Electric Motor, 1725RPM

$565.97

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 116739.00 Barcode: 691720347997

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Standard, EPAct efficient ratings
  • Inverter-rated; Continuous duty
  • Class B insulation systems – 42, 48 and 56 frames
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Dynamically balanced rotors
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards; UL recognized and CSA certified

General Specifications

General Specifications
Model : C6T17FB152B Catalog No : 116739.00
Part Description : ..3/4HP..1725RPM.56.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.25SF.RIGID.C6T17FB152B.....WATTSAVER.AUTOMATIC....... Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.75 HP Output KW : 0.56 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 2.4/1.2 A Speed : 1725 RPM
Service Factor : 1.25 Phase : 3
Efficiency : 81.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : K Frame : 56
Enclosure : Totally Enclosed Fan Cooled Overload Protector : Automatic
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : Y
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 11.48 in Frame Length : 6.00 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720347997
Weight : 31.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 0.0 104.00 289.0 0 0.00 0.0 0.75
Break-Down 0.00 0.0 136.00 378.0 0 0.00 0.0 0.75
Full Load 2.40 0.0 36.00 100.0 0 0.00 0.0 0.75
Locked-Rotor 15.90 0.0 106.00 294.0 0 0.00 0.0 0.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.70
  • 0.065
  • 0.0
  • 11.7
  • 1,799
  • 0.0
  • 0.00
  • 25 %
  • 0.71
  • 0.199
  • 71.8
  • 35.2
  • 1,787
  • 0.0
  • 9.00
  • 50 %
  • 0.83
  • 0.357
  • 79.5
  • 54.3
  • 1,775
  • 0.0
  • 18.00
  • 75 %
  • 0.98
  • 0.520
  • 81.2
  • 66.6
  • 1,760
  • 0.0
  • 27.00
  • 100 %
  • 1.19
  • 0.683
  • 81.6
  • 72.3
  • 1,744
  • 32.0
  • 36.00
  • 125 %
  • 1.38
  • 0.859
  • 80.5
  • 78.4
  • 1,730
  • 0.0
  • 45.00
  • 150 %
  • 1.59
  • 1.036
  • 79.3
  • 82.0
  • 1,713
  • 0.0
  • 54.00
