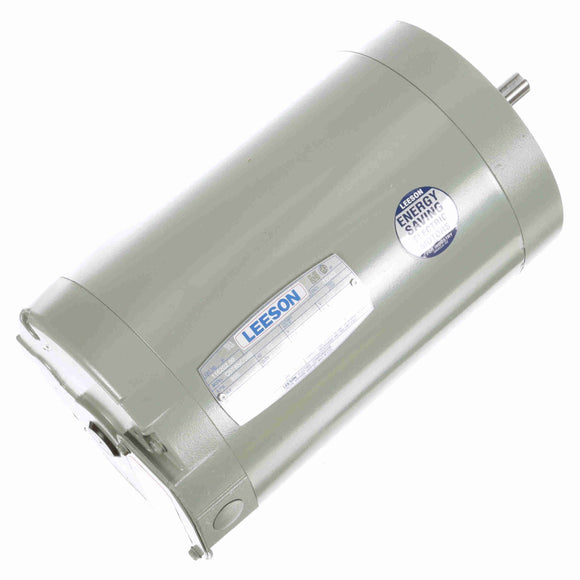

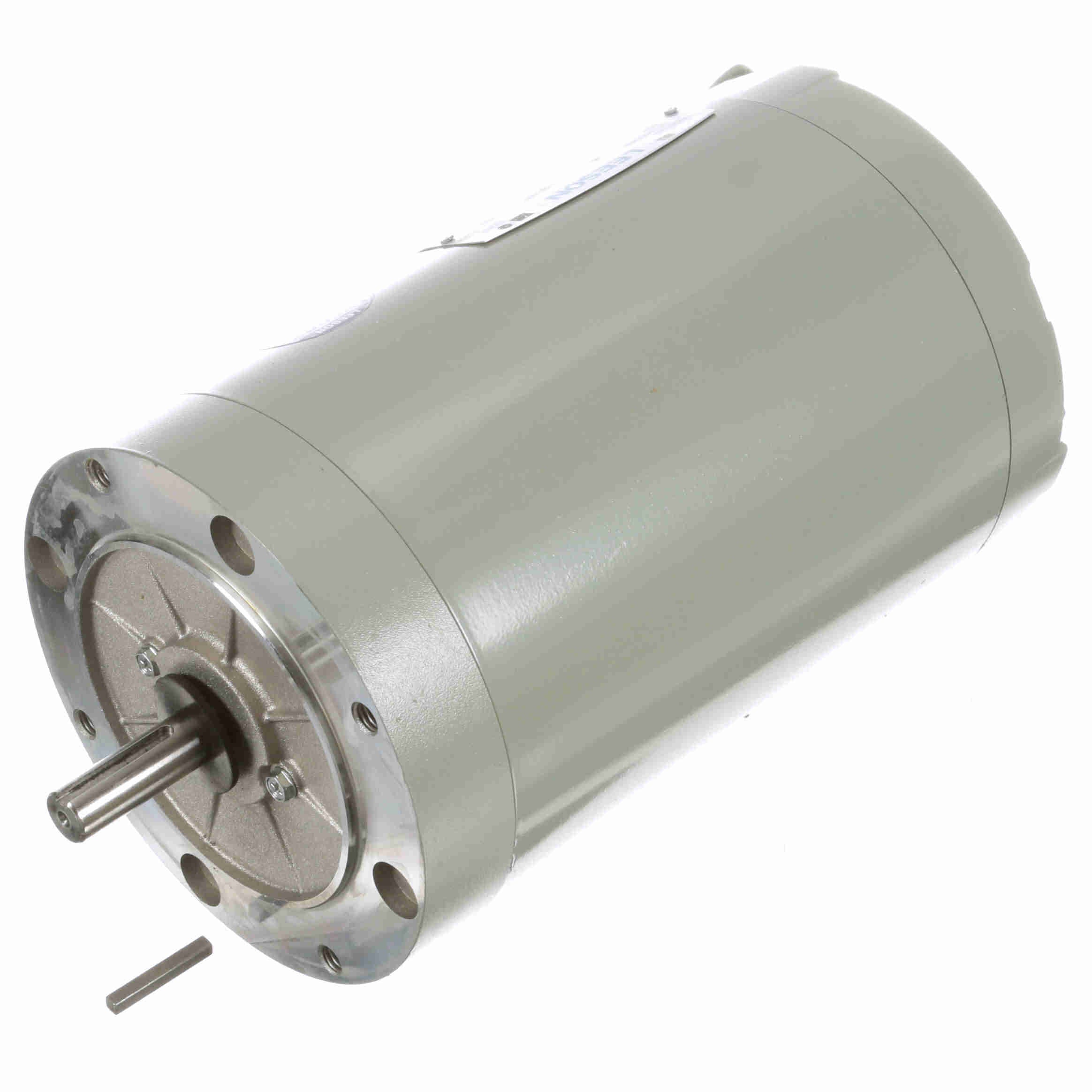

Features
- Rolled steel construction
- Permanent split capacitor start motors
- Direct drive exhaust ventilation fans
- Extended thru-bolt designs
- Built in terminal panel for quick connections
General Specifications
| UPC: | 691720292105 | Weight: | 44.00 LB |
| Packaged Length: | 19.5 IN | Packaged Width: | 10.44 IN |
| Packaged Height: | 10.88 IN |
Nameplate Specifications
| Output HP: | 1 Hp | Output KW: | 0.75 kW |
| Frequency: | 60 Hz | Voltage: | 208-230/460 V |
| Current: | 5.0/2.5 A | Speed: | 850 rpm |
| Service Factor: | 1 | Phase: | 3 |
| Efficiency: | 72 % | Power Factor: | 51 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | J |
| Frame: | 56C | Enclosure: | Totally Enclosed Air Over |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
Technical Specifications
| Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Across The Line |
| Poles: | 8 | Rotation: | Reversible |
| Resistance Main: | 17.2 Ohms | Mounting: | Round |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | NEMA 56 | Overall Length: | 12.90 in |
| Frame Length: | 8.00 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 1.88 in | Assembly/Box Mounting: | F1 ONLY |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 0.00 | 11.50 | 192.0 | 100 | 1.00 | |||
| Locked-Rotor | 8.50 | 12.00 | 200.0 | 0 | 1.00 | |||
| Break-Down | 0.00 | 15.00 | 250.0 | 600 | 1.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 150 % |
| Current (Amps) | 1.80 | 1.86 | 1.99 | 2.18 | 2.48 | 2.68 | 3.02 |
| Rated Output (KW) | 0.14 | 0.34 | 0.56 | 0.78 | 1.01 | 1.24 | 1.50 |
| Efficiency (%) | 0.0 | 55.2 | 67.3 | 71.1 | 72.0 | 71.7 | 69.9 |
| Power Factor (%) | 9.7 | 23.1 | 35.1 | 44.9 | 51.0 | 58.3 | 62.1 |
| Speed (RPM) | 899 | 889 | 878 | 866 | 850 | 837 | 817 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 1.50 | 3.00 | 4.50 | 6.00 | 7.50 | 9.00 |
