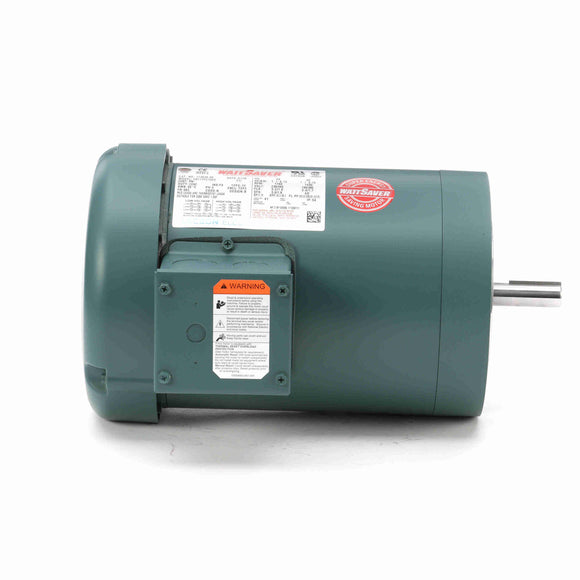

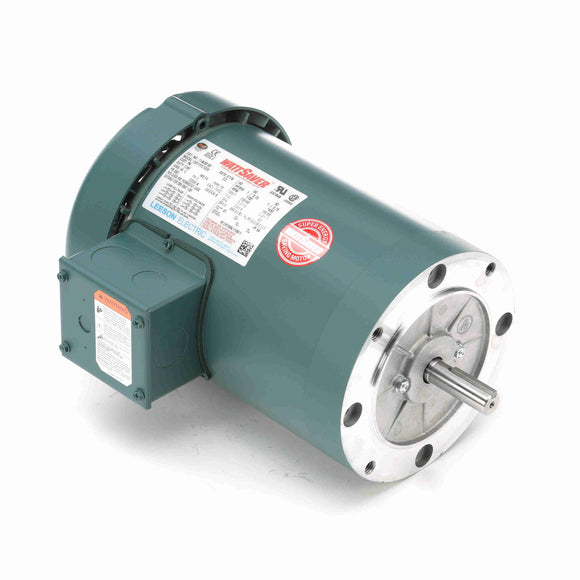

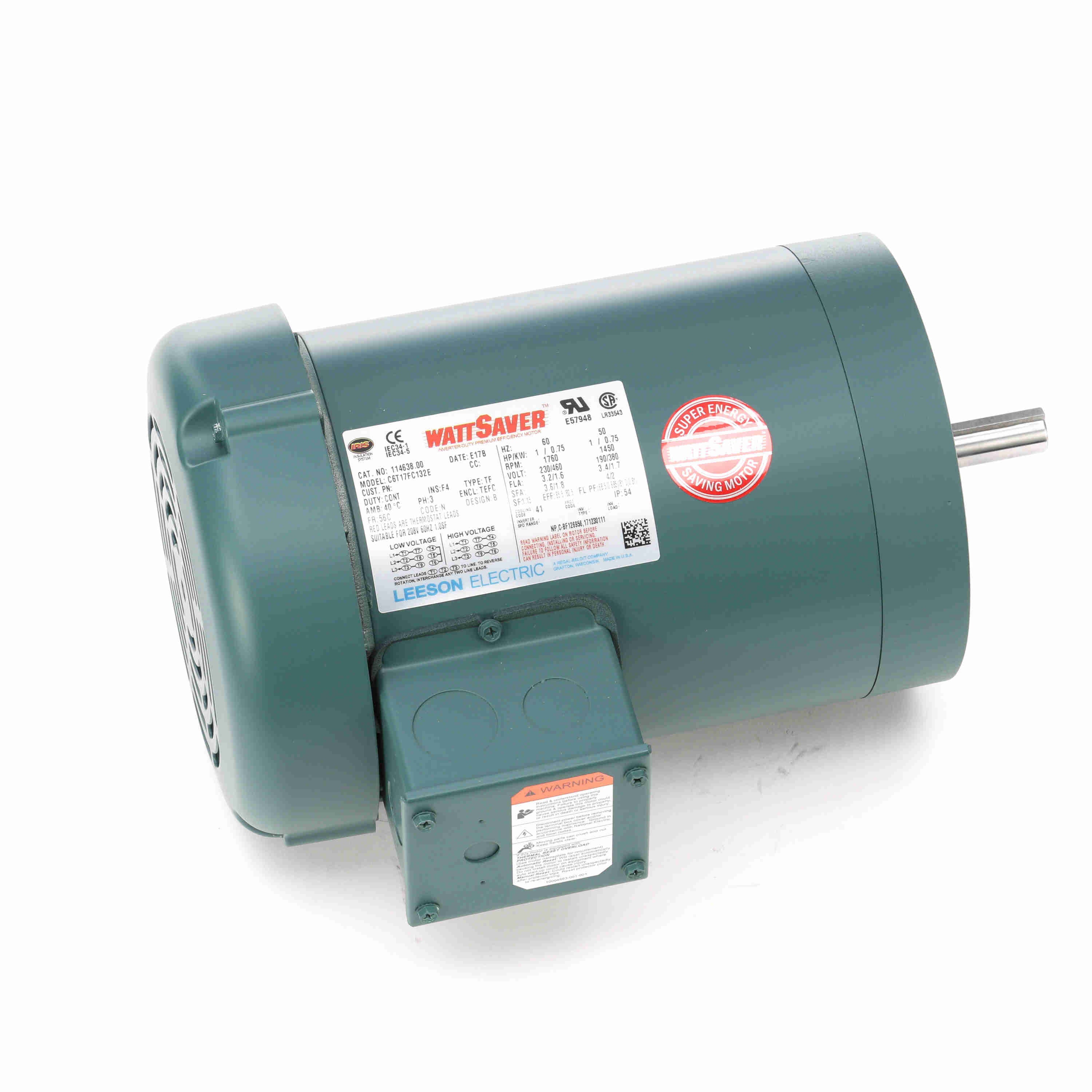

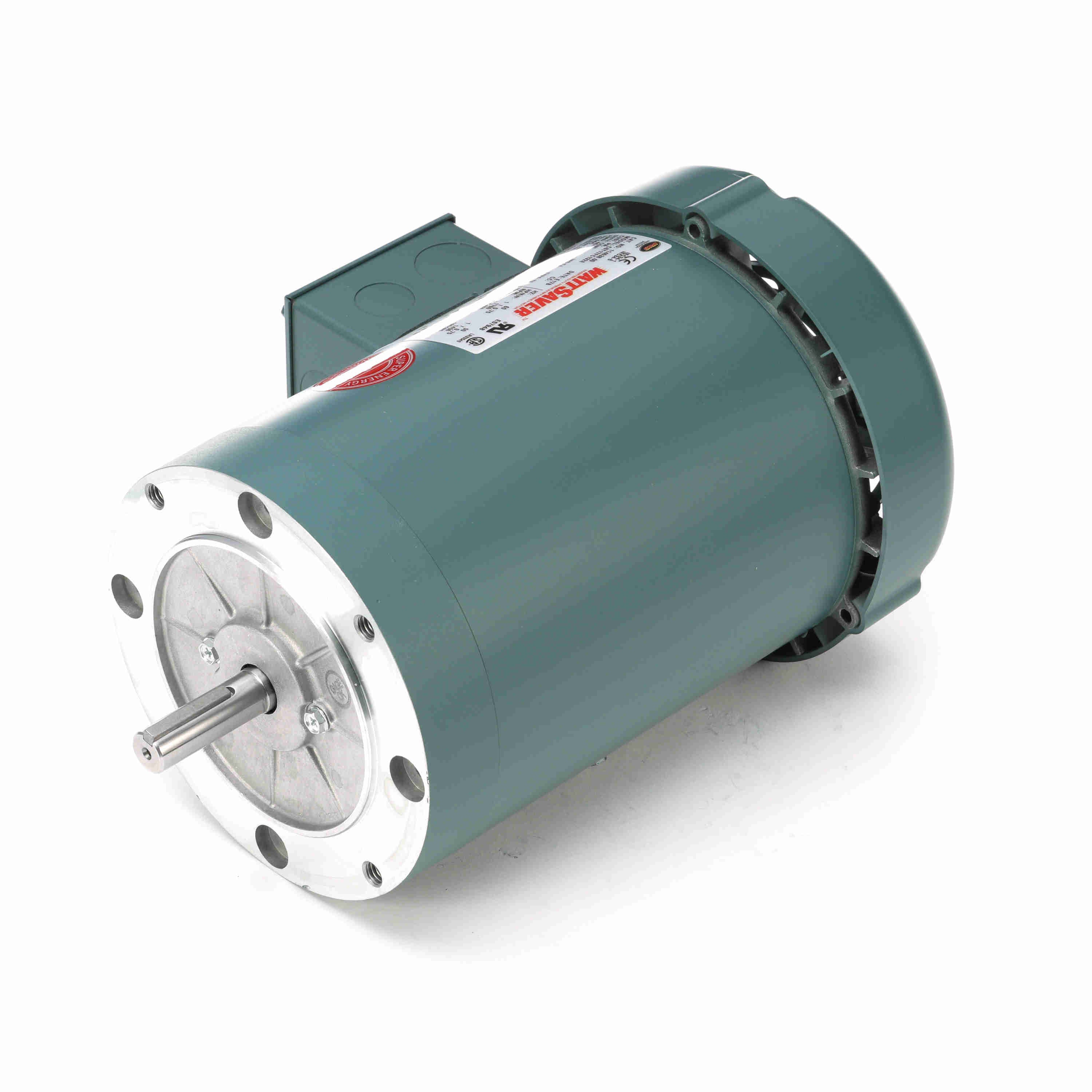

Features
- Premium efficient ratings
- Inverter-rated; Continuous duty
- Class B insulation systems – 42, 48 and 56 frames
- Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
- Dynamically balanced rotors
- Torques exceed NEMA performance standards; UL recognized and CSA certified
General Specifications
| Model : | C6T17FC132E | Catalog No : | 114638.00 |
| Part Description : | ..1HP..1760RPM.56.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T17FC132E.....WATTSAVER.T-STATS....... | Category : | Totally Enclosed Fan Cooled (TEFC) |
| Stock : | No |
Nameplate Specifications
| Output HP : | 1 Hp | Output KW : | 0.75 kW |
| Frequency : | 60 Hz | Voltage : | 230/460 V |
| Current : | 3.2/1.6 A | Speed : | 1760 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 85.5 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | N | Frame : | 56C |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | Automatic |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 54 |
Technical Specifications
| Electrical Type : | Squirrel Cage Inverter Rated | Starting Method : | Line Or Inverter |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Round | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 12.48 in | Frame Length : | 7.00 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720014257 |
| Weight : | 37.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 13.02 | 0.0 | 11.90 | 0.0 | 110 | 7.20 | 0.0 | 1.00 |
| Locked-Rotor | 14.00 | 0.0 | 12.00 | 0.0 | 0 | 7.30 | 0.0 | 1.00 |
| Full Load | 1.70 | 0.0 | 3.00 | 0.0 | 1,761 | 0.91 | 69.9 | 1.00 |
| Break-Down | 9.86 | 0.0 | 15.80 | 0.0 | 1,170 | 6.16 | 0.0 | 1.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 1.00
- 0.064
- 0.0
- 8.0
- 1,798
- 0.0
- 0.00
- 25 %
- 1.02
- 0.263
- 72.5
- 32.4
- 1,789
- 0.0
- 0.75
- 50 %
- 1.16
- 0.476
- 79.6
- 51.5
- 1,779
- 0.0
- 1.50
- 75 %
- 1.35
- 0.662
- 85.4
- 61.5
- 1,769
- 0.0
- 2.25
- 100 %
- 1.55
- 0.876
- 85.5
- 70.9
- 1,757
- 38.0
- 3.00
- 115 %
- 1.70
- 1.000
- 85.0
- 75.0
- 1,750
- 0.0
- 3.45
- 125 %
- 1.77
- 1.098
- 84.7
- 77.9
- 1,745
- 60.0
- 3.75
- 150 %
- 2.03
- 1.316
- 84.2
- 81.4
- 1,733
- 0.0
- 4.50
