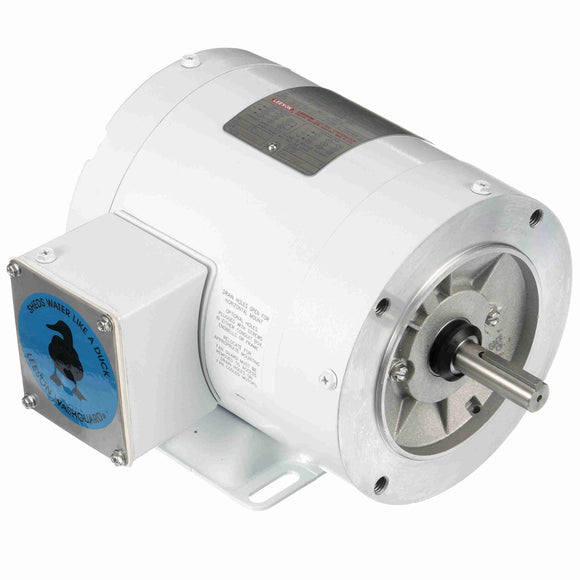

Leeson Washguard Electric Motor, 1/2 HP, 1800 RPM

$534.97

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 113586.00 Barcode: 691720012116

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
General Specifications
Model : C6T17VK2G Catalog No : 113586.00
Part Description : 1/2HP..1725RPM.56.TENV.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C6T17VK2G Category : General Purpose
Stock : No
Nameplate Specifications
Output HP : 0.50 Hp Output KW : 0.37 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 2.0-1.8/0.90 A Speed : 1725 rpm
Service Factor : 1.15 Phase : 3
Efficiency : 78.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : L Frame : 56C
Enclosure : Totally Enclosed Non Ventilated Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : Y
IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 10.08 in Frame Length : 5.00 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720012116
Weight : 25.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 0.0 71.40 298.0 0 0.00 0.0 0.50
Break-Down 0.00 0.0 97.80 408.0 0 0.00 0.0 0.50
Locked-Rotor 12.20 678.0 72.10 300.0 0 0.00 0.0 0.50
Full Load 1.80 100.0 24.00 100.0 0 0.00 0.0 0.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.65
  • 0.068
  • 0.0
  • 13.1
  • 1,791
  • 0.0
  • 0.00
  • 25 %
  • 0.71
  • 0.165
  • 57.7
  • 29.2
  • 1,788
  • 0.0
  • 6.00
  • 50 %
  • 0.76
  • 0.267
  • 70.9
  • 44.1
  • 1,776
  • 0.0
  • 12.00
  • 75 %
  • 0.84
  • 0.372
  • 75.8
  • 55.9
  • 1,764
  • 0.0
  • 18.00
  • 100 %
  • 0.90
  • 0.475
  • 78.6
  • 66.2
  • 1,752
  • 70.0
  • 24.00
  • 125 %
  • 1.05
  • 0.593
  • 78.0
  • 71.2
  • 1,737
  • 0.0
  • 30.00
  • 150 %
  • 1.16
  • 0.701
  • 78.7
  • 75.8
  • 1,726
  • 0.0
  • 36.00
