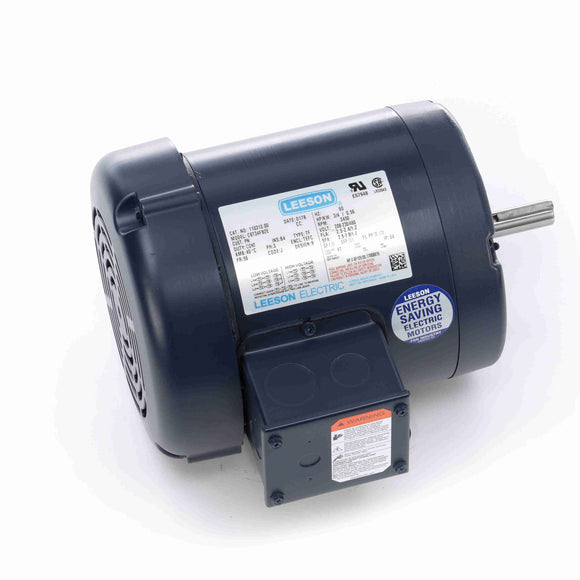

110313.00 Leeson 3/4HP General Purpose Electric Motor, 3600RPM-1

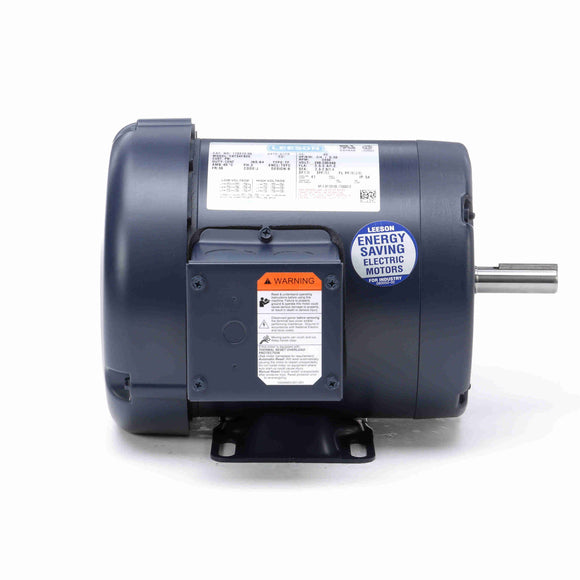

110313.00 Leeson 3/4HP General Purpose Electric Motor, 3600RPM-2

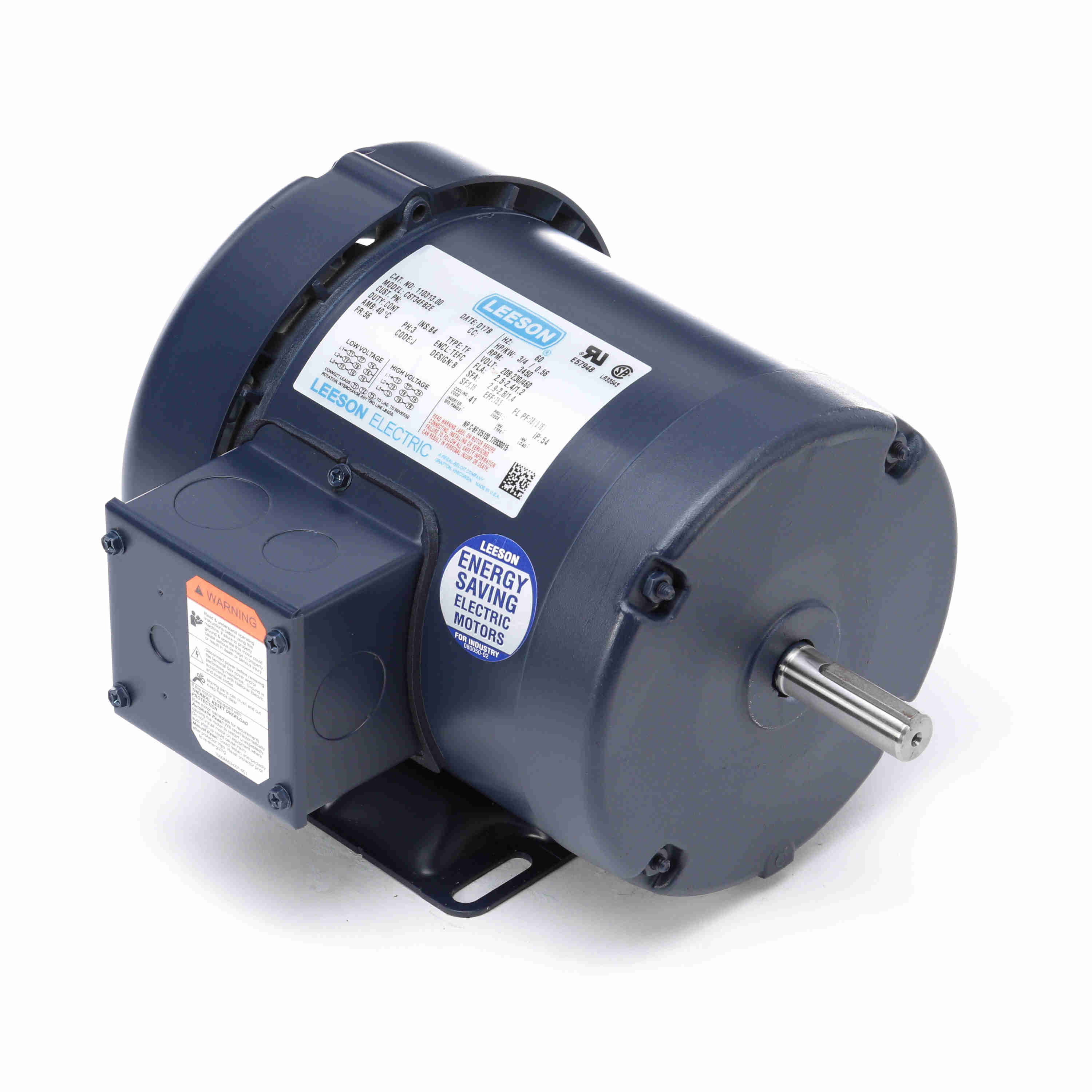

110313.00 Leeson 3/4HP General Purpose Electric Motor, 3600RPM-3

110313.00 Leeson 3/4HP General Purpose Electric Motor, 3600RPM

$438.97

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 110313.00 Barcode: 691720008430

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Standard, EPAct efficient ratings
  • Inverter-rated; Continuous duty
  • Class F insulation system – 140 frame and higher
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Dynamically balanced rotors
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards; UL recognized and CSA certified

General Specifications

General Specifications
Model : C6T34FB2E Catalog No : 110313.00
Part Description : 3/4HP..3450RPM.56.TEFC.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.GENERAL PURPOSE.C6T34FB2E Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.75 Hp Output KW : 0.56 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 2.5-2.4/1.2 A Speed : 3450 rpm
Service Factor : 1.15 Phase : 3
Efficiency : 75.5 % Duty : Continuous
Insulation Class : B Design Code : B
KVA Code : J Frame : 56
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 54

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 2 Rotation : Reversible
Mounting : Rigid Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 10.48 in Frame Length : 5.00 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720008430
Weight : 25.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 1.20 18.00 100.0 3,454 0.75
Locked-Rotor 7.30 46.00 256.0 0 0.75
Break-Down 0.00 65.00 361.0 2,600 0.75
Pull-Up 0.00 44.00 244.0 400 0.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.75
  • 0.105
  • 0.0
  • 17.6
  • 3,599
  • 0.0
  • 0.00
  • 25 %
  • 0.78
  • 0.264
  • 53.9
  • 42.5
  • 3,559
  • 0.0
  • 4.50
  • 50 %
  • 0.88
  • 0.413
  • 68.3
  • 58.9
  • 3,528
  • 0.0
  • 9.00
  • 75 %
  • 1.02
  • 0.574
  • 73.5
  • 70.6
  • 3,492
  • 0.0
  • 13.60
  • 100 %
  • 1.19
  • 0.743
  • 75.6
  • 78.4
  • 3,454
  • 57.0
  • 18.30
  • 125 %
  • 1.40
  • 0.926
  • 75.9
  • 83.0
  • 3,410
  • 0.0
  • 23.20
  • 150 %
  • 1.64
  • 1.123
  • 74.7
  • 85.9
  • 3,363
  • 0.0
  • 28.10
