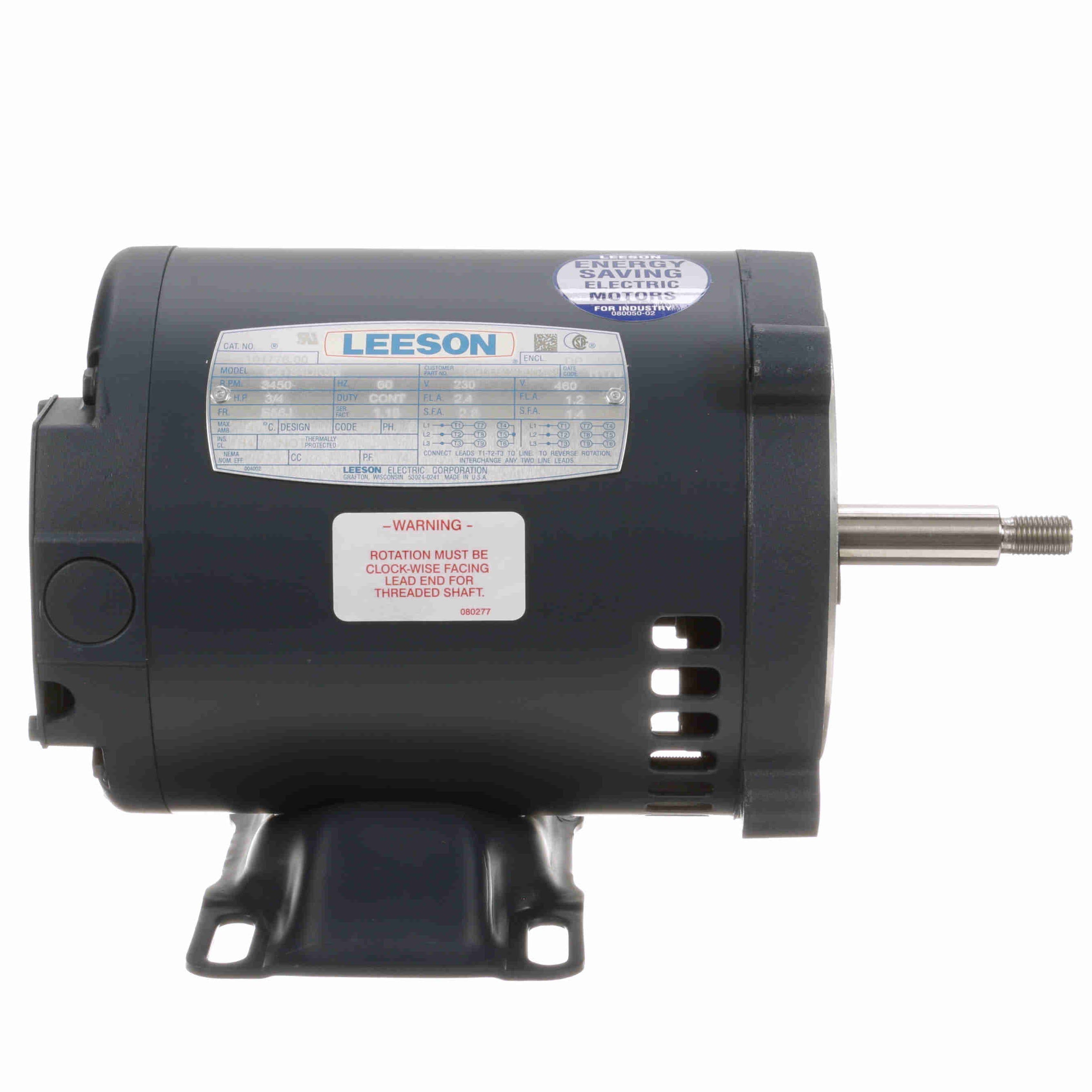

101776.00 Leeson 3/4HP Jet Pump Electric Motor, 3600RPM-1

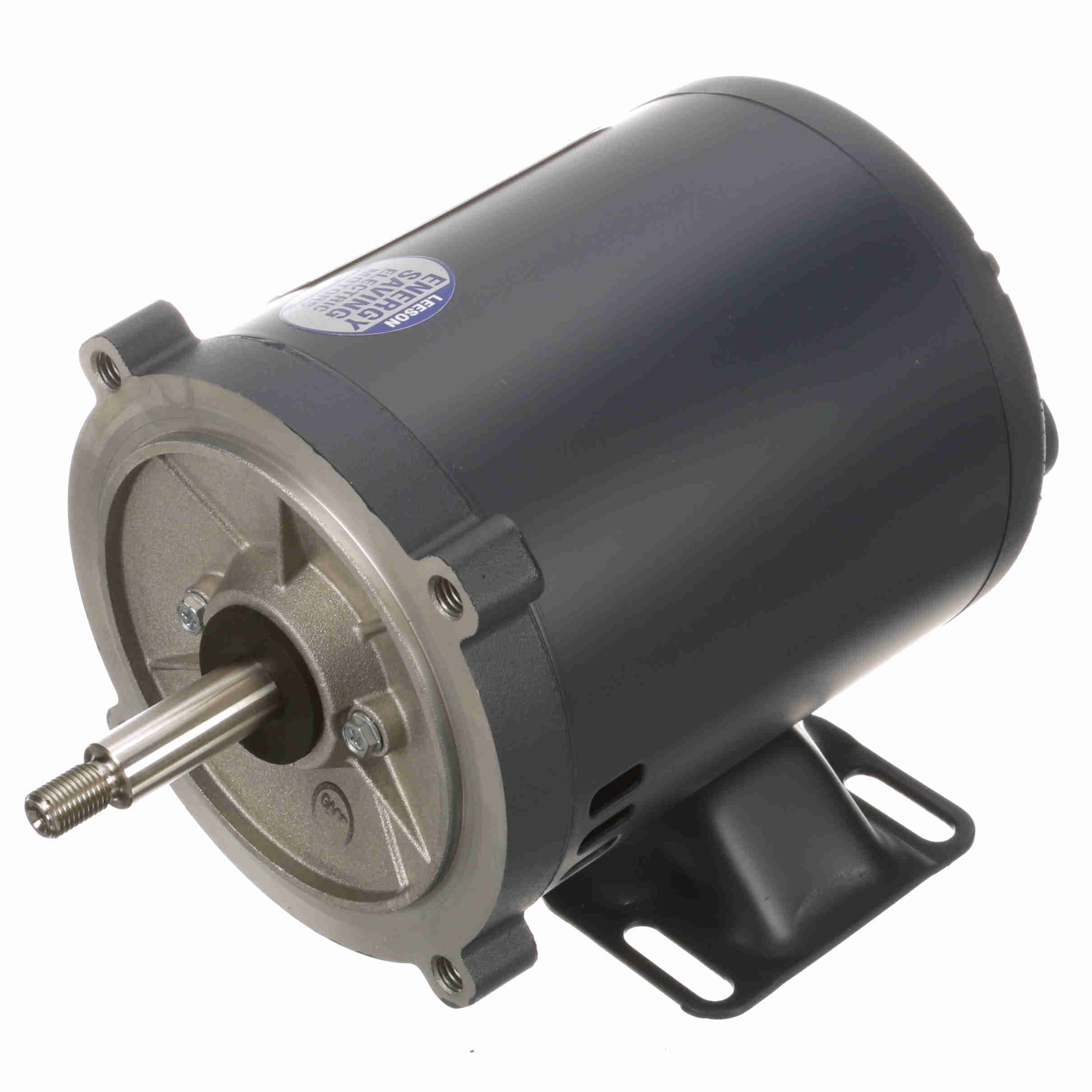

101776.00 Leeson 3/4HP Jet Pump Electric Motor, 3600RPM-2

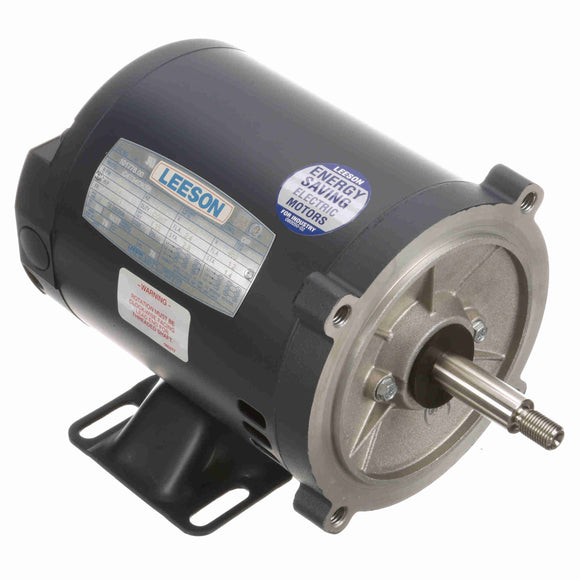

101776.00 Leeson 3/4HP Jet Pump Electric Motor, 3600RPM-3
101776.00 Leeson 3/4HP Jet Pump Electric Motor, 3600RPM-4

101776.00 Leeson 3/4HP Jet Pump Electric Motor, 3600RPM

$386.97 USD $755.00 USD Save $368.03 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 101776.00 Barcode: 691720006016

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • NEMA 56 C face mounting flange
  • Threaded shafts made of 303 grade stainless steel
  • CCW rotation facing lead end
  • Double sealed bearings on shaft end
  • Terminal board with quick connects
  • Locked shaft end bearings
  • UL recognized and CSA certified

General Specifications

UPC: 691720006016 Weight: 23.00 LB
Packaged Length: 14.44 IN Packaged Width: 7.94 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.75 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 2.4/1.2 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 79 % Power Factor: 74
Duty: Continuous Insulation Class: B
Design Code: NO DESIGN CODE KVA Code: K
Frame: S56J Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Resistance Main: 6.85 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: J Overall Length: 10.00 in
Frame Length: 5.50 in Shaft Diameter: 0.625 in
Shaft Extension: 2.44 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 1.21 0.0 18.00 0.0 3,511 0.73 0.0 0.75
Locked-Rotor 8.54 0.0 53.60 0.0 0 5.76 0.0 0.75
Break-Down 4.97 0.0 73.30 0.0 2,600 3.64 0.0 0.75
Pull-Up 8.06 0.0 48.00 0.0 0 5.49 0.0 0.75

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.68 0.73 0.83 0.97 1.13 1.31 1.48
Rated Output (KW) 0.12 0.26 0.41 0.56 0.72 0.89 1.06
Efficiency (%) 0.0 55.8 69.8 74.7 78.0 78.4 78.6
Power Factor (%) 22.4 44.2 61.9 72.0 79.7 85.0 89.1
Speed (RPM) 3,585 3,573 3,550 3,528 3,505 3,478 3,450
Temp. Rise @ FL 0.0 0.0 0.0 0.0 109.0 0.0 0.0
Torque (ft-lbs) 0.00 4.50 9.10 13.50 18.00 22.50 27.10
