Features
- Standard, EPAct efficient ratings
- Inverter-rated; Continuous duty
- Class B insulation systems – 42, 48 and 56 frames
- Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
- Dynamically balanced rotors
- Dynamically balanced rotors
- Torques exceed NEMA performance standards; UL recognized and CSA certified
General Specifications
| Model : | C4T34FB2D | Catalog No : | 100905.00 |
| Part Description : | 1/2HP..3450RPM.48.TEFC.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.0SF.RIGID.GENERAL PURPOSE.C4T34FB2D | Category : | Totally Enclosed Fan Cooled (TEFC) |
| Stock : | No |

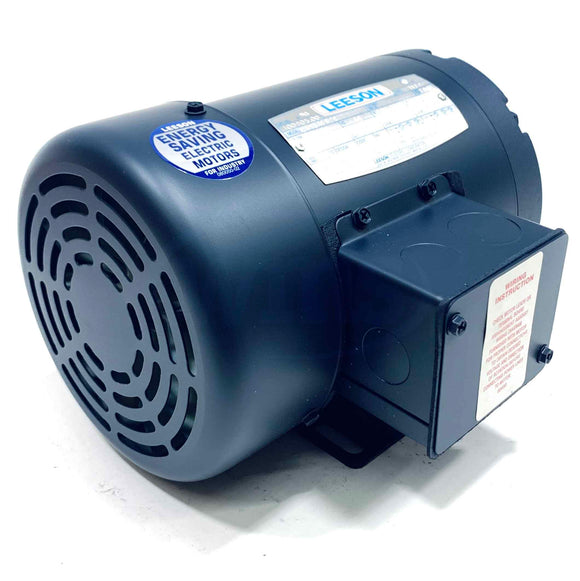

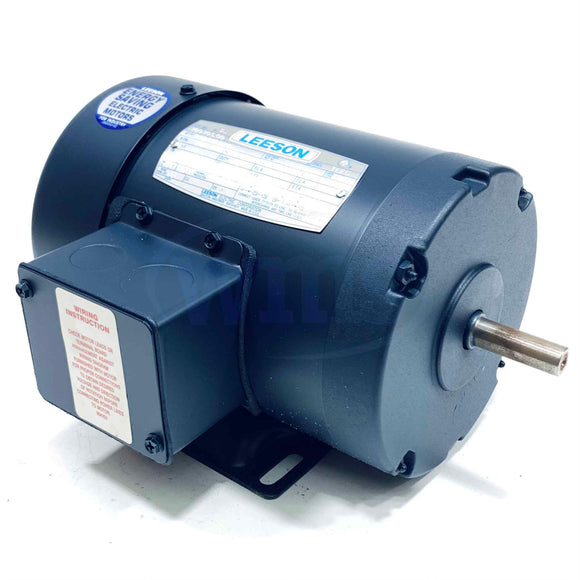

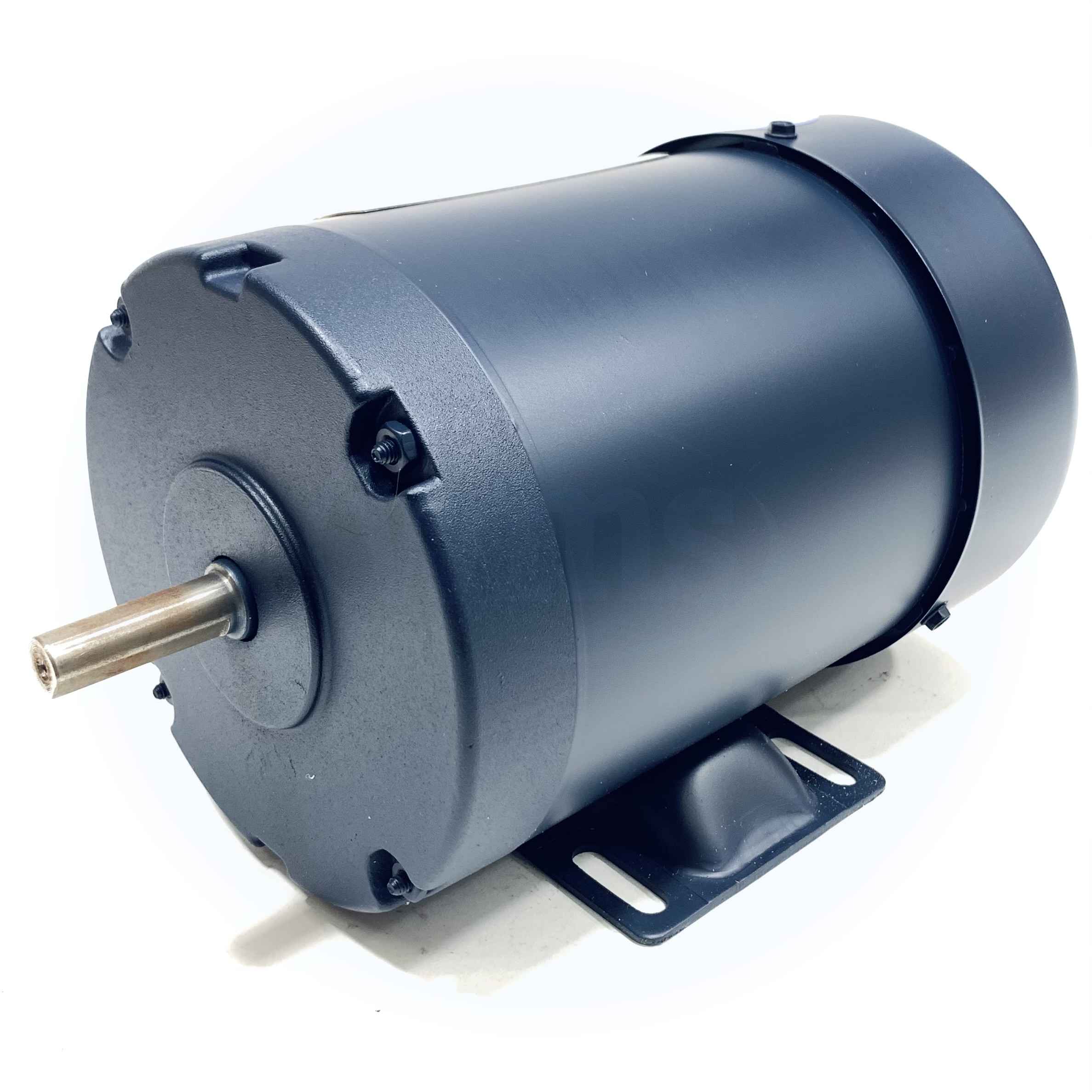

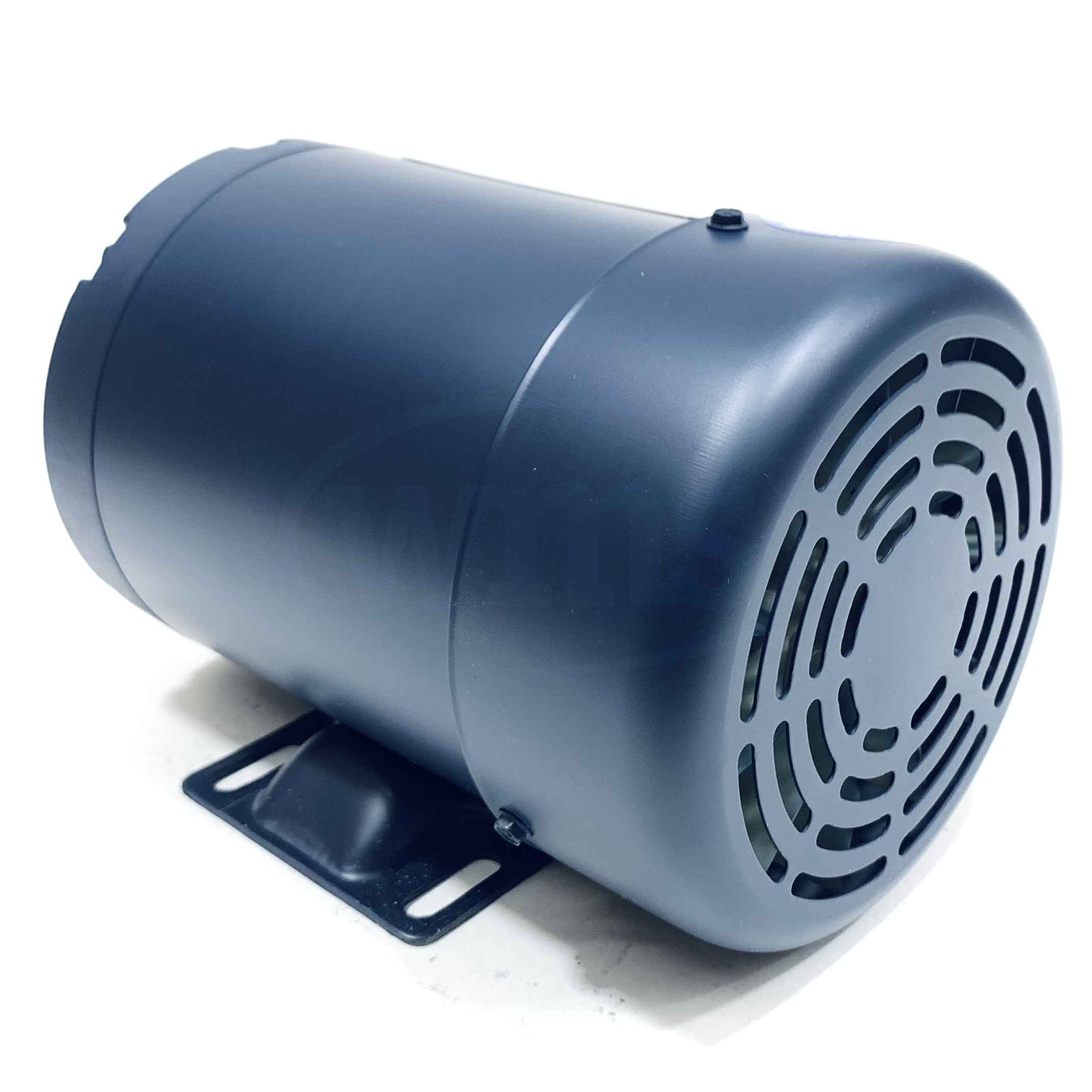

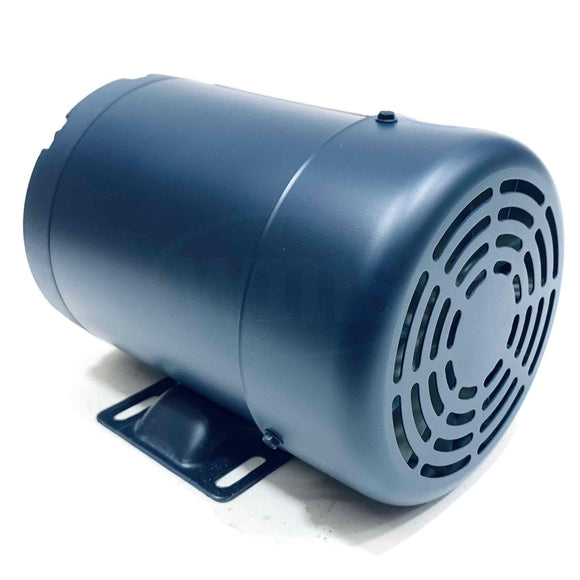

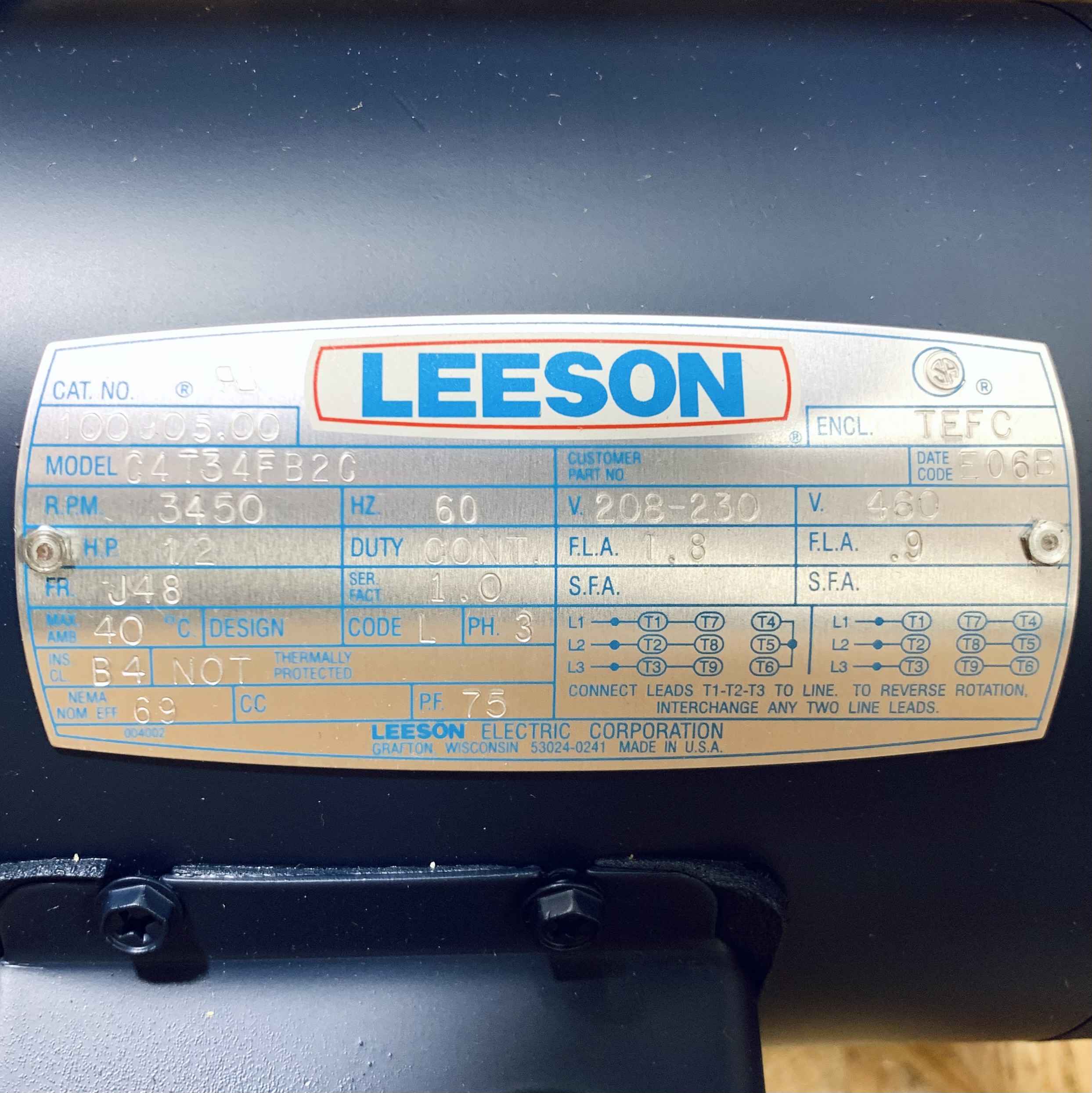

Nameplate Specifications
| Output HP : | 0.50 Hp | Output KW : | 0.37 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/460 V |
| Current : | 1.8/0.90 A | Speed : | 3450 rpm |
| Service Factor : | 1 | Phase : | 3 |
| Efficiency : | 75 % | Duty : | Continuous |
| Insulation Class : | B | Design Code : | NO DESIGN CODE |
| KVA Code : | L | Frame : | 48 |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 43 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Reversible |
| Mounting : | Rigid Base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 48 |
| Overall Length : | 9.56 in | Frame Length : | 5.25 in |
| Shaft Diameter : | 0.500 in | Shaft Extension : | 1.5 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720005170 |
| Weight : | 21.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 1.80 | 12.00 | 100.0 | 0 | 0.50 | |||
| Break-Down | 0.00 | 49.00 | 408.0 | 0 | 0.50 | |||
| Locked-Rotor | 12.00 | 34.50 | 288.0 | 0 | 0.50 | |||
| Pull-Up | 0.00 | 32.00 | 267.0 | 0 | 0.50 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 0.60
- 0.130
- 0.0
- 27.3
- 3,580
- 0.0
- 0.00
- 25 %
- 0.65
- 0.210
- 45.7
- 40.2
- 3,565
- 0.0
- 3.00
- 50 %
- 0.70
- 0.300
- 62.1
- 54.0
- 3,545
- 0.0
- 6.00
- 75 %
- 0.79
- 0.400
- 68.7
- 65.3
- 3,525
- 0.0
- 9.00
- 100 %
- 0.90
- 0.500
- 72.8
- 72.8
- 3,500
- 0.0
- 12.00
- 125 %
- 1.00
- 0.620
- 74.1
- 78.5
- 3,475
- 0.0
- 15.00
