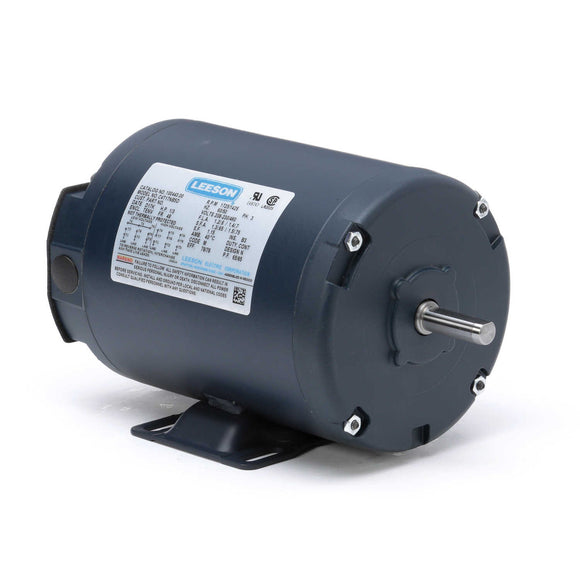

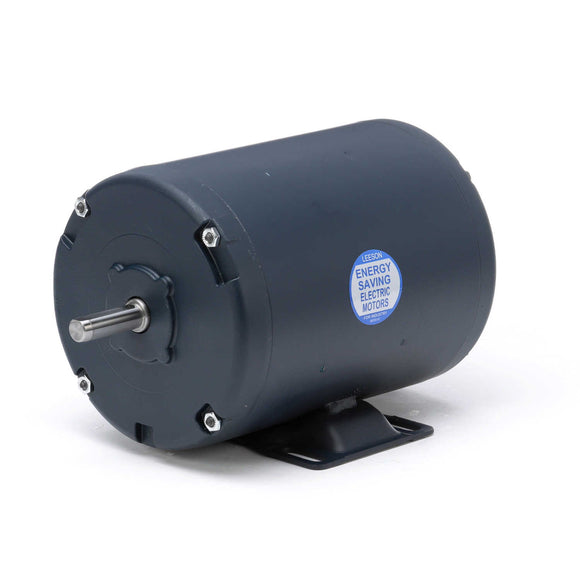

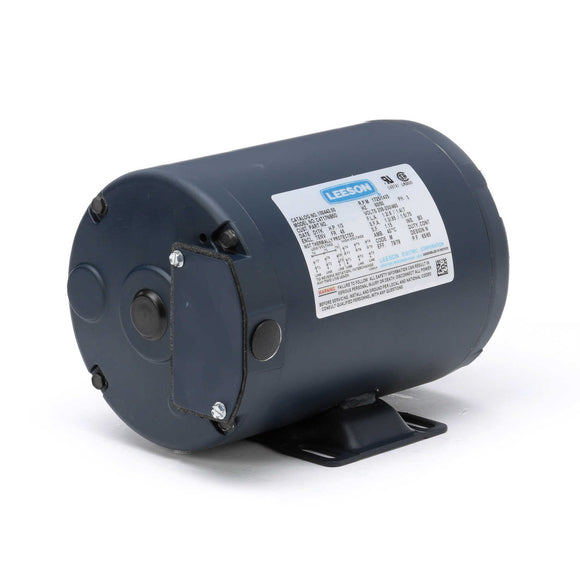

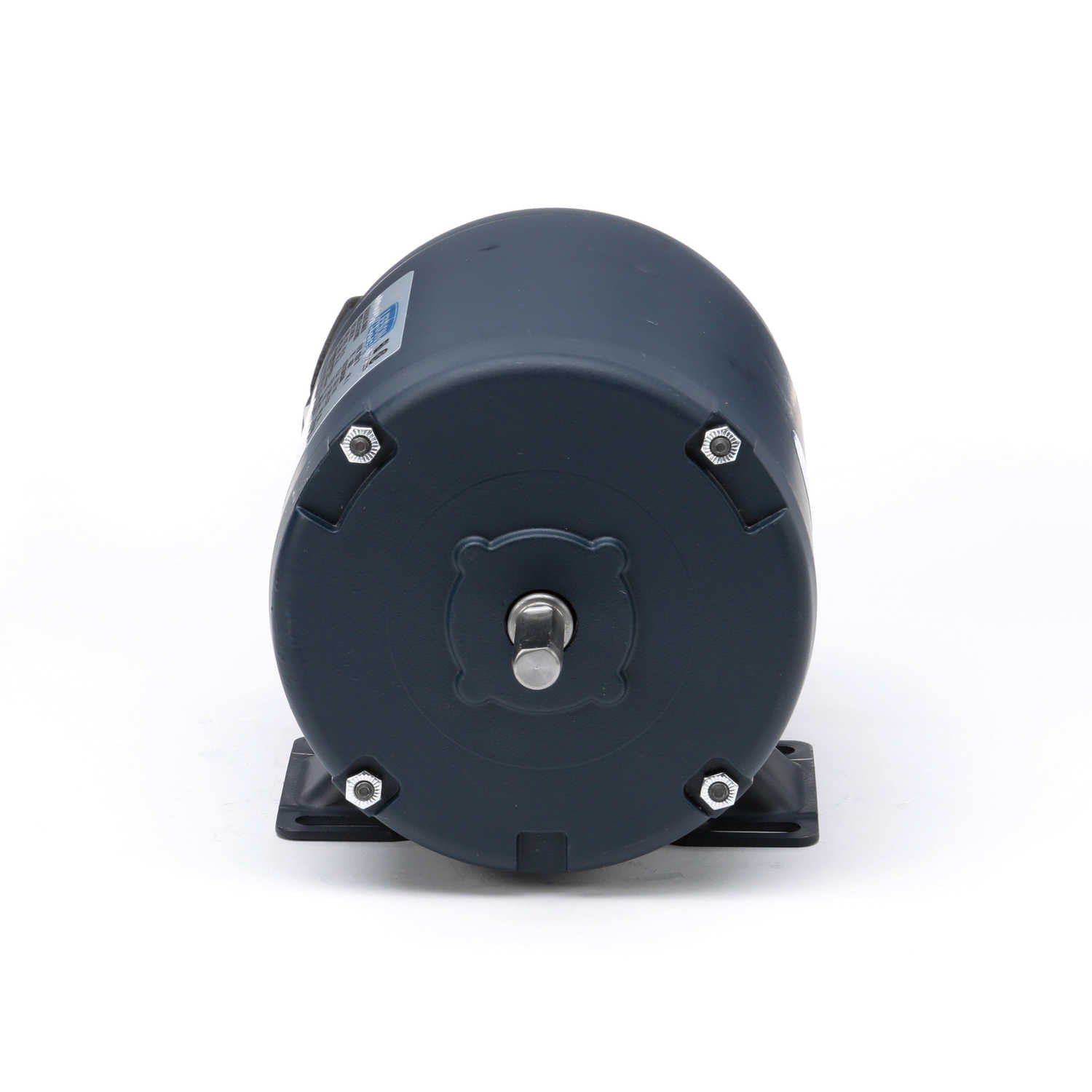

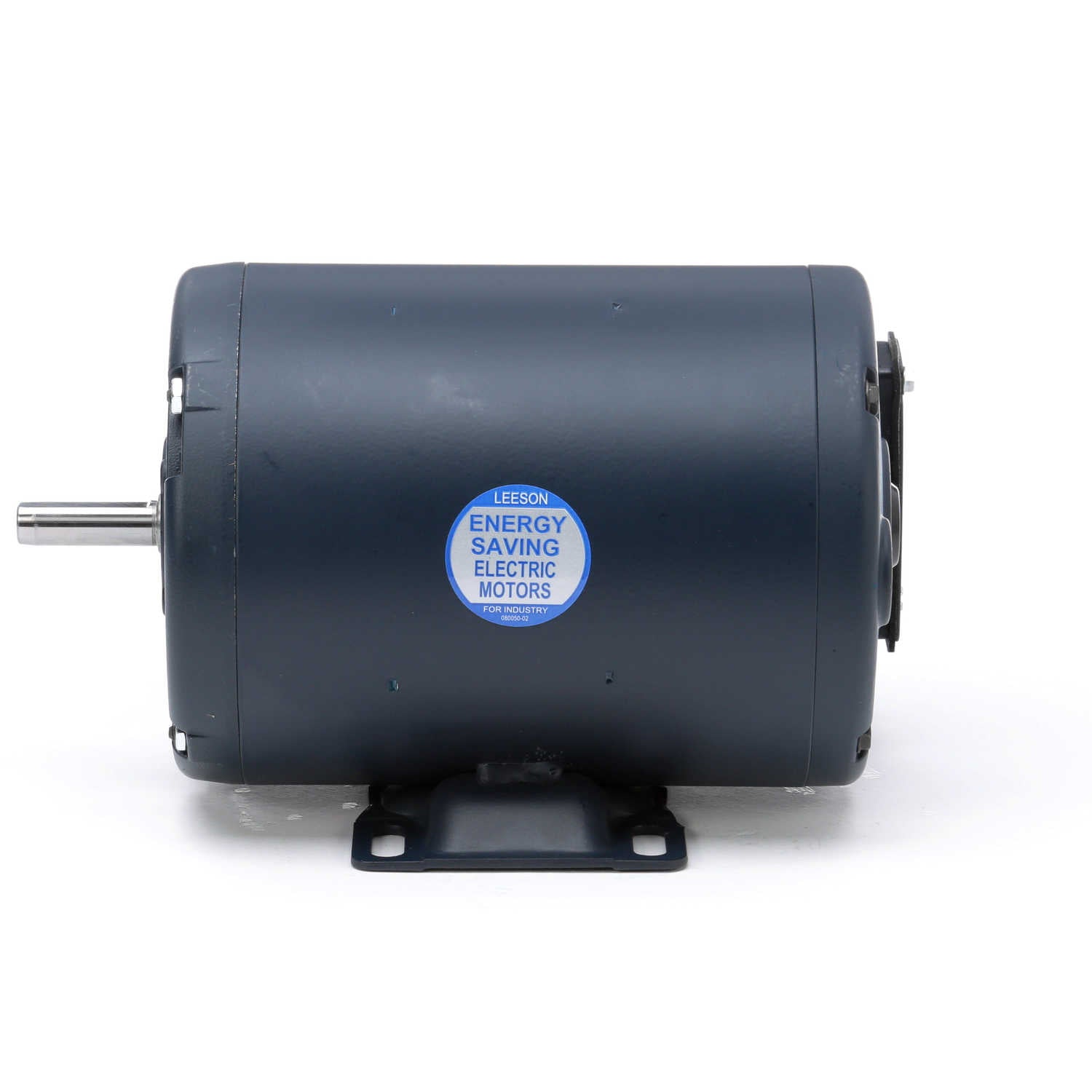

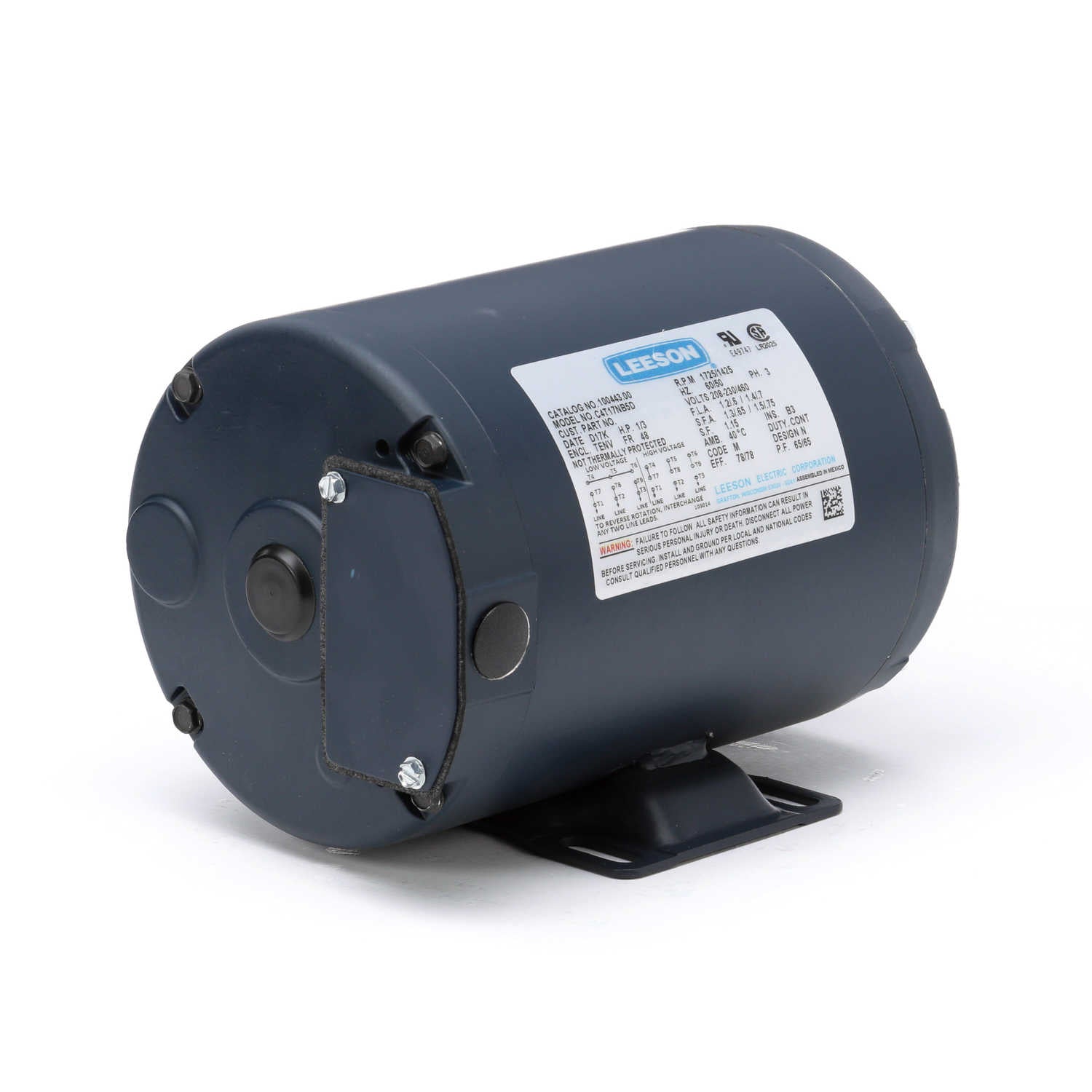

Features
- Standard efficient ratings
- Inverter-rated; Continuous duty
- Class B insulation systems – 42, 48 and 56 frames
- UL recognized and CSA certified
- Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
- Dynamically balanced rotors
- Torques exceed NEMA performance standards
General Specifications
| Model : | C4T17NB5D | Catalog No : | 100443.00 |
| Part Description : | 1/3HP..1725/1425RPM.48.TENV.208-230/460V.3PH.60/50HZ.CONT.NOT.40C.1.15/1.15SF.RIGID.GENERAL PURPOSE.C4T17NB5D | Category : | Totally Enclosed Non-Ventilated (TENV) |
| Stock : | No |
Nameplate Specifications
| Output HP : | 0.33 Hp | Output KW : | 0.25 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/460 V |
| Current : | 1.2/0.60 A | Speed : | 1725 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 78 % | Duty : | Continuous |
| Insulation Class : | B | Design Code : | N |
| KVA Code : | M | Frame : | 48 |
| Enclosure : | Totally Enclosed Non Ventilated | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 43 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Rigid Base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 9.68 in | Frame Length : | 6.00 in |
| Shaft Diameter : | 0.500 in | Shaft Extension : | 1.5 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720004869 |
| Weight : | 20.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 1.20 | 100.0 | 16.00 | 100.0 | 1,745 | 0.00 | 0.0 | 0.33 |
| Break-Down | 0.00 | 0.0 | 80.80 | 505.0 | 0 | 0.00 | 0.0 | 0.33 |
| Locked-Rotor | 8.70 | 725.0 | 75.50 | 472.0 | 0 | 0.00 | 0.0 | 0.33 |
| Pull-Up | 0.00 | 0.0 | 73.90 | 462.0 | 0 | 0.00 | 0.0 | 0.33 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 0.47
- 0.052
- 0.0
- 14.0
- 1,795
- 0.0
- 0.00
- 25 %
- 0.48
- 0.113
- 55.4
- 29.9
- 1,785
- 0.0
- 3.95
- 50 %
- 0.50
- 0.178
- 70.4
- 44.7
- 1,773
- 0.0
- 7.96
- 75 %
- 0.55
- 0.246
- 76.3
- 56.7
- 1,759
- 0.0
- 12.02
- 100 %
- 0.60
- 0.316
- 78.8
- 66.1
- 1,745
- 40.0
- 16.08
- 125 %
- 0.67
- 0.390
- 79.7
- 73.1
- 1,729
- 0.0
- 20.26
- 150 %
- 0.75
- 0.468
- 79.9
- 78.8
- 1,712
- 0.0
- 24.60
