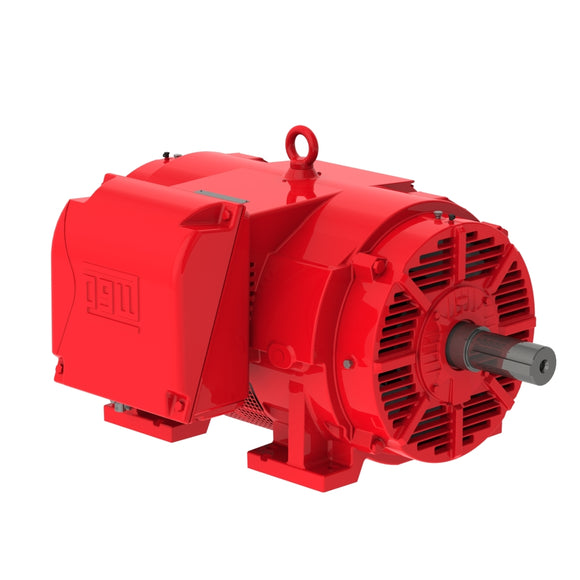

Electric Motors
| Frame | 364/5TS |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3550 rpm |
| Slip | 1.39 % |
| Rated voltage | 230/460 V |
| Rated current | 171/85.3 A |
| L. R. Amperes | 989/495 A |
| LRC | 5.8x(Code F) |
| No load current | 50.4/25.2 A |
| Rated torque | 111 ft.lb |
| Locked rotor torque | 160 % |
| Breakdown torque | 210 % |
| Locked rotor time | 46s (cold) 26s (hot) |
| Moment of inertia (J) | 5.60 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 662 lb |
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 91.0 | 92.4 | 93.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.80 | 0.85 | 0.87 |
| Frame | 364/5TS |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2930 rpm |
| Slip | 2.33 % |
| Rated voltage | 380 V |
| Rated current | 103 A |
| L. R. Amperes | 587 A |
| LRC | 5.7x(Code F) |
| No load current | 24.6 A |
| Rated torque | 134 ft.lb |
| Locked rotor torque | 110 % |
| Breakdown torque | 200 % |
| Locked rotor time | 23s (cold) 13s (hot) |
| Moment of inertia (J) | 5.60 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 662 lb |
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 91.5 | 91.7 | 91.9 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.84 | 0.87 | 0.88 |
| Frame | 364/5TS |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2935 rpm |
| Slip | 2.17 % |
| Rated voltage | 400 V |
| Rated current | 98.8 A |
| L. R. Amperes | 603 A |
| LRC | 6.1x(Code F) |
| No load current | 28.0 A |
| Rated torque | 134 ft.lb |
| Locked rotor torque | 120 % |
| Breakdown torque | 200 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 5.60 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 662 lb |
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 91.7 | 92.4 | 92.4 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.80 | 0.86 | 0.87 |
| Frame | 364/5TS |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2945 rpm |
| Slip | 1.83 % |
| Rated voltage | 415 V |
| Rated current | 95.0 A |
| L. R. Amperes | 618 A |
| LRC | 6.5x(Code G) |
| No load current | 31.0 A |
| Rated torque | 134 ft.lb |
| Locked rotor torque | 130 % |
| Breakdown torque | 200 % |
| Locked rotor time | 28s (cold) 16s (hot) |
| Moment of inertia (J) | 5.60 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 662 lb |
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 91.7 | 92.4 | 92.6 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.77 | 0.85 | 0.87 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | NPT 3" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 3002 203A (ISO 12944 - C2) |
| Grounding Lugs | Double |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
