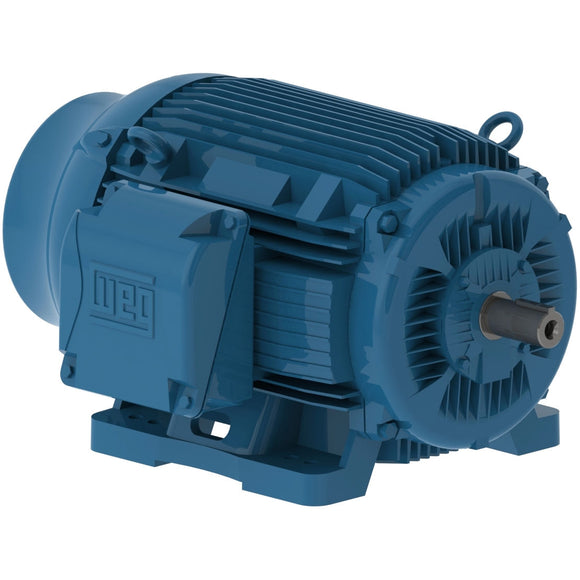

07536ET3E365TS-W22G WEG 75HP Severe Duty Electric Motor, 3600RPM

$8,044.11 USD $9,931.00 USD Save $1,886.89 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 07536ET3E365TS-W22G Barcode: 7909158730841

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 364/5TS
Output 75 HP (55 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 164/81.9 A
L. R. Amperes 1097/549 A
LRC 6.7x(Code G)
No load current 40.0/20.0 A
Rated torque 111 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 857 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  93.6  93.6

Power factor

50% 75% 100%
0.83  0.88  0.90
Frame 364/5TS
Output 60 HP (45 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 80.8 A
L. R. Amperes 525 A
LRC 6.5x(Code G)
No load current 19.0 A
Rated torque 107 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 857 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.2  92.5  94.0

Power factor

50% 75% 100%
0.75  0.85  0.90
Frame 364/5TS
Output 60 HP (45 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 78.5 A
L. R. Amperes 557 A
LRC 7.1x(Code H)
No load current 20.0 A
Rated torque 106 ft.lb
Locked rotor torque 229 %
Breakdown torque 390 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 857 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.5  93.0  94.0

Power factor

50% 75% 100%
0.72  0.83  0.88
Frame 364/5TS
Output 60 HP (45 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 415 V
Rated current 75.7 A
L. R. Amperes 598 A
LRC 7.9x(Code J)
No load current 21.5 A
Rated torque 106 ft.lb
Locked rotor torque 250 %
Breakdown torque 310 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 857 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.8  93.1  94.0

Power factor

50% 75% 100%
0.70  0.82  0.88
Frame 364/5TS
Output 75 HP (55 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2930 rpm
Slip 2.33 %
Rated voltage 380 V
Rated current 100 A
L. R. Amperes 520 A
LRC 5.2x(Code E)
No load current 19.0 A
Rated torque 134 ft.lb
Locked rotor torque 160 %
Breakdown torque 200 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 857 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  93.0  92.4

Power factor

50% 75% 100%
0.86  0.89  0.90
Frame 364/5TS
Output 75 HP (55 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 400 V
Rated current 94.8 A
L. R. Amperes 559 A
LRC 5.9x(Code F)
No load current 20.0 A
Rated torque 134 ft.lb
Locked rotor torque 175 %
Breakdown torque 220 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 857 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  93.0  93.0

Power factor

50% 75% 100%
0.84  0.89  0.90
Frame 364/5TS
Output 75 HP (55 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 415 V
Rated current 91.4 A
L. R. Amperes 594 A
LRC 6.5x(Code G)
No load current 21.5 A
Rated torque 134 ft.lb
Locked rotor torque 190 %
Breakdown torque 240 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
