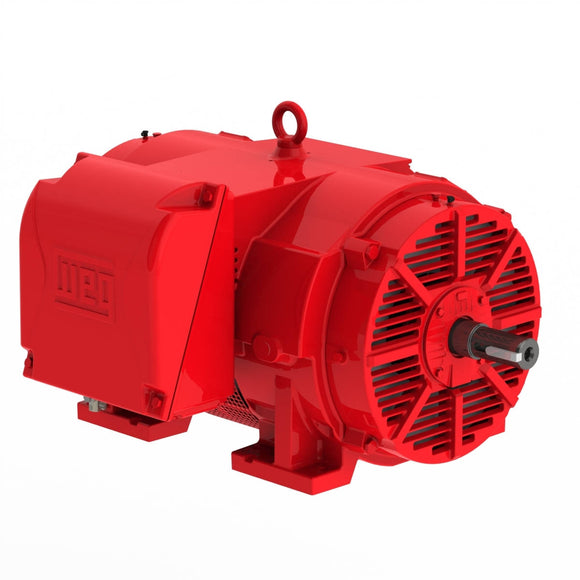

07530OP3OFP365TS-W40 WEG 75HP Fire Pump Electric Motor, 3000RPM

$4,823.45 USD $5,836.00 USD Save $1,012.55 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 07530OP3OFP365TS-W40 Barcode: 7909712322574

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 364/5TS
Output 75 HP (55 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2953 rpm
Slip 1.57 %
Rated voltage 380 V
Rated current 102 A
L. R. Amperes 622 A
LRC 6.1x(Code F)
No load current 23.8 A
Rated torque 133 ft.lb
Locked rotor torque 220 %
Breakdown torque 200 %
Locked rotor time 61s (cold) 34s (hot)
Moment of inertia (J) 7.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 739 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.0  93.0

Power factor

50% 75% 100%
0.82  0.87  0.88
Frame 364/5TS
Output 75 HP (55 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2958 rpm
Slip 1.40 %
Rated voltage 400 V
Rated current 97.0 A
L. R. Amperes 650 A
LRC 6.7x(Code G)
No load current 26.0 A
Rated torque 133 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 55s (cold) 31s (hot)
Moment of inertia (J) 7.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 739 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.0  93.0

Power factor

50% 75% 100%
0.80  0.86  0.88
Frame 364/5TS
Output 75 HP (55 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2962 rpm
Slip 1.27 %
Rated voltage 415 V
Rated current 94.6 A
L. R. Amperes 653 A
LRC 6.9x(Code G)
No load current 28.0 A
Rated torque 133 ft.lb
Locked rotor torque 260 %
Breakdown torque 260 %
Locked rotor time 52s (cold) 29s (hot)
Moment of inertia (J) 7.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 739 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.0  93.0

Power factor

50% 75% 100%
0.77  0.84  0.87

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
