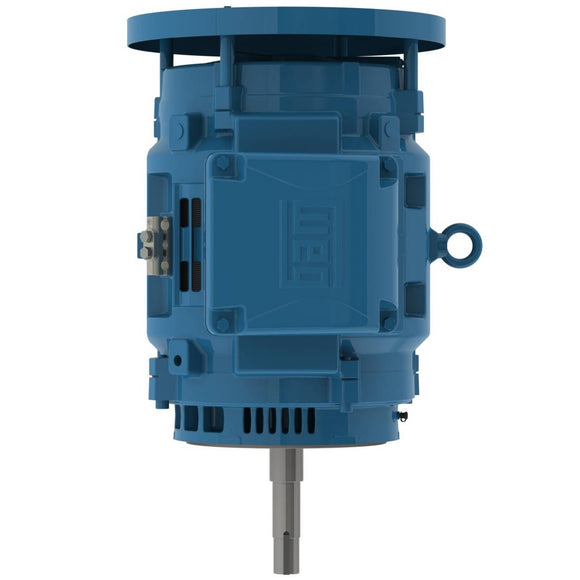

07518OT3V365JPV-W40 WEG 75HP JP Close-Coupled Pump Electric Motor, 1800RPM

$5,938.11 USD $7,331.00 USD Save $1,392.89 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 07518OT3V365JPV-W40 Barcode: 7909492966203

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Frame 364/5JP
Output 75 HP (55 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 200/400 V
Rated current 197/98.3 A
L. R. Amperes 1337/669 A
LRC 6.8x(Code G)
No load current 70.2/35.1 A
Rated torque 221 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 16.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 780 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.0  95.0

Power factor

50% 75% 100%
0.73  0.82  0.85
