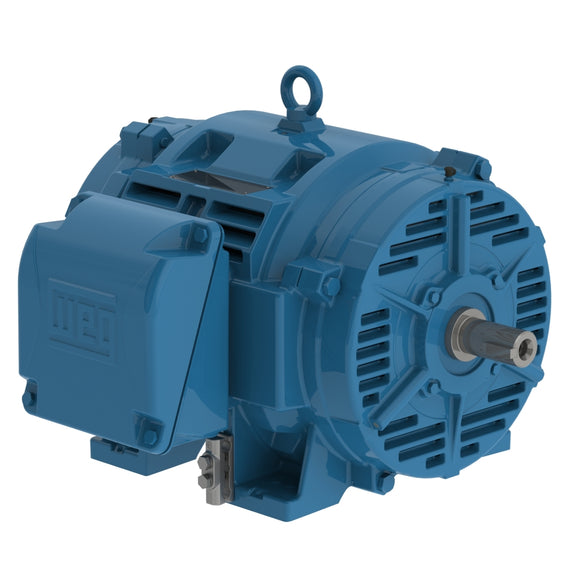

07518OT3E365T-W40 WEG 75HP, General Purpose Electric Motor, 1800RPM

$4,582.98 USD $5,658.00 USD Save $1,075.02 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 07518OT3E365T-W40 Barcode: 7909323344781

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 364/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 171/85.5 A
L. R. Amperes 1163/581 A
LRC 6.8x(Code G)
No load current 61.0/30.5 A
Rated torque 221 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 16.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 771 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.0  95.0

Power factor

50% 75% 100%
0.73  0.82  0.85
Frame 364/5T
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 84.4 A
L. R. Amperes 599 A
LRC 7.1x(Code H)
No load current 28.5 A
Rated torque 213 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 16.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 771 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.8  94.2  94.2

Power factor

50% 75% 100%
0.73  0.82  0.86
Frame 364/5T
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1482 rpm
Slip 1.20 %
Rated voltage 400 V
Rated current 82.1 A
L. R. Amperes 591 A
LRC 7.2x(Code H)
No load current 33.7 A
Rated torque 213 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 16.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 771 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.8  94.2  94.2

Power factor

50% 75% 100%
0.69  0.80  0.84
Frame 364/5T
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1484 rpm
Slip 1.07 %
Rated voltage 415 V
Rated current 80.1 A
L. R. Amperes 609 A
LRC 7.6x(Code J)
No load current 36.1 A
Rated torque 212 ft.lb
Locked rotor torque 250 %
Breakdown torque 280 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 16.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 771 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.8  94.2  94.2

Power factor

50% 75% 100%
0.66  0.77  0.83

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
