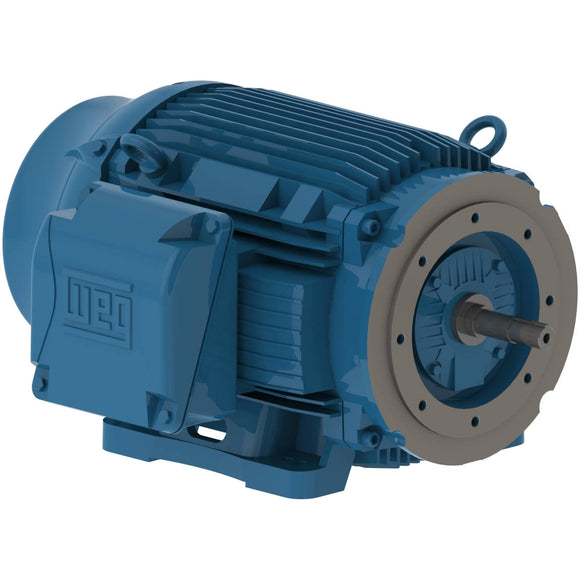

07518ET3E365JM-W22 WEG 75HP JM Close Coupled Pump Electric Motor, 1800RPM

$8,146.17 USD $10,057.00 USD Save $1,910.83 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 07518ET3E365JM-W22 Barcode: 7909018119038

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 364/5JM
Output 75 HP (55 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 174/87.2 A
L. R. Amperes 1116/558 A
LRC 6.4x(Code G)
No load current 66.0/33.0 A
Rated torque 221 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 945 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.0  95.4

Power factor

50% 75% 100%
0.68  0.78  0.83
Frame 364/5JM
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 88.5 A
L. R. Amperes 620 A
LRC 7.0x(Code H)
No load current 33.0 A
Rated torque 213 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 945 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.7  94.2  94.2

Power factor

50% 75% 100%
0.68  0.78  0.82
Frame 364/5JM
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 84.9 A
L. R. Amperes 637 A
LRC 7.5x(Code J)
No load current 35.0 A
Rated torque 213 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 945 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  94.2  94.4

Power factor

50% 75% 100%
0.64  0.75  0.81
Frame 364/5JM
Output 60 HP (45 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 82.7 A
L. R. Amperes 662 A
LRC 8.0x(Code J)
No load current 38.0 A
Rated torque 212 ft.lb
Locked rotor torque 260 %
Breakdown torque 310 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 945 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.5  94.2  94.6

Power factor

50% 75% 100%
0.61  0.73  0.80
Frame 364/5JM
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 106 A
L. R. Amperes 541 A
LRC 5.1x(Code E)
No load current 33.0 A
Rated torque 268 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 945 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  94.1  93.6

Power factor

50% 75% 100%
0.75  0.82  0.84
Frame 364/5JM
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 102 A
L. R. Amperes 571 A
LRC 5.6x(Code F)
No load current 35.0 A
Rated torque 267 ft.lb
Locked rotor torque 200 %
Breakdown torque 220 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 945 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  94.5  94.1

Power factor

50% 75% 100%
0.70  0.80  0.83
Frame 364/5JM
Output 75 HP (55 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 98.7 A
L. R. Amperes 602 A
LRC 6.1x(Code G)
No load current 38.0 A
Rated torque 266 ft.lb
Locked rotor torque 210 %
Breakdown torque 240 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 23.3 sq.ft.lb
Design B
