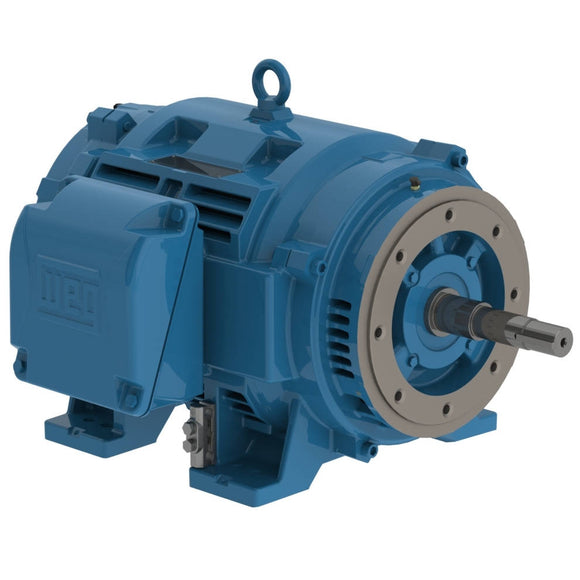

07512OT3E405JP-W40 WEG 75HP JP Close-Coupled Pump Electric Motor, 1200RPM

$7,907.22 USD $9,762.00 USD Save $1,854.78 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 07512OT3E405JP-W40 Barcode: 7909323901809

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 404/5JP
Output 75 HP (55 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1185 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 172/85.9 A
L. R. Amperes 1151/576 A
LRC 6.7x(Code G)
No load current 60.0/30.0 A
Rated torque 332 ft.lb
Locked rotor torque 240 %
Breakdown torque 270 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 31.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 1008 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  94.5  94.5

Power factor

50% 75% 100%
0.72  0.81  0.85
Frame 404/5JP
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 84.8 A
L. R. Amperes 585 A
LRC 6.9x(Code H)
No load current 29.6 A
Rated torque 320 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 31.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 1008 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.3  93.7  93.7

Power factor

50% 75% 100%
0.75  0.83  0.86
Frame 404/5JP
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 81.6 A
L. R. Amperes 571 A
LRC 7.0x(Code H)
No load current 32.1 A
Rated torque 320 ft.lb
Locked rotor torque 250 %
Breakdown torque 280 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 31.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 1008 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.3  93.7  93.7

Power factor

50% 75% 100%
0.71  0.81  0.85
Frame 404/5JP
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 79.5 A
L. R. Amperes 596 A
LRC 7.5x(Code J)
No load current 34.2 A
Rated torque 320 ft.lb
Locked rotor torque 270 %
Breakdown torque 300 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 31.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 1008 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.3  93.7  93.7

Power factor

50% 75% 100%
0.68  0.79  0.84

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
