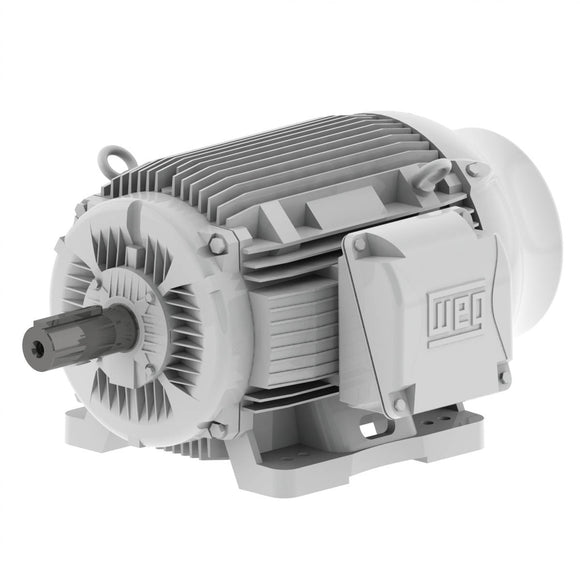

07512ES3EOW444T-W22 WEG 75HP Oil Well Pump Electric Motor, 1200RPM

$12,130.56 USD $14,976.00 USD Save $2,845.44 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 07512ES3EOW444T-W22 Barcode: 7909158757565

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 444/5T
Output 75 HP (55 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1135 rpm
Slip 5.42 %
Rated voltage 208-230/460 V
Rated current 203-184/91.8 A
L. R. Amperes 1198-1083/542 A
LRC 5.9x(Code G)
No load current 88.5-80.0/40.0 A
Rated torque 347 ft.lb
Locked rotor torque 280 %
Breakdown torque 0 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 72.0 sq.ft.lb
Design D
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1686 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.5  89.5

Power factor

50% 75% 100%
0.67  0.77  0.84

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device With
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 9010 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Aluminum
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
