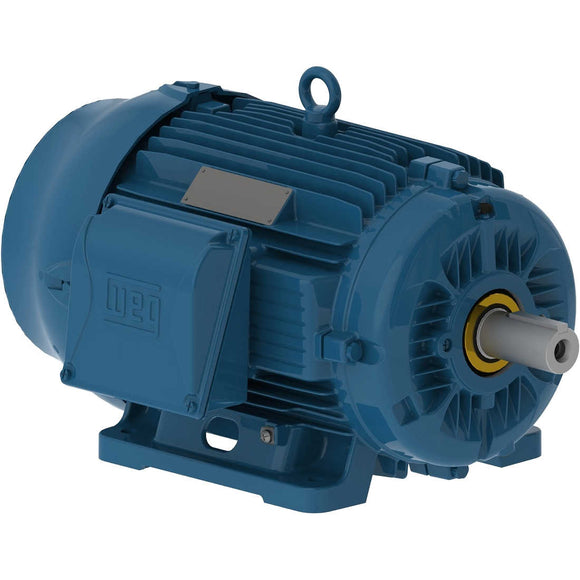

05036ST3HIE326TS-W22 WEG 50HP Severe Duty Electric Motor, 3600RPM

$4,835.70 USD $5,970.00 USD Save $1,134.30 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 05036ST3HIE326TS-W22 Barcode: 7891327137394

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 324/6TS
Output 50 HP (37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 575 V
Rated current 45.4 A
L. R. Amperes 286 A
LRC 6.3x(Code G)
No load current 11.2 A
Rated torque 73.9 ft.lb
Locked rotor torque 240 %
Breakdown torque 229 %
Locked rotor time 63s (cold) 35s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
Approx. weight³ 559 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.0  93.0

Power factor

50% 75% 100%
0.81  0.87  0.88

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System Stainless Steel, at Drive end and Non-drive end
Main terminal box hole NPT 2"
Terminal Block Without
Shaft Locking Device Without
Drain Type T, Threaded
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting According to IEEE-841 (96h)
Joints Seal Molykote
Foot flatness (0.005 pol) 0.127 mm
Fan material Conductive Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 3
