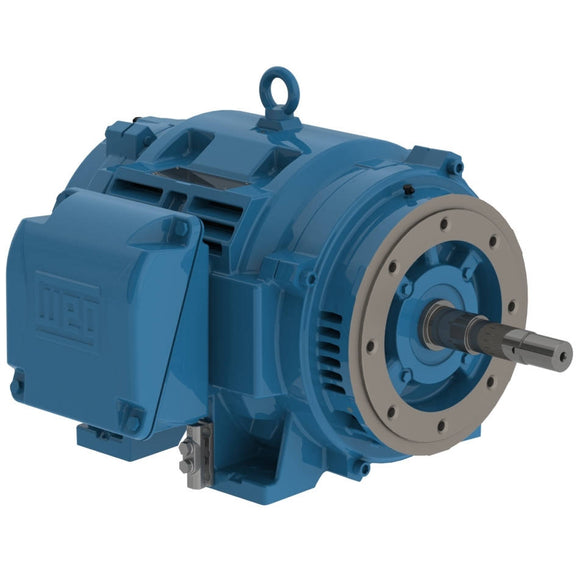

05012OT3E365JP-W40 WEG 50HP JP Close-Coupled Pump Electric Motor, 1200RPM

$6,209.46 USD $7,666.00 USD Save $1,456.54 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 05012OT3E365JP-W40 Barcode: 7909323899311

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 364/5JP
Output 50 HP (37 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1185 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 116/58.1 A
L. R. Amperes 779/389 A
LRC 6.7x(Code G)
No load current 40.8/20.4 A
Rated torque 222 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 23.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 820 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  94.1  94.1

Power factor

50% 75% 100%
0.74  0.82  0.85
Frame 364/5JP
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 57.1 A
L. R. Amperes 400 A
LRC 7.0x(Code H)
No load current 20.2 A
Rated torque 213 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 23.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 820 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.5  92.9  92.9

Power factor

50% 75% 100%
0.74  0.83  0.86
Frame 364/5JP
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 54.8 A
L. R. Amperes 395 A
LRC 7.2x(Code H)
No load current 21.7 A
Rated torque 213 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 23.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 820 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.5  92.9  92.9

Power factor

50% 75% 100%
0.70  0.80  0.85
Frame 364/5JP
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 53.5 A
L. R. Amperes 412 A
LRC 7.7x(Code J)
No load current 23.0 A
Rated torque 213 ft.lb
Locked rotor torque 250 %
Breakdown torque 290 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 23.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 820 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.5  92.9  92.9

Power factor

50% 75% 100%
0.68  0.79  0.84

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
