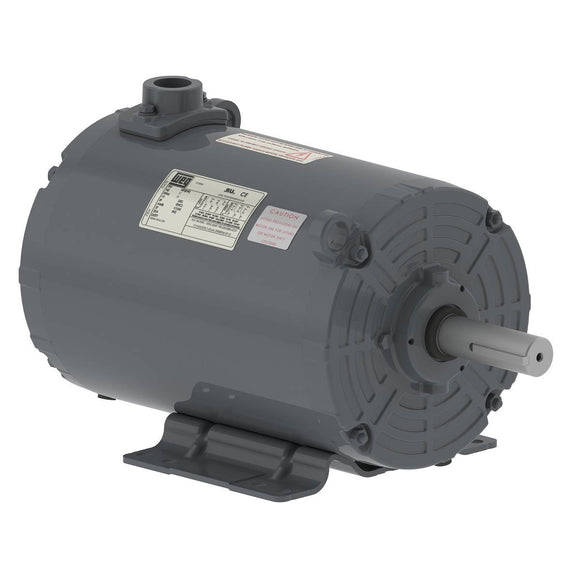

01036AP3EGD184TZ-S WEG 7.5/10HP Grain Dryer Electric Motor, 3600RPM

$999.47 USD $1,123.00 USD Save $123.53 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 01036AP3EGD184TZ-S Barcode: 7909265574932

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Electric Motors

Frame 182/4TZ
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 208-230/460 V
Rated current 20.0-18.1/9.04 A
L. R. Amperes 190-172/85.9 A
LRC 9.5x(Code L)
No load current 0.000-8.79/4.40 A
Rated torque 11.0 ft.lb
Locked rotor torque 320 %
Breakdown torque 440 %
Locked rotor time 18s (cold) 10s (hot)
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-3
Rotation¹ CCW
Approx. weight³ 82.9 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.4  89.8  89.8

Power factor

50% 75% 100%
0.67  0.79  0.85

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Superior
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermostat - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6206 ZZ   6205 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
269 lb  352 lb
