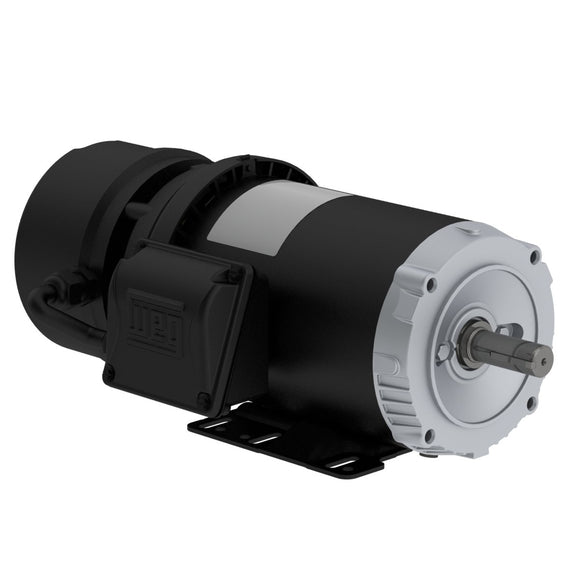

Features
- 1.15 Service Factor
- Manual Release Lever
- AC Brake
- Inverter Rated
- IP55 Enclosure
- Dual Frequency (50/60Hz)
Applications
- Conveyors
- Door Operators
- Packaging Equipment
- Unit Handling
Technical Data
Electric Motors
| Frame | 213/5TC |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1760 rpm |
| Slip | 2.22 % |
| Rated voltage | 208-230/460 V |
| Rated current | 27.0-24.4/12.2 A |
| L. R. Amperes | 189-171/85.4 A |
| LRC | 7.0x(Code H) |
| No load current | 9.56-11.1/5.54 A |
| Rated torque | 29.4 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 300 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 1.07 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 169 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 91.0 | 91.0 | 91.7 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.67 | 0.78 | 0.84 |
| Frame | 213/5TC |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1465 rpm |
| Slip | 2.33 % |
| Rated voltage | 190/380 V |
| Rated current | 22.4/11.2 A |
| L. R. Amperes | 170/85.1 A |
| LRC | 7.6x(Code J) |
| No load current | 10.9/5.46 A |
| Rated torque | 26.5 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 320 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 1.07 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 57.0 dB(A) |
| Approx. weight³ | 169 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 90.1 | 90.7 | 90.1 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.64 | 0.76 | 0.83 |
| Frame | 213/5TC |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1470 rpm |
| Slip | 2.00 % |
| Rated voltage | 220/415 V |
| Rated current | 20.6/10.9 A |
| L. R. Amperes | 179/94.8 A |
| LRC | 8.7x(Code L) |
| No load current | 12.1/6.43 A |
| Rated torque | 26.4 ft.lb |
| Locked rotor torque | 320 % |
| Breakdown torque | 390 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 1.07 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 57.0 dB(A) |
| Approx. weight³ | 169 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 88.7 | 90.2 | 90.3 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.56 | 0.69 | 0.78 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Aluminum |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Brake input Voltage | 208-230/460//190/380 V |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
