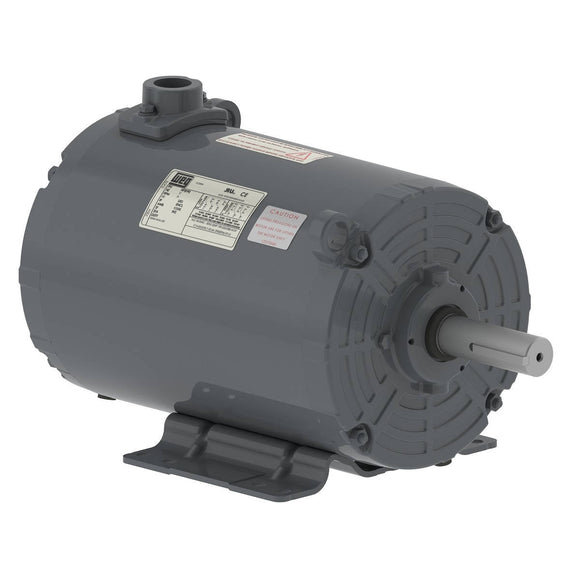

00456AP3EGD182Z-S WEG 3/4.5HP Grain Dryer Electric Motor, 3600RPM

$736.03 USD $827.00 USD Save $90.97 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00456AP3EGD182Z-S Barcode: 7909265700959

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3540 rpm
Slip 1.67 %
Rated voltage 208-230/460 V
Rated current 9.45-8.54/4.27 A
L. R. Amperes 104-93.9/47.0 A
LRC 11.0x(Code N)
No load current 0.000-5.70/2.85 A
Rated torque 4.39 ft.lb
Locked rotor torque 380 %
Breakdown torque 550 %
Locked rotor time 18s (cold) 10s (hot)
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-3
Rotation¹ CCW
Approx. weight³ 52.4 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
79.8  84.2  86.2

Power factor

50% 75% 100%
0.53  0.66  0.75

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 7031 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermostat - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6206 ZZ   6205 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM
