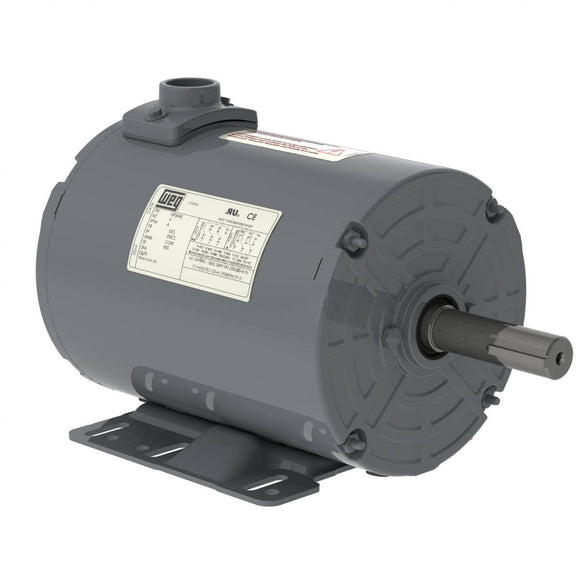

00336AP3EGD145TZ-S WEG 1.5/3HP Grain Dryer Electric Motor, 3600RPM

$667.50 USD $750.00 USD Save $82.50 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00336AP3EGD145TZ-S Barcode: 7909265722869

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 143/5TZ
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3550 rpm
Slip 1.39 %
Rated voltage 208-230/460 V
Rated current 5.33-4.82/2.41 A
L. R. Amperes 61.3-55.4/27.7 A
LRC 11.5x(Code R)
No load current 0.000-3.47/1.73 A
Rated torque 2.19 ft.lb
Locked rotor torque 450 %
Breakdown torque 620 %
Locked rotor time 27s (cold) 15s (hot)
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-3
Rotation¹ CCW
Approx. weight³ 36.2 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
69.5  76.3  79.7

Power factor

50% 75% 100%
0.51  0.63  0.72

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Superior
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermostat - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6205 ZZ   6203 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
100 lb  136 lb
