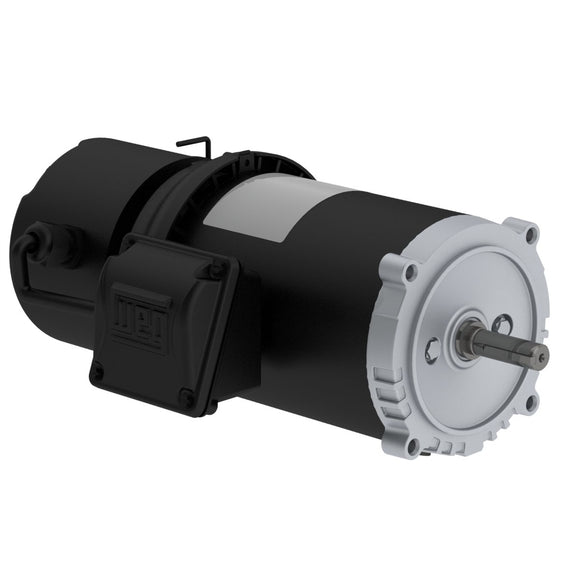

Features
- 1.15 Service Factor
- Manual Release Lever
- AC Brake
- Inverter Rated
- IP55 Enclosure
- Dual Frequency (50/60Hz)
Applications
- Conveyors
- Door Operators
- Packaging Equipment
- Unit Handling
Technical Data
Electric Motors
| Frame | 56C |
|---|---|
| Output | 1 HP (0.75 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1765 rpm |
| Slip | 1.94 % |
| Rated voltage | 208-230/460 V |
| Rated current | 3.25-2.94/1.47 A |
| L. R. Amperes | 28.0-25.3/12.6 A |
| LRC | 8.6x(Code M) |
| No load current | 1.53-1.78/0.890 A |
| Rated torque | 2.94 ft.lb |
| Locked rotor torque | 280 % |
| Breakdown torque | 300 % |
| Locked rotor time | 34s (cold) 19s (hot) |
| Moment of inertia (J) | 0.1232 sq.ft.lb |
| Design | B |
|---|---|
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 52.0 dB(A) |
| Approx. weight³ | 47.6 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 82.5 | 84.0 | 85.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.52 | 0.66 | 0.75 |
| Frame | 56C |
|---|---|
| Output | 1 HP (0.75 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1450 rpm |
| Slip | 3.33 % |
| Rated voltage | 190/380 V |
| Rated current | 3.40/1.70 A |
| L. R. Amperes | 22.1/11.0 A |
| LRC | 6.5x(Code J) |
| No load current | 1.76/0.879 A |
| Rated torque | 3.57 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 270 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 0.1232 sq.ft.lb |
| Design | B |
|---|---|
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 49.0 dB(A) |
| Approx. weight³ | 47.6 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 82.2 | 83.7 | 82.9 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.62 | 0.74 | 0.81 |
| Frame | 56C |
|---|---|
| Output | 1 HP (0.75 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1460 rpm |
| Slip | 2.67 % |
| Rated voltage | 220/415 V |
| Rated current | 3.06/1.62 A |
| L. R. Amperes | 22.9/12.2 A |
| LRC | 7.5x(Code K) |
| No load current | 1.86/0.988 A |
| Rated torque | 3.55 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 330 % |
| Locked rotor time | 28s (cold) 16s (hot) |
| Moment of inertia (J) | 0.1232 sq.ft.lb |
| Design | B |
|---|---|
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 49.0 dB(A) |
| Approx. weight³ | 47.6 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 80.9 | 83.5 | 83.7 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.55 | 0.68 | 0.77 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1/2" |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Aluminum |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Brake input Voltage | 208-230/460//190/380 V |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
